All stock codes associated to this product
SCL500RMI1UNC, 4802920, UPAPCSCL500RMI1UNC, UPAPC-SCL500RMI1UNC, 731304402565

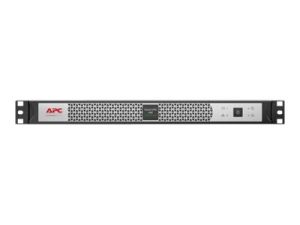

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, Network Card, Short Depth
Smart-UPS
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Smart-UPSâ„¢ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
Features
Keep your sensitive devices powered with a backup of up to 2.70 minute at full load
500 VA load capacity - work without any interruption during power outages
Prevent critical data loss by staying powered during a blackout with up to 400 W load capacity
Controls/Indicators
| Status Indicators | - Disconnected battery notification
- Battery failure notification
Status Indicators:
|
Interfaces/Ports
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Software Included | Powerchute Business Edition |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 1.97 km |
| Maximum Storage Elevation | 14.76 km |
| Sound Emission (A-Weighted) | 45 dB(A) |
Management
| Network Management | USB |
| Alarm | On Battery |
| Low Battery |
| Overload |
Technical Information
| Application/Usage | Mission Critical Equipment |
| IT Equipment |
| Switch |
| Server |
| Router |
| Rack Server |
| POS Terminal |
| Network Hub |
| Network Device |
| Business |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Transfer Time | 10 ms |
| Receptacle Detail | 4 x IEC 60320 C13 |
Physical Characteristics
| Weight (Approximate) | 4.10 kg |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 232 mm |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Battery Energy | 108 kJ |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SCL500RMI1UNC |
| Manufacturer Website Address | https://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 500VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Product Series | SCL |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 510 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 208 V AC - 253 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 500 VA |
