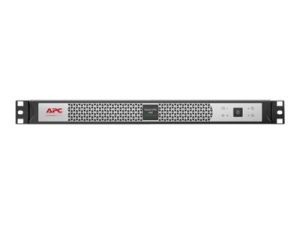

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartConnect Port, Short Depth
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Features
Experience higher efficiency with lower energy cost
Up to 2.70 minute runtime on full load to preserve critical data from power shortage interruptions
500 VA load capacity provides sufficient backup during power failures
400 W load capacity - backup power for your valuable electronics
Controls/Indicators
| Status Indicators | Status Indicators:
- Disconnected battery notification
- Battery failure notification
|
Interfaces/Ports
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Software Included | APC Powerchute Business Edition |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 2 km |
| Maximum Storage Elevation | 15 km |
| Sound Emission (A-Weighted) | 45 dB(A) |
Management
| Network Management | SmartConnect |
| Alarm | On Battery |
| Low Battery |
| Overload |
Battery Information
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Battery Energy | 108 kJ |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
Physical Characteristics
| Weight (Approximate) | 4.06 kg |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 232 mm |
| Product Color | Black |
| Silver |
| Color Family | Multicolor |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | SCL500RMI1UC |
| Manufacturer Website Address | https://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 500VA Rack/Tower UPS |
| Product Line | Smart-UPS |
| Product Series | SCL |
| Brand Name | APC by Schneider Electric |
Power Description
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 510 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 208 V AC - 253 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 63 Hz |
| Load Capacity (VA) | 500 VA |
Technical Information
| Application/Usage | Server |
| Switch |
| Router |
| POS Terminal |
| Network Hub |
| Network Device |
| Mission Critical Equipment |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Number of Battery &Surge Outlets | 4 |
| Transfer Time | 10 ms |
| Receptacle Detail | 4 x IEC 60320 C13 |
