U70+

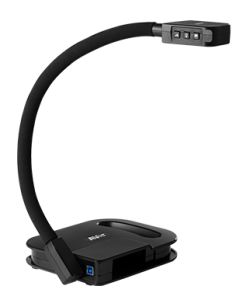

Aver U70+ USB Document Camera
Simple. Powerful. Affordable.
The easiest plug-n-play USB document with premium features has arrived. The
U70 produces an extraordinary, 4K quality visual experience while still
maintaining its simplicity.
Don't miss a pixel
The U70+, with its built in 13MP camera with 16x digital zoom, delivers best
in class pixel performance capturing full resolution that enables vibrant,
ultra-clear images.
A whole new level of speed
Add USB power and you've got a USB document camera that super speeds
everything to and from its connected device providing a lag-free streaming
experience.
Smart tools are handy tools
Whether you're doing a live demonstration or livestreaming, leverage U70+'s
embedded built-in LED and microphone to spotlight your subject and listen in on
the learning experience.
Integrate to collaborate
Use U70+'s free Sphere2 & ClassSend software to inspire innovative lesson
creation and build classroom engagement. It's the bridge that connects you and
your document camera to your students.
Specifications
|
Image |
|
|
Sensor |
1/3.06"
CMOS |
|
Pixel
count |
13
megapixels |
|
TV
lines |
1400 (8MP) / 1100 (2MP)
/ 800 (SXGA/720P/XGA) |
|
Frame
rate |
True 4K @ 30fps / True
HD @ 60fps |
|
White
balance |
Auto /
Manual |
|
Exposure |
Auto /
Manual |
|
USB
output |
4160x3120, 3840x2160,
1920x1080, 1280x1024, 1280x720, 1024x768, 800x600, 640x480, 640x360,
320x240 |
|
Optics |
|
|
Focus |
Auto |
|
Shooting
area |
Max. 20.8" x 15.5"
(530mm x 396mm @ max height)
*at 16:9, shooting area 21.4" x
12.0"
*at 5:4, shooting area 19.6" x 15.6" |
|
Zooming |
16X digital
zoom |
|
Button
functions |
|
|
Snapshot |
Take a snapshot onto
AVer software |
|
Rotate |
Rotate image (via AVer
software only) |
|
LED |
Turns on the LED
light |
|
Zoom
in |
Digitally zoom into
image (via AVer software only) |
|
AF |
Initiates the auto
focus |
|
Zoom
out |
Digitally zoom out of
image (via AVer software only) |
|
Compatibility |
|
|
Operating
systems |
Windows 7 (32/64 bit),
Windows 8 (32/64 bit), Windows 10 (32/64 bit), Mac OS X 10.10 or above
(Intel based), Chrome OS 29 or above |
|
AVer
software |
AVer A+ software suite
(Sphere 2), Sphere Lite (for Chromebook) |
|
Interactive whiteboard
compatibility |
Yes with AVerVision
Flash plug-in |
|
Power |
|
|
Power
source |
Powered from USB
connection |
|
Consumption |
4.0 Watts (lamp
on)@USB3.0;
3.3Watts (lamp off)@USB3.0
2.5 Watts (lamp
on)@USB2.0;
1.8Watts (lamp off)@USB2.0 |
|
Lighting |
|
|
Lamp
type |
LED
light |
|
Input/Output
connections |
|
|
USB |
USB3.0 port (functions
as PC connectivity and Power) |
|
MIC |
Built
in |
|
Dimension |
|
|
Operating |
9.1" x 12.2" x 18.4"
233mm x 312mm x 468mm (+/-2mm include rubber foot) |
|
Folded |
9.5" x 7.3" x 1.7"
242mm x 187.5mm x 44mm (+/-2mm include rubber foot) |
|
Weight |
3.7 lbs
(1.7kg) |
|
Optional
accessories |
|
|
Anti-glare
sheet |
Part number: PANTIGLA1
(A5 size 8.26" x 5.84") |
|
Package
contents |
U70+, 4.92' (1.5m) USB3.0 cable, Warranty card, Quick
guide |
