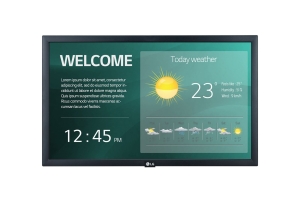

LG 22SM3G-B 22" Standard Signage
Key Features
- Brightness(Typ.) : 250 cd/m
- Bezel : 16.3mm
- Depth : 53.8mm
- Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
- USB Plug & Play, Built-in Wi-Fi
22" Signage with More Utility for Commercial
Space
22SM3G delivers information and performs guide with more effective ways in
various commercial space, which provides more convenient solution thanks to its
upgraded webOS platform

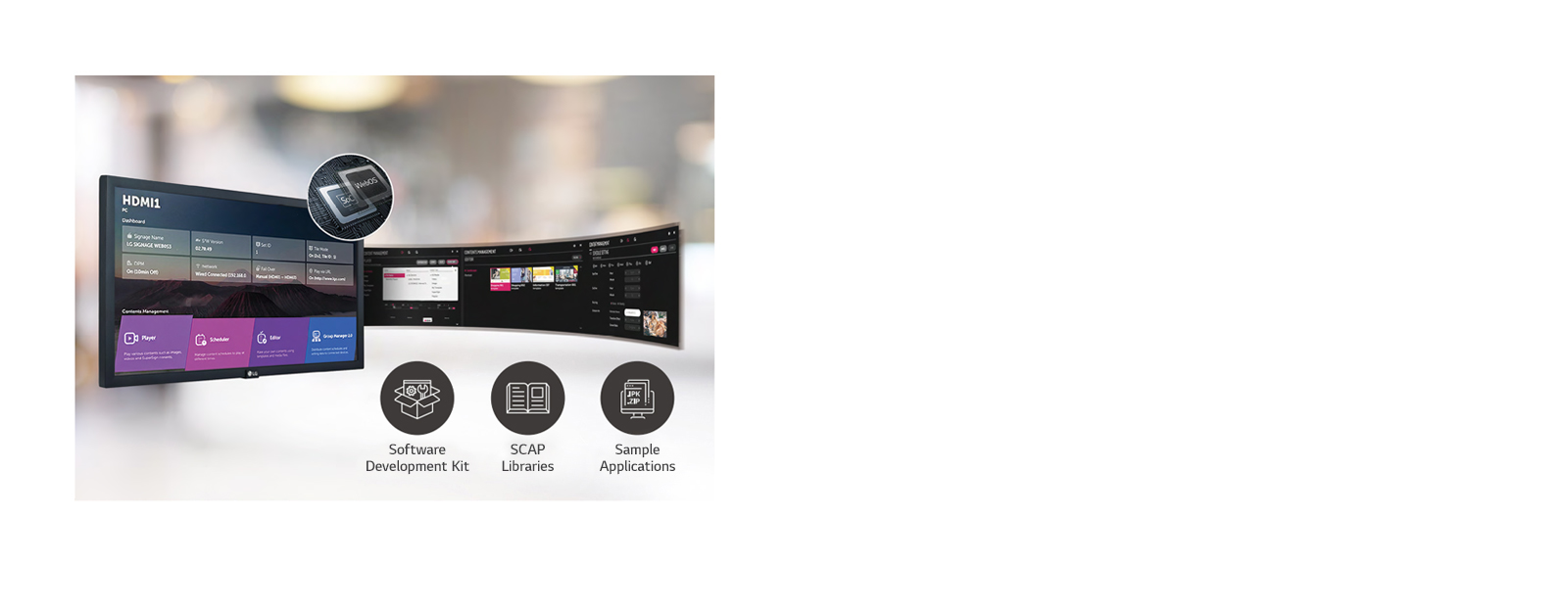

SMART SIGNAGE PLATFORM | High Performance SoC with
webOS
Built-in Quad Core SoC can execute several tasks at once while providing
smooth content playback without the need for a media player. Also, LG webOS
smart signage platform enhances user convenience with intuitive GUI and simple
app development tools.

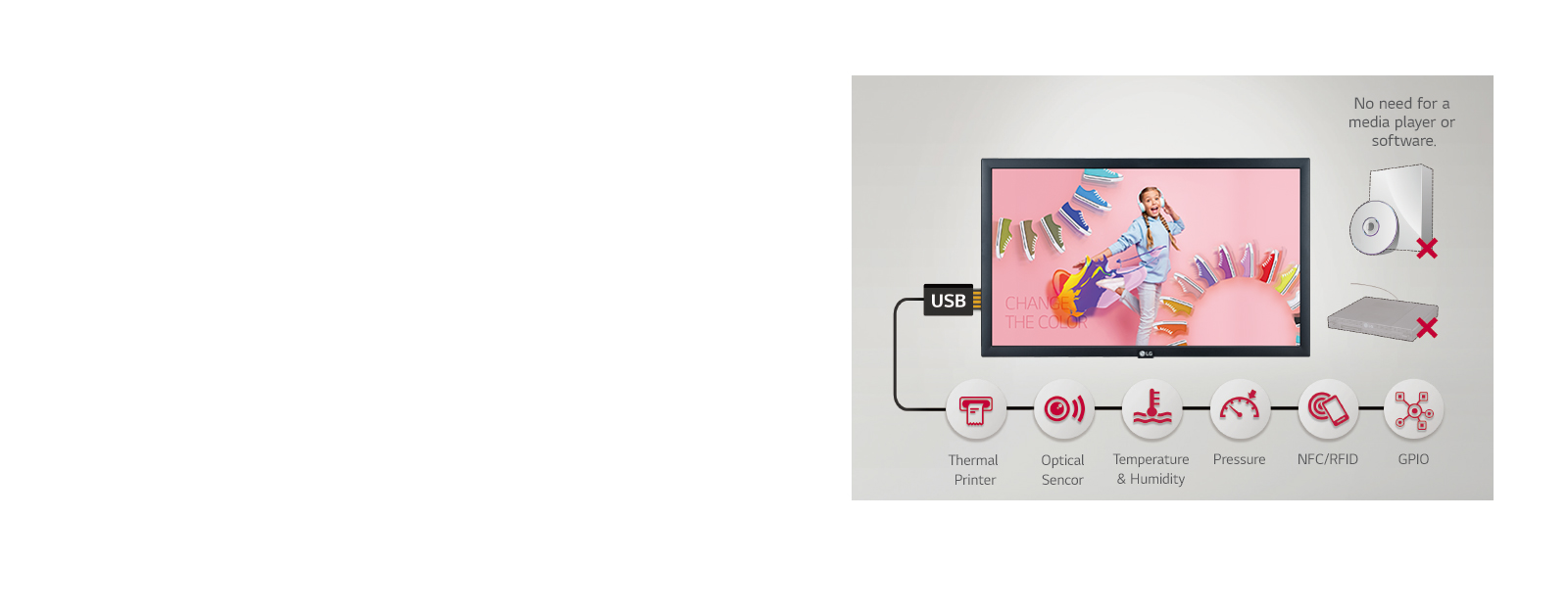

SMART SIGNAGE PLATFORM | Various Sensor
Applications
LG webOS smart signage platform easily supports connections with external
sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The
overall cost for maintenance is reduced as there's no need to purchase
additional software or media players.

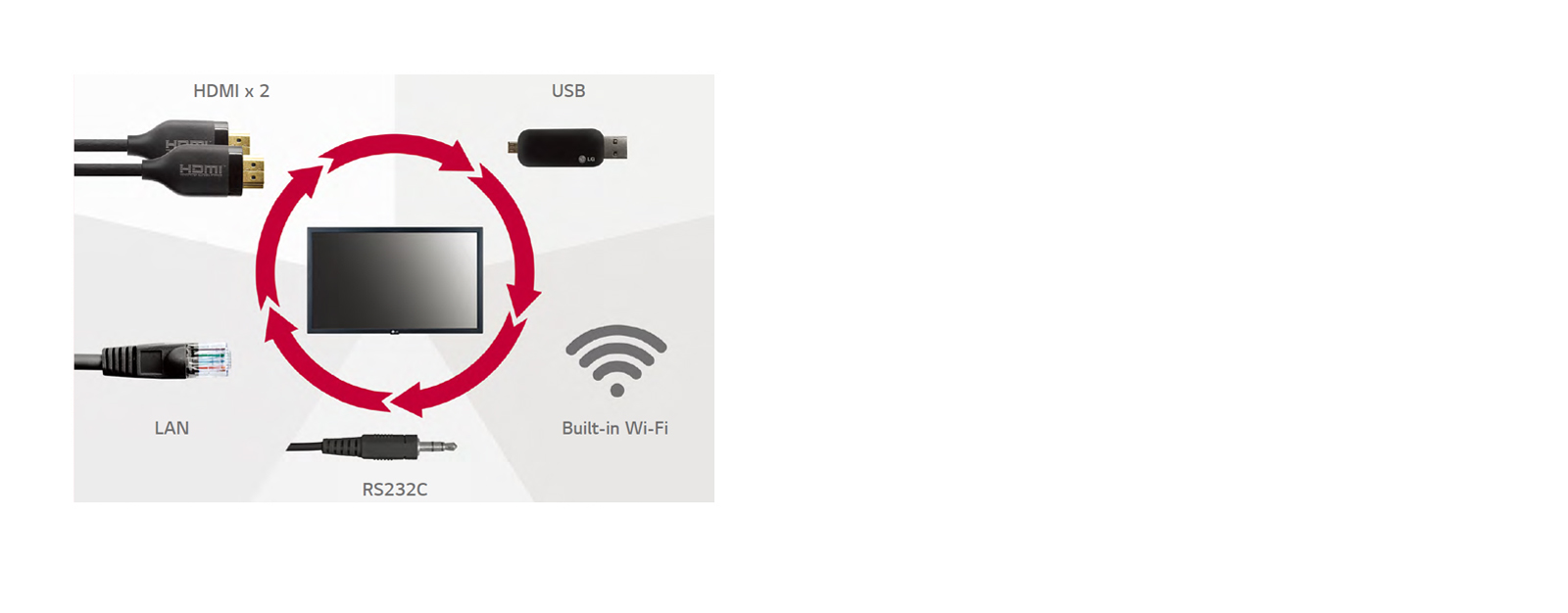

SMART SIGNAGE PLATFORM | A Wide Range of
Interfaces
Through its diverse interfaces, users can connect the display with various
sources for optimal use. Also, the failover function supports users preparing
backup sources in case an unexpected error occurs.

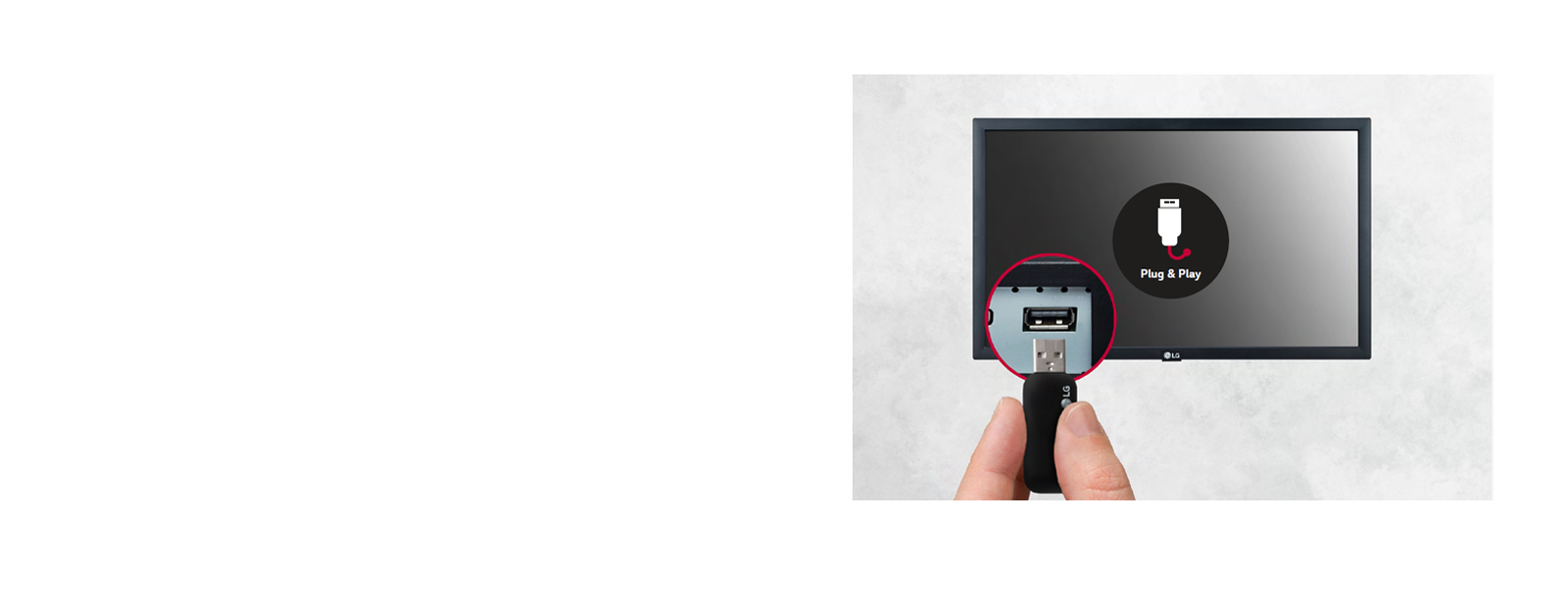

SMART SIGNAGE PLATFORM | USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content
playback using a USB.
SMART SIGNAGE PLATFORM
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi
network.
Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons
and information in real-time.
Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for
mobile devices.
OPERATIONAL EFFICIENCY | Remote Monitoring and
Control
Through the Control Manager, the embedded web monitoring solution, you can
control and monitor the status of multiple 22SM3G displays in different
locations in real-time. It is available on internet-connected devices, allowing
you to flexibly and rapidly respond to emergency situations anywhere.

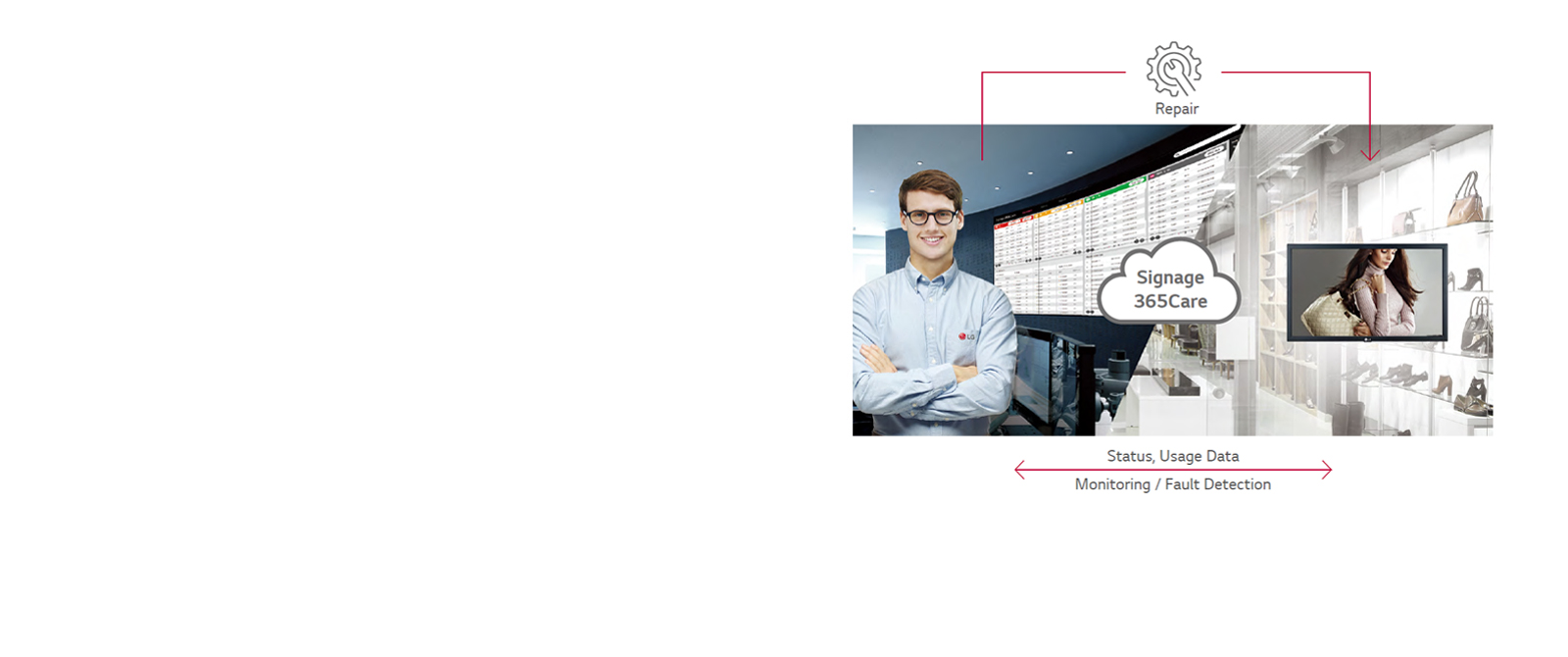

OPERATIONAL EFFICIENCY | Real-time Care Service with LG
Signage365Care
The maintenance gets easier and faster with the optional service
Signage365Care*, a cloud service solution provided by LG service. It remotely
manages status of displays in client workplaces for fault diagnosis and
remote-control services, ensuring stable operation of the clients
business.
Specifications
|
Panel
|
|
|
Screen
Size |
21.5" |
|
Panel
Technology |
IPS |
|
Native
Resolution |
1,920 x 1,080
(FHD) |
|
Brightness |
250 nit
(Typ.) |
|
Contrast
Ratio |
1,000:1 |
|
Dynamic
CR |
400,000:1 |
|
Color
Gamut |
BT.709
95% |
|
Viewing Angle(H x
V) |
178 x
178 |
|
Color
Depth |
6bit, 16.7Million
Colors |
|
Response
Time |
14ms (G to
G) |
|
Surface
Treatment(Haze) |
25% |
|
Operation Hours
(Hours/Day) |
16/7 |
|
Landscape |
Yes |
|
Connectivity
|
|
|
Input - Digital -
HDMI |
Yes(2),
HDCP2.2 |
|
Input - Audio
In |
Yes(1) |
|
Input - External
Control - RS232C IN |
Yes(1),
Phone-jack |
|
Input - External
Control - RJ45(LAN) |
Yes(1) |
|
Input - External
Control - IR IN |
Yes(1),
Phone-jack |
|
Input -
USB |
USB2.0 Type
A(1) |
|
Mechanical
Specification |
|
|
Bezel
Color |
Black |
|
Bezel
Width |
Even Bezel
16.3mm |
|
Weight(Head) |
3.34
kg |
|
Monitor Dimension(W x H
x D) |
510.3 x 302.1 x
53.8mm |
|
VESA Standard Mount
Interface |
100 x
100 |
|
Key
Feature |
|
|
HW - Internal
Memory |
8GB |
|
HW - Wi-Fi -
Built-in |
Yes |
|
HW - Sensor -
Temperature Sensor |
Yes |
|
HW - Local Key
Operation |
Yes |
|
SW - webOS
ver. |
webOS
4.1 |
|
SW - Embedded CMS -
Local Contents Scheduling |
Yes |
|
SW - Embedded CMS -
Group Manager |
Yes |
|
SW - USB Plug &
Play |
Yes |
|
SW - Fail
over |
Yes |
|
SW - Background Image -
Booting Logo Image |
Yes |
|
SW - Background Image -
No Signal Image |
Yes |
|
SW - Multi-screen -
PIP |
Yes |
|
SW - Multi-screen -
PBP |
Yes(2) |
|
SW - Screen
Share |
Yes |
|
SW - Video
Tag |
Yes(2) |
|
SW - Play via
URL |
Yes |
|
SW - Gapless
Playback |
Yes |
|
SW - Setting Data
Cloning |
Yes |
|
SW -
SNMP |
Yes |
|
SW - ISM
Method |
Yes |
|
SW - Status
Mailing |
Yes |
|
SW - Control
Manager |
Yes |
|
SW - 3rd Party
Compatibility - Crestron Connected |
Yes (Network Based
Control) |
|
SW - Smart Energy
Saving |
Yes |
|
SW - PM
mode |
Yes |
|
SW - Wake on
LAN |
Yes |
|
SW -
Beacon |
Yes |
|
SW -
HDMI-CEC |
Yes (Compatibility may
differ by equipment.) |
|
SW - SI Server
Setting |
Yes |
|
SW -
webRTC |
Yes |
|
SW -
Pro:Idiom |
Yes |
|
Environment
Conditions |
|
|
Operation
Temperature |
0 C to 40
C |
|
Operation
Humidity |
10 % to 80
% |
|
Power
|
|
|
Power
Supply |
AC 100-240V~,
50/60Hz |
|
Power
Type |
Built-In
Power |
|
Power Consumption
|
|
|
Typ. |
30W |
|
Max. |
33W |
|
BTU (British Thermal
Unit) |
7.17(Typ),
7.89(Max) |
|
Sound
|
|
|
Speaker |
Yes(1W x
2EA) |
|
Certification
|
|
|
Safety |
CB /
NRTL |
|
EMC |
FCC Class "A" /
CE |
|
ErP |
Yes (EU
Only) |
|
Software
Compatibility |
|
|
SuperSign
CMS |
Yes |
|
SuperSign Control /
Control+ |
Yes /
Yes |
|
SuperSign
WB |
Yes |
|
SuperSign Media
Editor |
Yes |
|
Signage 365
Care |
Yes (The availability
can differ by region.) |
|
Accessory
|
|
|
Basic |
Remote Controller,
Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR
Sheet |
