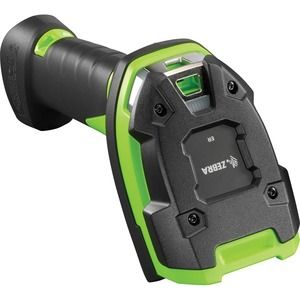

DS3678: RUGGED, AREA IMAGER, EXTENDED RANGE, CORDLESS, FIPS, INDUSTRIAL GREEN, VIBRATION MOTOR

Unstoppable performance for extended range 1D/2D barcode scanning

Every day, workers in your warehouse scan thousands of barcodes to ensure order accuracy and on-time delivery. Their productivity depends on the quality of the scanner you put in their hands. If your workers need to capture 1D and 2D barcodes near and far, with the corded DS3608-ER and cordless DS3678-ER scanner, you can give them the best - unmatched rugged design, unmatched scanning performance and unrivaled manageability. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode displayed on a screen or printed on a label in virtually any condition, nearer and farther than any scanner in this class - from 3 in./7.6 cm to as far as 70 ft./21.4 m away. The ultra-rugged design is practically indestructible - ideal for punishing environments. The DS3608-ER/DS3678-ER couldn't be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-ER is loaded with Zebra-only features that put it in a class of its own. The DS3608-ER/DS3678-ER - the unstoppable performance you need to maximize workforce productivity and throughput in your operations.

Superior scanning range
The advanced imager reads 1D and 2D barcodes printed on a label up to 60 percent closer and 35 percent farther than similar models in this class, with an extraordinary scanning range from 3 in. to 70 ft. (7.6 cm to 21.4 m). Now, one scanner can easily read barcodes on a picklist in hand and on the uppermost shelves of your warehouse racks, as well as extra-wide codes just a hands-length away - even if they are under shrinkwrap, damaged, dirty or poorly printed. The result? Workers can capture barcodes as fast as they can pull the trigger for first-time every time scanning - and extraordinary productivity.

Ultra-rugged - the most indestructible design in its class
The DS3608-ER/DS3678-ER is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-ER/DS3678-ER is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. The DS3608-ER/DS3678-ER operates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray proof and waterproof to IP67 - they can be sprayed down with jetting water and even submersed in water.

Easy management with our complimentary industry-best tools
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS).

Features
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Network &Communication
BluetoothYes
Power Description
Power SourceBattery
Miscellaneous
Additional Information

USB Cable separate

Application/UsageWarehouse
Manufacturing
Industrial
Environmentally FriendlyYes
Ingress Protection (IP) RatingIP65
IP67
Technical Information
Barcode Symbology Supported

    1D:

    • Code 39
    • Code 128
    • Code 93
    • Codabar/NW7
    • Code 11
    • MSI Plessey
    • UPC/EAN, I 2 of 5
    • Korean 3 of 5
    • GS1 DataBar
    • Base 32 (Italian Pharma)

    2D:

    • PDF417
    • Micro PDF417
    • Composite Codes
    • TLC-39
    • Aztec
    • DataMatrix
    • MaxiCode
    • QR Code
    • Micro QR
    • Chinese Sensible (Han Xin)
    • Postal Codes
    • DotCode

    Digimarc:

    • Digital watermark technology

    IUID Support:

    • Supports IUID parsing, the ability to read and separate IUID fields per application requirement
Connectivity TechnologyWireless
Scanner RangeExtended Range
Drop Specification

Withstands multiple 8.0 ft. /2.4 m drops to concrete

Scan PatternOmni-directional
Image Sensor TypeImager
Scanning Capability1D
2D
Field of View (Horizontal)32
Field of View (Vertical)20
Reading Angle (Skew)60
Reading Angle (Pitch)60
Reading Angle (Roll)360
Maximum Ambient Light107639 lux
Minimum Print Contrast25%
Minimum Element Resolution (DataMatrix)0.25 mm
Maximum Element Resolution (DataMatrix)5.08 mm
Physical Characteristics
Weight (Approximate)436 g
Form FactorHandheld
Height185.4 mm
Width76.2 mm
Depth142.2 mm
Product ColorIndustrial Green
RuggedYes
General Information
Product TypeBarcode Scanner
Manufacturer Part NumberDS3678ER2F003VZWW
Manufacturer Website Addresshttps://www.zebra.com/ap/en.html
Packaged Quantity1
ManufacturerZebra Technologies Corporation
Product ModelDS3678-ER
Product NameDS3678-ER Handheld Barcode Scanner
Product Series3600
Brand NameZebra
