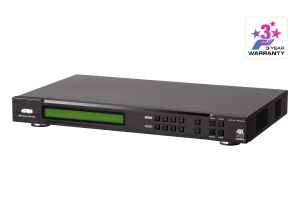

Aten VM6404HB 4 x 4 True 4K HDMI Matrix Switch with
Scaler
Overview
- Seamless Switch features close-to-zero second switching for continuous
video streams, real-time switching, and stable signal transmissions
- FrameSync prevents image tearing by synchronizing the scaler output frame
rate to the input signal frame rate
- HDMI (3D, Deep color, True 4K); HDCP 2.2 compatible
- Multiple Control Methods system management via front-panel pushbuttons,
IR, RS-232 control, and Ethernet connection for web GUI or Telnet
True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the
trend of high-definition video that delivers the ultimate visual experience with
exceptional sharp and vibrant video quality. ATENs VM6404HB True 4K HDMI Matrix
Switch with Scaler is compatible with the latest True 4K video resolutions of
4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear
images across four displays.
The VM6404HB supports 4K@60Hz, HDMI 2.0, and HDCP 2.2 and features Seamless
Switch that employs an FPGA matrix architecture that ensures continuous video
streams, real-time control, and stable signal transmissions. With a built-in
high-performance scaler, the VM6404HB easily converts various input resolutions
into various output display resolutions, giving viewers the best video and
picture quality across all displays. The switch integrates video wall
functionality with an easy-to-use web GUI that lets you create 8 connection
profiles that can be customized into different video wall
layouts.
The VM6404HB is an ideal solution for applications that require multiple HDMI
displays with multiple HDMI sources to be conveniently set up such as for stage
presentations, digital classroom, video conference rooms, and any installation
that requires real-time synchronization.
Package Contents
- 1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
Features
- 4 x 4 HDMI input/output connections
- Multiple Control Methods system management via front-panel pushbuttons,
IR, RS-232 control, and Ethernet connection for web GUI or Telnet
- View and control via ATEN Video Matrix Control App in a swift and agile
way
- True 4K Resolutions handles uncompressed video resolutions up to 4096 x
2160 / 3840 x 2160@60Hz (4:4:4)
- 4K Scaler features a 4K video scaler to convert input resolutions to the
optimum display resolutions
- Seamless Switch features close-to-zero second switching for continuous
video streams, real-time switching, and stable signal
transmissions*
- Video Wall allows you to create custom video wall layouts via intuitive
web GUI*
- True 4K EDID Expert selects optimum EDID settings for smooth power-up,
high-quality display, and use of the best resolutions across different
screens
- FrameSync prevents image tearing by synchronizing the scaler output frame
rate to the input signal frame rate
- Audio-enabled HDMI audio can be extracted to stereo audio
- HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
- Consumer Electronics Control (CEC) support
- ESD protection for HDMI
- Rack-mountable (1U design)
*Note:
1.When Seamless Switch is enabled, 3D, Deep Color, or interlace (i.e., 1080i)
formats will not be supported. To use these formats,make sure to disable
Seamless Switch.
2. Videos may not display within range when Seamless Switch or Video Wall is
enabled, in which case please adjust the display settings on your
device
Diagram
Specifications
|
Video
Input |
|
Interfaces |
4 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
3.0
m |
|
Video
Output |
|
Interfaces |
4 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
3.0
m |
|
Video |
|
Max. Data
Rate |
18.0 Gbps (6.0 Gbps per
lane) |
|
Max. Pixel
Clock |
600
MHz |
|
Compliance |
HDMI (3D, Deep Color,
4K); |
|
HDCP 2.2
Compatible; |
|
Consumer Electronics
Control (CEC) |
|
Max.
Resolution |
Up to 4096 x 2160 /
3840 x 2160 @ 60Hz (4:4:4) |
|
Max.
Distance |
Up to 3
m |
|
Audio |
|
Output |
1x Mini Stereo Jack
Female |
|
Control |
|
RS-232 |
Connector: 1 x DB-9
Female (Black); |
|
Baud Rate: 19200, Data
Bits: 8, Stop Bits: 1, Parity: No, |
|
Flow Control:
No |
|
IR |
1 x Mini Stereo Jack
Female (Black) |
|
Ethernet |
1 x RJ-45
Female |
|
EDID
Settings |
EDID Mode: Default /
Port 1 / Remix / Customized |
|
(EDID Wizard
Support) |
|
Connectors |
|
Power |
1 x 3-prong AC
Socket |
|
Power |
|
Maximum Input Power
Rating |
100-240
VAC;50-60Hz;1.0A |
|
Power
Consumption |
AC110V:43.7W:205BTU |
|
AC220V:43.1W:202BTU |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.52 kg ( 7.75 lb
) |
|
Dimensions (L x W x
H) |
43.24 x 26.23 x 4.40
cm |
|
(17.02 x 10.33 x 1.73
in.) |
|
Carton
Lot |
1
pc |
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH
format. |
