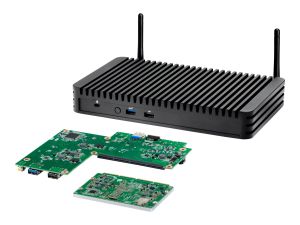

Intel NUC Rugged Chassis Element
  • M.2 SSD, HDMI, USB Ports(4), LAN

IMG 1 of 4
Our Price:
$361.35
or quickly purchase this product
Backorder
Part Number:
484586
(?) Brand:
Intel Web Site
Manuf No:
BKCMCR1ABB
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
BKCMCR1ABB, 90ABEABAMBR10B, 90ABEABA-MBR10B, CMB1ABA, CMB1ABB, 735858437745, 735858437738

Intel NUC Rugged Board & Chassis Elements

IntelNUC Rugged Board and Chassis Elements are modular carrier boards and housings designed to work with the IntelNUC 8 Compute Element. The NUC Rugged Board Element consists of a connector for the Intel NUC Computer Element to plug into, along with input and output connectors and headers. The NUC Rugged Chassis Element consists of a NUC Rugged Board Element and a passive enclosure. Both the NUC Rugged Board Elements and NUC Chassis Elements require a compatible NUC Compute Element to operate.

SPECIFICATIONS

  • Graphics
    • Dual HDMI 2.0a
  • Storage Capabilities
    • 2 M.2 2280 key M slot for PCIe x4 NVMe and SATA SSDs
    • Intel Optane memory H10 with Solid State Storage ready
  • Peripheral Connectivity
    • Intel i219-LM 10/100/1000 Mbps RJ45 Ethernet
    • Three USB 1 gen 2 Type-A ports (one front panel port and two back panel ports)
    • 1x internal USB 3.0 header
    • EDID emulation
    • CMCR1ABA
      • 2x internal USB 2.0 headers
    • CMCR1ABB
      • Intel i211-AT GbE LAN (additional)
      • Internal 4-lane eDP connector
      • Two USB 2.0 ports (back panel)
  • Expansion Capabilities
    • 1x internal USB 3.0 header
    • 2x internal USB 2.0 headers
    • 2x RS232 serial port header
    • CMCR1ABB:2x HDMI with built-in CEC
    • CMCR1ABC: 6xHDMI with built-in CEC
  • Audio
    • Up to 1 multichannel (or dual 8-channel) digital audio via HDMI
  • Front Panel Header
    • Vcc5/1A, 5Vsby/2A, 3Vsby/1A
    • Power Switch, Reset Switch, Power LED, Storage LED
  • Mechanical Chassis:254mm x 152mm x 36mm
    • Kensington lock ready
    • VESA mounting plate with a power adapter bracket
    • External dipole antennas
  • Mechanical Board Size
    • CMCR1ABA:170mm x 136mm
    • CMCR1ABC:200mm x 136mm
  • Carrier Board Capabilities
  • 19VDC90W power supply adapter with geo-specific AC cords
  • 12VDCto 24VDCrear jack, internal 2x2 connector
  • Qualified for 24x7 sustained operation
  • Delayed AC start
  • DC transient voltage suppression
  • Temperature
    • Operating
      • 0C to +40C Chassis
      • 0C to +50C Board
    • Storage
      • -20C to +40C

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
