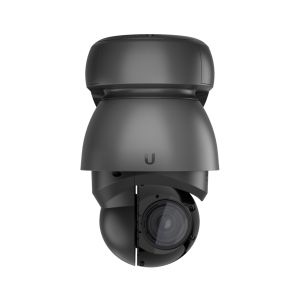

Ubiquiti UniFi Protect G4 PTZ
Overview
UniFi Protect G4 PTZ is a high-performance pan-tilt-zoom camera with 4K, 24
FPS video streaming, 22x optical zoom, and adaptive IR LED night
vision.
G4 PTZ is a superior surveillance camera for shopping centers, parking lots,
airports, train stations, and other transportation hubs. Pairing G4 PTZs
advanced optical and video technologies with UniFi Protects ease of use creates
a unique solution for the most demanding environments. G4 PTZ comes with IP66
weatherproof casing and flexible powering options.
Features
- 4K, 24 FPS video stream
- 22x optical zoom with F1.5 lens
- Tamper-resistant pan and tilt with servo feedback
- Multi-exposure HDR
- Adaptive IR LEDs, night vision distance up to 100 m
- Flexible power options: 802.3bt PoE++
- IP66 weatherproof rating
- Operating temperature -40 to + 50C (-40 to +122F)
- Managed by UniFi Protect software and mobile app
Note: UniFi Protect is required to run this product with full functionality,
we recommend using it with UniFi Dream Machine PRO or UniFi Protect Network
Video Recorder.
Specifications
|
MECHANICAL |
|
|
Dimensions |
207
x 223.7 x 341.3 mm |
|
(8.15
x 8.81 x 13.44") |
|
Weight |
Without
Mount: 3.8 kg (8.38 lb) |
|
With
Mount: 6.8 kg (14.99 lb) |
|
Enclosure
Materials |
Metal
and Plastic |
|
Mount
Material |
Metal |
|
IP
Rating |
IP66 |
|
OPTICS |
|
|
Sensor |
Sony
4K (8 MP) 1/1.8" CMOS Sensor |
|
Lens |
22x
Optical Zoom |
|
View
Angle |
H:
3 to 64 |
|
V:2to37 |
|
Night
Mode |
Built-in
IR LED Illumination and IR Cut Filter |
|
VIDEO |
|
|
Video
Compression |
H.264 |
|
Resolution |
4K2K
(3840 x 2160) |
|
Maximum
Frame Rate |
24
FPS |
|
SYSTEM |
|
|
Processor
Specs |
Ambarella
S5L66 |
|
Memory
Information |
1
GB |
|
Networking
Interface |
RJ45,
10/100/1000 Mbps Gigabit Ethernet |
|
Flash
Memory Support |
256
MB |
|
Max.
Power Consumption |
42.9W |
|
Power
Method |
802.3bt
PoE++ |
|
Supported
Voltage Range |
802.3bt
PoE++ |
|
Button |
Factory
Reset Button |
|
Mounting |
Wall
Mount |
|
Operating
Temperature |
-40
to 50o C (-40 to 122o F) |
|
Operating
Humidity |
0
to 90% Noncondensing |
|
Certifications |
FCC,
IC, CE |
