All stock codes associated to this product
VS481BATU, VS481B-AT-U, KVAVS481B, KVA-VS-481B, 4719264642203

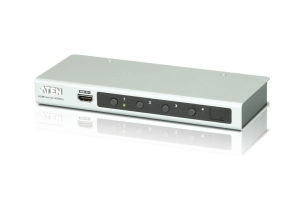

Aten 4-Port 4K HDMI Switch
Overview
- Allows up to four HDMI A/V sources to be connected to one HDMI
display
- HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- Quick and easy switching between HDMI sources via front panel pushbuttons,
RS-232 or IR Remote control
The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to
your HDMI display and easily switch between them via front panel pushbuttons,
RS-232 or IR remote control. The front panels LEDs indicate the source device
selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition
displays; Auto Switching modes for auto port selection;Instant Switching for a
smooth video transition between HDMI ports with increased efficiency; and
features a built-in bi-directional RS-232 serial port that allows the switch to
be controlled through a high-end controller, PC, and/or home automation/home
theater software package.
Package Contents
- 1x VS481B 4-Port HDMI Switch
- 1x HDMI Cable (1.8m/6ft)
- 1x IR Remote Control
- 1x Power Adapter
- 1x User Instructions
Features
- Allows up to four HDMI A/V sources to be connected to one HDMI
display
- Quick and easy switching between HDMI sources via front panel pushbuttons,
RS-232 or IR Remote control
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
- Auto switching modes for auto port selection
- Long distance transmission up to 15 m (24 AWG)
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio
- Built-in bi-directional RS-232 serial remote port for high-end system
control
- Instant switching between HDMI input sources
- Supports IR extension using a IR extension cable
- LED indication of video source devices
Specifications
|
Video
Input |
|
Interfaces |
4
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
3m
@3840x2160@30 (4:4:4) |
|
Video
Output |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
15m
@3840x2160@30 (4:4:4) |
|
Video |
|
Max.
Data Rate |
10.2
Gbps (3.4 Gbps per lane) |
|
Max.
Pixel Clock |
340
MHz |
|
Compliance |
HDMI
(3D, Deep Color, 4K) |
|
HDCP
2.2 Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolution |
Up
to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); |
|
4096
x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Control |
|
RS-232 |
Connector:
1 x DB-9 Female (Black) |
|
Baud
Rate and Protocol: |
|
Baud
Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control:
No |
|
IR |
1
x Mini Stereo Jack Female (Black) |
|
Connectors |
|
Power |
Connector:
1 x DC Jack |
|
Power
Consumption |
DC5V:1.76W:8BTU |
|
Environmental |
|
Operating
Temperature |
0
- 50C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.48
kg ( 1.06 lb ) |
|
Dimensions
(L x W x H) |
20.00
x 8.25 x 2.50 cm |
|
(7.87
x 3.25 x 0.98 in.) |
|
Carton
Lot |
10
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
