All stock codes associated to this product
KE9900STAXU, KE9900ST-AX-U, KVAKE9900ST, KVA-KE9900ST

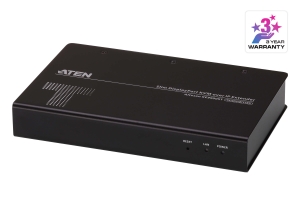

The KE9900ST Slim DisplayPort KVM over IP Extender is a compact and
affordable high performance IP-based transmitter which can be paired with any KE
Series* receiver for a savings solution that stays within budget. The KE Series*
extenders allow access to a computer system from a remote USB console over an
intranet, enabling users to locate computers in a secure and temperature
controlled environment, which is isolated from users workstation.
The KE9900ST supports DisplayPort video input from the computer while the
paired KE Series receiver supports DisplayPort, DVI or HDMI monitor output,
providing video resolutions up to 1920 x 1200 and flawless and lossless video
compression quality with minimal latency. The extender also supports RS-232
serial commands. In addition to a DC power jack, the KE9900ST transmitter
includes an extra DC terminal block for convenient installation.
The KE9900ST can be set on a desk, mounted on a wall or at the rear of a rack
with its space-saving 0U rack mount design. Moreover, the KE9900ST can be used
as a point-to-point/point-to-multipoint/multipoint-to-point extender, or
integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when
combined with the KE Matrix Management Software (CCKM), providing more flexible
applications in different working environments.
The KE9900ST can be configured through the KE Matrix Management Software or
RS-232/Telnet text menu. The KE extender also offers enhanced security features
such as supporting AES encryption for secured Video/Keyboard/Mouse/USB data
transmissions and RADIUS/LDAP/AD or remote user authentication that provides an
added layer of connection security.
When integrated with the KE Matrix Management Software and paired with the KE
Series receiver, the KE extender supports more advanced features such as
boundless switching, fast switching, video wall, multi display, profile
scheduling, auto detection of all KE Series extenders on the same subnet for the
sake of fast installation or configuration, as well as username/password
authentication and authorization. Please refer to the CCKM webpage for more
details.
Whether you're configuring, monitoring, administrating, controlling or
extending computer access, the KVM over IP Matrix System is made adaptable, to
fit an endless variety of working environments and workstation settings, as well
as to provide solutions in broadcasting, control center, multimedia,
manufacturing and many other industries where matrix extending is
required.
*Please visit www.aten.com for a comprehensive list of KE Series
Extenders.
Package Contents
- 1x Slim DisplayPort Single Display KVM over IP Transmitter
- 1x DisplayPort Cable (2m/6.56ft)
- 1x USB 2.0 Type-A to Type-B Cable (1.8m/6ft)
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
Features
Hardware
- Advance processor provides lossless and low latency video transmissions up
to 1920 x 1200 @ 60Hz; 24-bit color depth
- Support standard HDMI resolutions from 640 x 480 up to 1920 x
1200
- USB Virtual Media Support
- Compliant with DP 1.2 and HDCP 1.3
- Auto-MDIX automatically detects cable type
- Built-in 8KV/15KV ESD protection and 1KV surge protection
- Slim, light and fanless design for silent operations that are energy
efficient
- Support connection via Gigabit Ethernet port
- Rack Mountable* and Wall Mountable
- Mounting options:
- VE-RMK 1U Extender Rack Mount Kit*
Note: *Refer to www.aten.com for more regarding the VE-RMK 1U Extender Rack
Mount Kit.
Management
- Remotely access computers on your KVM installation via intranet
- OSD (On Screen Display) on the Receiver configures both Tx/Rx
units
- EDID Expert selects optimum EDID settings for smooth power-up and highest
quality display
- Video Compression Level allows you to increase/decrease the video quality
to adjust for appropriate network bandwidth
- CLI administrators can control all KE devices via RS-232 or Telnet by
issuing commands
- RS-232 serial ports allow you to connect to a serial terminal for text
menu, CLI, or serial devices such as touch screens and barcode
scanners
- Compatible with all KE devices
Security
- Dedicated LAN port for KE direct connections can be isolated from the
corporate network
- Secure data transmission AES encryption to secure
Video/Keyboard/Mouse/Data transmission
- Supports industry standard Transport Layer Security (TLS)
protocol
Virtual Media
- Virtual Media enables file transfers, OS patching, software installations
and diagnostic testing
- Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives
and ISO images
- Support Smart Card/CAC Reader
Advanced Features**
- Flexible connections allows multiple extender and matrix connections for
multi-display installations and video wall applications
- Push and Pull share content instantly by just one click
- Fast Switching switch between different remote video resolutions on a
local display within 0.3 second
- Boundless Switching - simply move the mouse cursor across screen
boundaries to switch between different receivers
- Video Walls create multiple video walls with up to 8 x 8 (64 displays
max.) in each layout
- Advanced Scheduling improves efficiency and saves costs by allowing
connections to be set based on time and date
- Virtual Transmitter to stream video, audio, USB, and serial sources
independently
- Support both internal and external authentication external authentication
supports LDAP, Active Directory, RADIUS and TACACS+
- Advanced User Authorization Settings administrators can set four access
modes of permissions on Tx devices for collaboration or to avoid interference
among users
- Configurable user and group permissions for access and control of KE
devices
- Tx grouping of up to 4 sets of KE transmitters to support multi-display
applications
Note: **These advanced functions are supported when the KE devices are
managed by KE Matrix Management Software (CCKM)
Recommended Network Switches
- Below are the network switches that have passed ATEN's stress tests using
the KE Series extenders. Our tests streamed content over a network with a
resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89
Series), 24bit color depth at 60 frames per second.
- Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
- HP Procurve 2920
- H3C S5120
- Huawei S5700
- DLink DGS-1510
Specifications
|
Connectors |
|
KVM
Ports |
1
x USB Type B Female (White) |
|
1
x DisplayPort Female (Black) |
|
1
x DB-9 Female (Black) |
|
Power |
1
x DC Jack (Black) |
|
1
x 3-Pole Terminal Block Connector (Green) |
|
LAN
Ports |
1
x RJ-45 (Black) |
|
Switches |
|
Reset |
1
x Semi-recessed Pushbutton |
|
LEDs |
|
10/100/1000
Mbps |
1
(10: Orange / 100: Orange & Green / 1000:
Green) |
|
Power |
1
(Blue) |
|
Emulation |
|
Keyboard
/ Mouse |
USB |
|
Power
Consumption |
DC5V:4.75W:22BTU |
|
POE:6.97W:33BTU |
|
Video
Resolution |
Up
to 1920 x 1200 @ 60Hz |
|
Environmental |
|
Operating
Temperature |
050C |
|
Storage
Temperature |
-2060C |
|
Humidity |
095%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.65
kg ( 1.43 lb ) |
|
Dimensions
(L x W x H) |
18.20
x 11.75 x 2.87 cm |
|
(7.17
x 4.63 x 1.13 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
