All stock codes associated to this product
CP9020236AU, CP-9020236-AU, PSCPCV650V2, PSCP-CV650V2, CP9020236AU(CV650), CP-9020236-AU(CV650), 840006630036

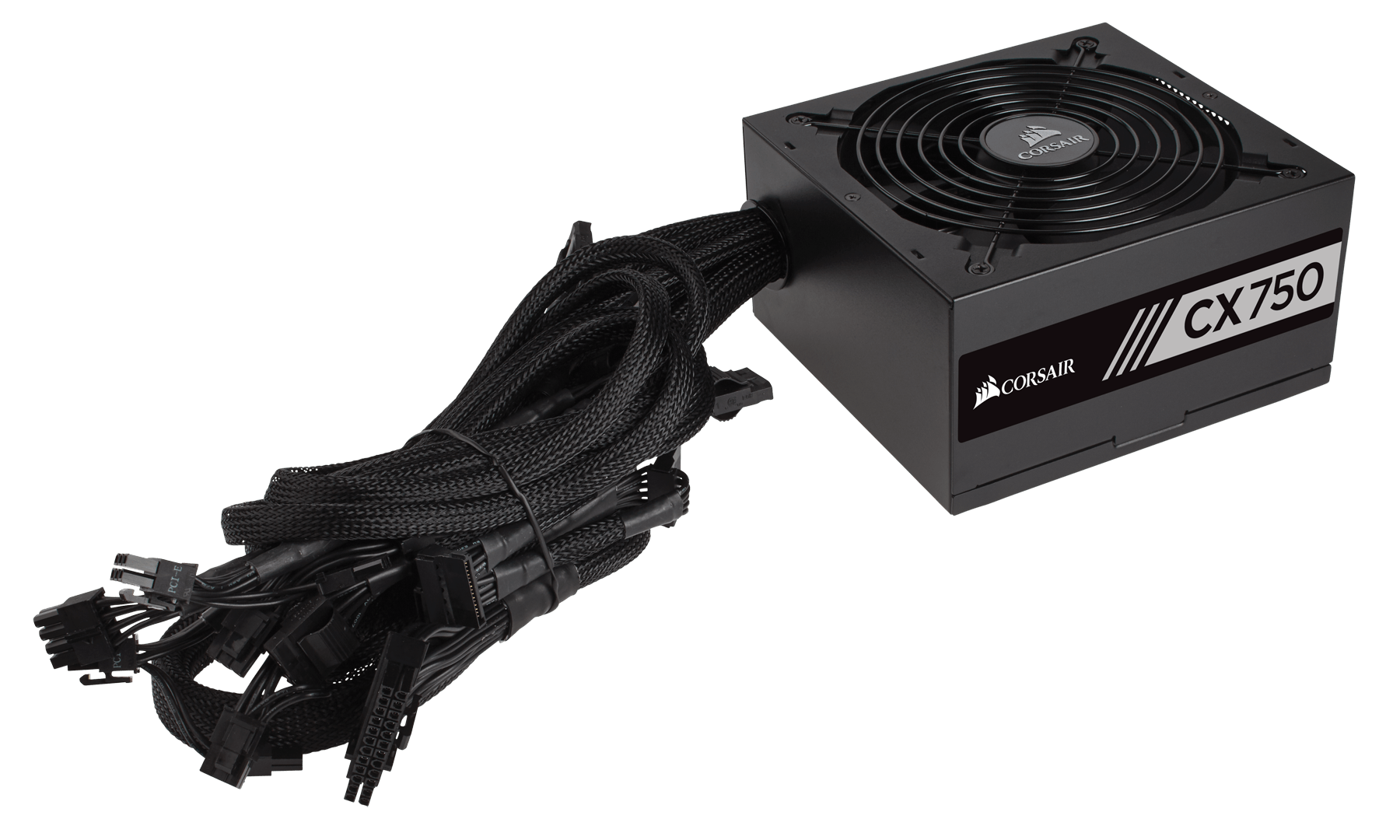

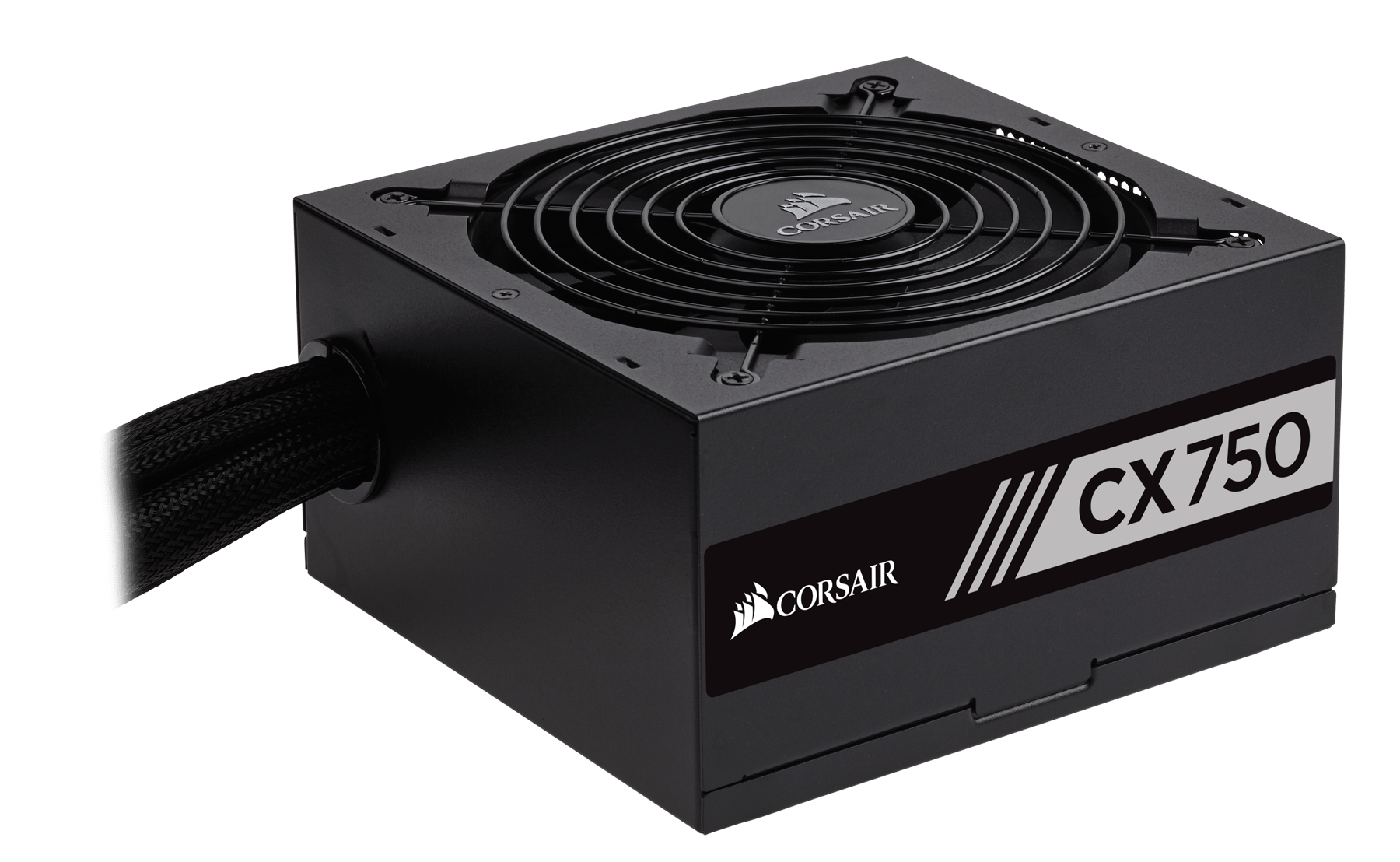

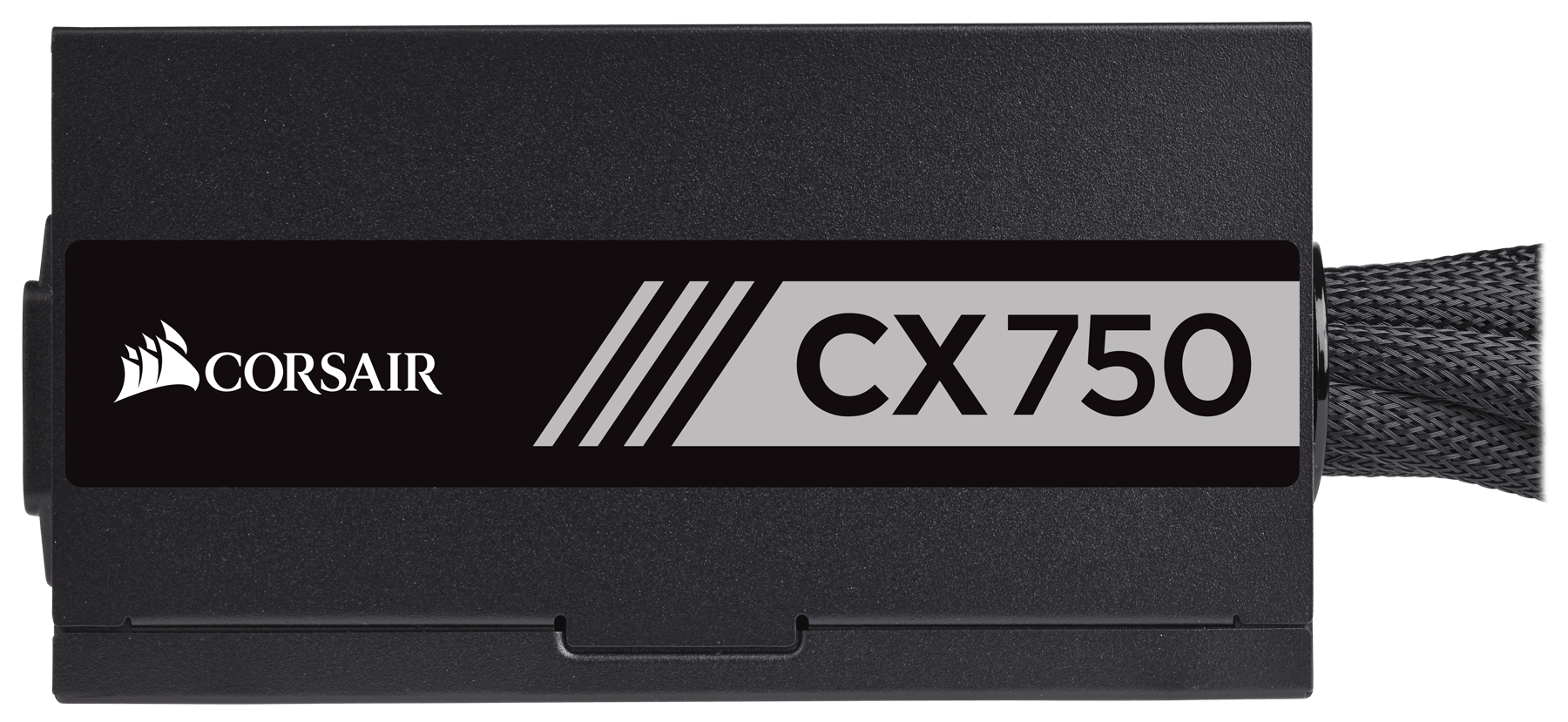

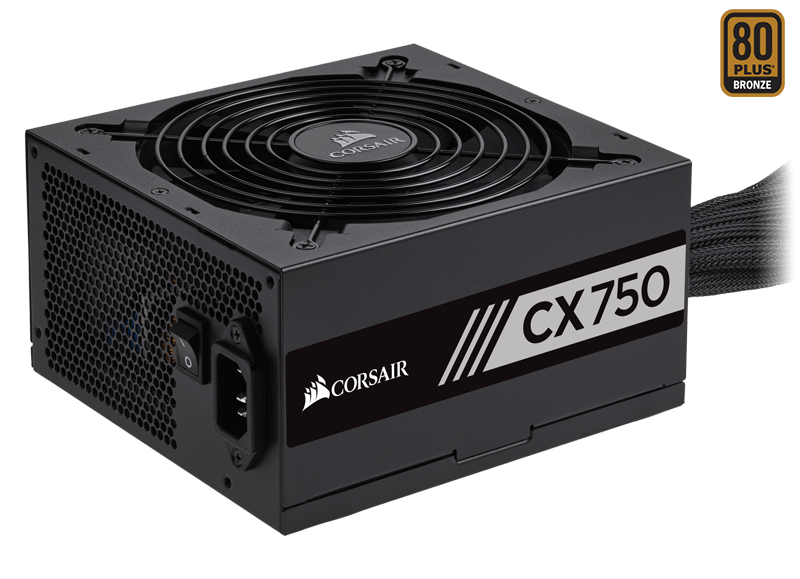

Corsair CX Series CX750 - 750 Watt 80 PLUS Bronze Certified ATX PSU
(AU)
Overview
CX Series power supply units provide 80 PLUS Bronze efficiency at a
competitive price point featuring black cable sleeving and connectors and a
thermally controlled 120mm fan.
AN IDEAL CHOICE FOR VALUE-CONSCIOUS SYSTEM BUILDERS AND
UPGRADERS
CX Series power supply units provide modern power supply technologies and 80
PLUS Bronze efficiency at a competitive price point. It is black with black
cable sleeving and connectors and a thermally controlled 120mm fan. The LLC
resonant topology with DC to DC ensures complete compatibility with all modern
day PCs.
LOW NOISE
80 PLUS Bronze certified efficiency and clever fan design allow for little or
no detectable fan noise during regular operation.
GOOD LOOKS
The matte black finish, black-sleeved cables and black connectors help give
your system a restrained, high-tech look.
RELIABLE AND COMPATIBLE
CX Series is built and tested to strict standards for trouble-free
installation and smooth operation.
CORSAIR ENGINEERING AND QUALITY CONTROL
Every Corsair power supply is designed by our California engineering team and
built to our exact specifications. The same care that goes into the design and
testing of our renowned high-power enthusiast power supplies also goes into the
CX Series, because you need confidence and reliability regardless of your build
budget.
AMPLE CONNECTORS AND LONG CABLES
Long cables make CX Series suitable for installation even in full-height
tower cases, and the generous cable count allows you to power multiple
components and storage devices.

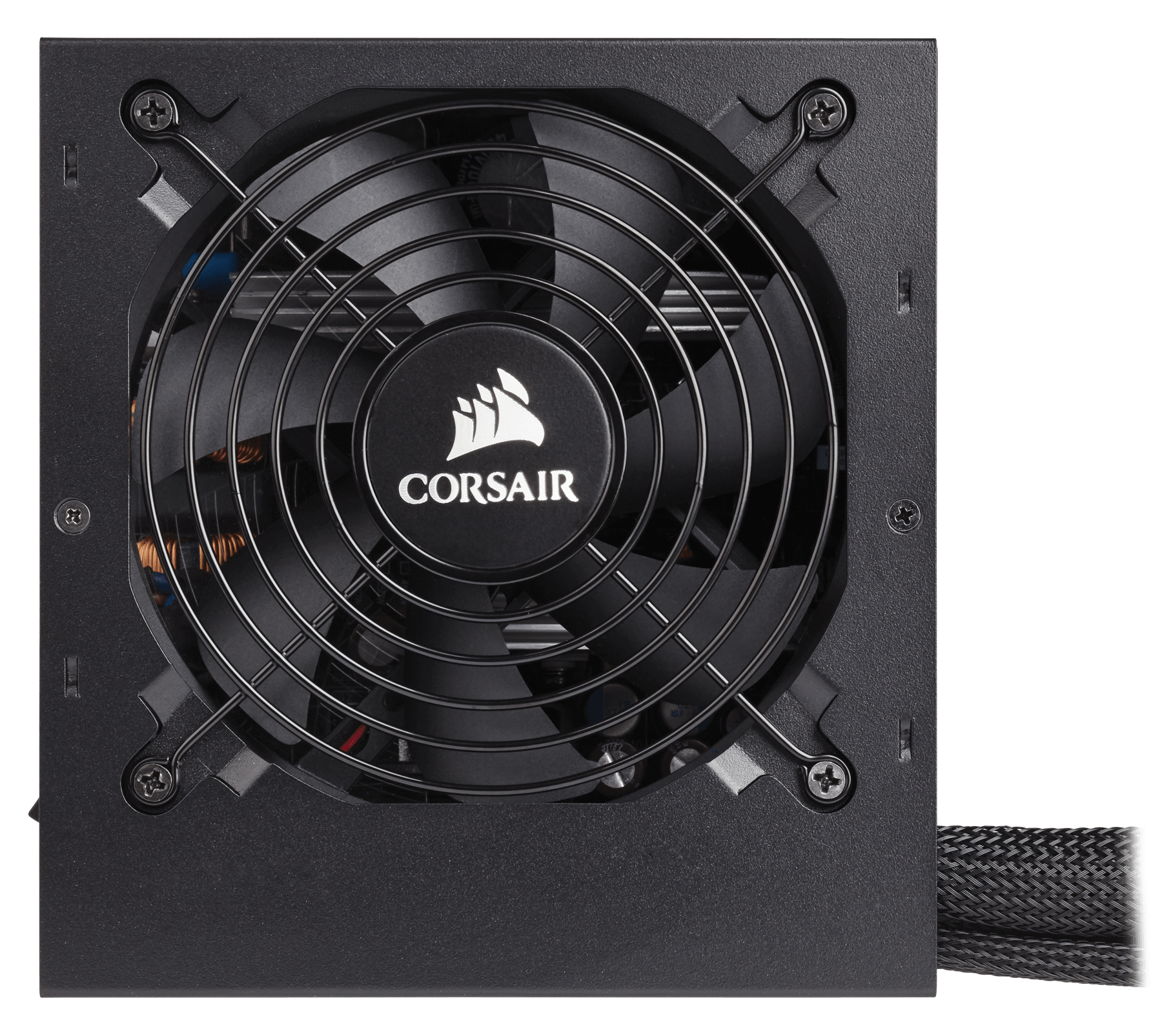

LARGE-DIAMETER, THERMALLY CONTROLLED FAN
Once youve installed a PSU, you shouldnt have to think about it. Employing a
thermally controlled fan makes the CX Series virtually silent at idle, and the
large diameter reduces noise even when youre pushing your system
hard.
Specifications
|
Adjustable
Single/Multi 12V Rail |
No |
|
ATX
Connector |
1 |
|
ATX12V
Version |
v2.4 |
|
Continuous
output rated temperature C |
40C |
|
Continuous
power W |
750
Watts |
|
Fan
bearing technology |
Rifle |
|
Fan
size mm |
120mm |
|
MTBF
hours |
100,000
hours |
|
Multi-GPU
ready |
YES |
|
Warranty |
Five
years |
|
Cable
Type |
Sleeved |
|
Dimensions |
150mm
x 160mm x 86mm |
|
EPS12V
Connector |
1 |
|
Modular |
No |
