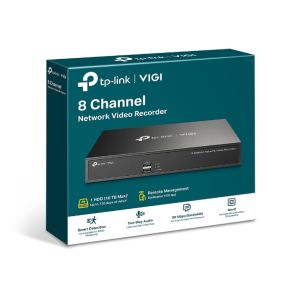

TP-Link VIGI NVR1008H VIGI 8 Channel Network Video
Recorder
Overview
- 24/7 Continuous Recording: Automatically stores up to 10 TB of footage
from connected cameras to secure your data for quick, convenient
access.
- 8-Channel Real-Time Live View: Sharp image definition up to 5MP and an 8
channel display ensures you capture every detail, from every angle.
- 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at
the same time, increase replay speed, and find events in the video schedule to
easily review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring,
providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits
compressed crystal-clear video to save disk space, ease network loads, and
reduce monitoring costs without sacrificing image quality.
- Onvif Ensure Compatibility**: Easily add IPCs from VIGI and other brands
to establish a powerful and varied network thanks to barrier-free
compatibility.
- 1 HDD Interface (up to 10 TB): Stores up to 10 TB (720 days* of video) on
a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations
while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your
NVR connects more cameras with high resolution. Based on laboratory testing
using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
Specifications
|
NETWORK |
|
Protocol |
TCP/IP,
DHCP, DNS, NTP, UPnP |
|
Incoming
Bandwith |
80
Mbps |
|
Outgoing
Bandwidth |
60
Mbps |
|
GENERAL |
|
Operating
Temperature |
-1055
C |
|
Chassis |
1U
Chassis |
|
Dimensions(
H X W X D ) |
246.2
mm*148.2 mm*42.6 mm |
|
Weight |
578.5
g |
|
External
Power Supply |
12V
DC, no more than 18 W |
|
Power
Consumption |
4.25
W (without disk) |
|
13.10
W (with disk) |
|
VIDEO/IMAGE |
|
Video
Input |
8-Channel
IP Video Input, up to 5 MP Resolution |
|
Video
Output |
Recording
Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA
/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
HDMI/VGA
Output Resolution: 1920 x1080p/60Hz, 1280 x1024/60Hz, 1280 x720/60Hz, 1680
x1050/60Hz, 1440 x900/60Hz |
|
DECODING |
|
Decoding
Format |
H.265+/H.265/
H.264+/H.264 |
|
Live
View/Playback Resolution |
5
MP/ 4 MP/3 MP/1080p/UXGA/ |
|
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous
Playback |
4
Channel |
|
Capability |
1-ch
@ 5MP, 2-ch @ 2MP, 4-ch @ 720p |
|
HARD
DISK |
|
SATA |
1
SATA Interface |
|
Capacity |
Up
to 10 TB |
|
INTERFACES |
|
Network
Interface |
1
RJ-45 10/100 Mbps Self-Adaptive Ethernet
Interface |
|
USB
Interface |
2
xUSB
2.0 |
