All stock codes associated to this product
276B1, 5064669, 276B1 , 13PH276B1, 13PH-276B1, 8712581774547

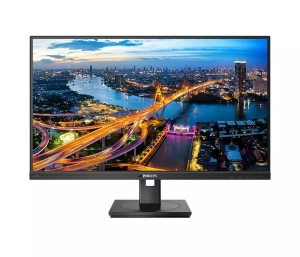

Philips 276B1/75 LCD monitor with USB-C
Overview
The Philips USB-C monitor replaces cable clutter. View QHD image, re-charge a
laptop, all at the same time with a single USB-C cable. Features like Daisy
chain for multi-display setup, Eye comfort with TUV certified to reduce eye
fatigue.
- B Line
- 27" (68.6 cm)
- 2560 x 1440 (QHD)

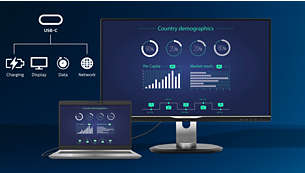

USB-C enables laptop power charging directly from
monitor
This Philips display features a built-in USB type-C docking station with
power delivery. With intelligent and flexible power management, you can power
charge your compatible* laptop directly. Its slim, reversible USB-C connector
allows for easy, one-cable docking. Simplify by connecting all your peripherals
like keyboard, mouse and your RJ-45 Ethernet cable to the monitor's docking
station. You can watch high resolution video and transfer data at a super-speed,
while powering up and re-charging your notebook at the same time.
Less eye fatigue with Flicker-free technology
Due to the way brightness is controlled on LED-backlit screens, some users
experience flicker on their screen which causes eye fatigue. Philips
Flicker-free Technology applies a new solution to regulate brightness and reduce
flicker for more comfortable viewing.
LowBlue Mode for easy on-the-eyes
productivity
Studies have shown that just as ultra-violet rays can cause eye damage,
shortwave length blue light rays from LED displays can cause eye damage and
affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce harmful shortwave blue light.
SmartErgoBase enables people-friendly ergonomic
adjustments
The SmartErgoBase is a monitor base that delivers ergonomic display comfort
and provides cable management. The base's people-friendly height, swivel, tilt
and rotation angle adjustments position the monitor for maximum comfort that can
ease the physical strains of a long workday; cable management reduces cable
clutter and keeps the workspace neat and professional.
PowerSensor saves up to 70% energy costs
PowerSensor is a built-in 'people sensor' that transmits and receives
harmless infrared signals to determine if user is present and automatically
reduces monitor brightness when user steps away from the desk, cutting energy
costs by up to 70 percent and prolonging monitor life.
LightSensor for the perfect brightness with minimal
power
LightSensor uses a smart sensor to adjust the picture brightness depending on
the room light conditions for the perfect picture with minimal power usage.
Built in RJ-45 ethernet gives data security
EasyRead mode for a paper-like reading
experience
View Crystalclear QHD 2560x1440 images
These Philips screens deliver Crystalclear, Quad HD 2560x1440 or 2560x1080
pixel images. Utilizing high performance panels with high density pixel count,
enabled by high bandwidth sources like Displayport, HDMI, Dual link DVI, these
new displays will make your images and graphics come alive. Whether you are
demanding professional requiring extremely detailed information for CAD-CAM
solutions, using 3D graphic applications or a financial wizard working on huge
spreadsheets, Philips displays will give you Crystalclear images.
TUV Eye Comfort certified to reduce eye
fatigue
Philips display meet TUV Rheinland Eye Comfort standard to prevent eye strain
caused by prolonged computer use. With TUV Eye Comfort certification, Philips
displays ensure flicker-free, low blue mode, no disturbing reflections, wide
viewing angle and less reduction of image quality from different angles and
ergonomic stand designs for ideal viewing experience. Keep your eyes healthy and
boost work productivity.
Built-in stereo speakers for multimedia
A pair of high quality stereo speakers built into a display device. It can be
visible front firing, or invisible down firing, top firing, rear firing, etc
depending on model and design.
Specifications
Picture/Display |
|
LCD
panel type |
IPS
technology |
Backlight
type |
W-LED
system |
Panel
Size |
27
inch / 68.6 cm |
Display
Screen Coating |
Anti-Glare,
3H, Haze 25% |
Effective
viewing area |
596.736
(H) x 335.664 (V) |
Aspect
ratio |
16:09 |
Maximum
resolution |
2560
x 1440 @ 75 Hz* |
Pixel
Density |
109
PPI |
Response
time (typical) |
4
ms (Gray to Gray)* |
Brightness |
300
cd/m |
Contrast
ratio (typical) |
1000:01:00 |
SmartContrast |
50,000,000
:1 |
Pixel
pitch |
0.2331
x 0.2331 mm |
Viewing
angle |
178
(H) / 178 (V) @ C/R > 10 |
Flicker-free |
Yes |
enhancement |
SmartImage |
Display
colors |
16.7
M |
Color
gamut (typical) |
NTSC
110%*, sRGB 123%* |
Scanning
Frequency |
30
- 114 kHz (H) / 48 - 75 Hz (V) |
sRGB |
Yes |
LowBlue
Mode |
Yes |
EasyRead |
Yes |
Adaptive
sync |
Yes |
Connectivity |
|
Signal
Input |
DisplayPort
1.4 x 1, HDM 1.4 x 2, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to
65 W) |
HDCP |
HDCP
1.4 (HDMI / DP / USB-C) |
HBR3 |
for
USB-C |
Signal
Output |
DisplayPort
out |
USB |
USB-C
x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C
1.2) |
Audio
(In/Out) |
Audio
out |
RJ45 |
Ethernet
LAN up to 1G*, Wake on LAN |
Sync
Input |
Separate
Sync |
USB |
|
USB-C |
Reversible
plug connector |
Super
speed |
Data
and Video transfer |
DP |
Built-in
Display Port Alt mode |
Power
delivery |
USB
PD version 3.0 |
USB-C
max. power delivery |
Up
to 65W (5V/3A; 9V/3A; 10V/3A; 12V/3A; 15V/3A;
20V/3.25A) |
Convenience |
|
Built-in
Speakers |
2
W x 2 |
User
convenience |
SmartImage |
|
Input |
|
PowerSensor |
|
Menu |
|
Power
On/Off |
Control
software |
SmartControl |
OSD
Languages |
Brazil
Portuguese |
|
Czech |
|
Dutch |
|
English |
|
French |
|
Finnish |
|
German |
|
Greek |
|
Hungarian |
|
Italian |
|
Japanese |
|
Korean |
|
Portuguese |
|
Polish |
|
Russian |
|
Simplified
Chinese |
|
Spanish |
|
Swedish |
|
Traditional
Chinese |
|
Turkish |
|
Ukranian |
Other
convenience |
Kensington
lock |
|
VESA
mount (100x100mm) |
Plug
& Play Compatibility |
DDC/CI |
|
Mac
OS X |
|
sRGB |
|
Windows
10 / 8.1 / 8 / 7 |
Stand |
|
Height
adjustment |
150
mm |
Pivot |
-1 |
Swivel |
-180/+180
degree |
Tilt |
-5/35
degree |
Power |
|
ECO
mode |
19.4
W (typ.) |
On
mode |
20.2
W (typ.) (EnergyStar test method) |
Standby
mode |
0.3
W |
Off
mode |
Zero
watts with Zero switch |
Power
LED indicator |
Operation
- White |
|
Standby
mode- White (blinking) |
Power
supply |
Built-in |
|
100-240VAC,
50-60Hz |
Dimensions |
|
Product
with stand(max height) |
613
x 537 x 205 mm |
Product
without stand (mm) |
613
x 366 x 54 mm |
Packaging
in mm (WxHxD) |
730
x 471 x 193 mm |
Weight |
|
Product
with stand (kg) |
7.12
kg |
Product
without stand (kg) |
5.47
kg |
Product
with packaging (kg) |
8.92
kg |
Operating
conditions |
|
Temperature
range (operation) |
0C
to 40C C |
Temperature
range (storage) |
-20C
to 60C C |
Relative
humidity |
20%-80
% |
Altitude |
Operation:
+12,000ft (3,658m), Non-operation: +40,000ft
(12,192m) |
MTBF
(demonstrated) |
70,000
hrs (excluded backlight) |
Sustainability |
|
Environmental
and energy |
PowerSensor |
|
LightSensor |
|
EnergyStar
8.0 |
|
EPEAT* |
|
TCO
Certified Edge |
|
RoHS |
Recyclable
packaging material |
100
% |
Post
consumer recycled plastic |
85% |
Specific
Substances |
Mercury
free |
|
PVC
/ BFR free housing |
Compliance
and standards |
|
Regulatory
Approvals |
EPA |
|
cETLus |
|
CB |
|
TUV/GS |
|
TUV
Ergo |
|
SEMKO |
|
CU-EAC |
|
EAEU
RoHS |
|
CE
Mark |
|
FCC
Class B |
|
ICES-003 |
|
UKRAINIAN |
|
TUV
Eye Comfort certified |
|
MEPS |
|
RCM |
Cabinet |
|
Front
bezel |
Black |
Rear
cover |
Black |
Foot |
Black |
Finish |
Texture |
