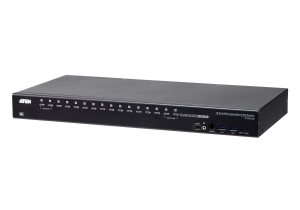

Aten 16-Port USB 3.0 4K DisplayPort KVM Switch
Overview
The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively
access and control up to 16 DisplayPort computers from a single USB keyboard,
USB mouse, and monitor console. With its dual interface console, users can
choose between DisplayPort/HDMI video output supporting high video quality up to
4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS19216 can be
cascaded to two levels to control up to 256 computers from a single console.
Furthermore, the CS19216 supports multi-display function by stacking up to eight
CS19216 units to compare and analyze information on 8 monitors at most, which
substantially streamlines the working environment.
With two patented ATEN technology Video DynaSync and EDID Expert, the CS19216
can optimize display resolution, accelerate switching between ports and power up
smoothly while eliminating boot-up display problems.
Besides, the CS19216 comes with a built-in USB 3.1 Gen 1 hub delivering data
transfer rates up to 5 Gbps, allowing users to speed up operations and share USB
peripherals instantly. For user-friendly port selection methods, the C19216
offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI,
bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is
available to enhance security protection for accessing and controlling
computers. Consolidating these advantageous functionalities, the CS19216 is
ideal for server room/computer room management applied in industries with
requirements for high-quality images and multitasking, such as Enterprise,
Government, Production, Telecom, Finance, Medical Healthcare, Industrial
Automation, etc.
Package Contents
- 1x CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting
Kit
- 2x DisplayPort 1.4 Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
Features
- One USB console controls up to sixteen DisplayPort interface computers and
two additional USB 3.0 peripheral devices
- Cascadable to two levels controls up to 256 computers1
- Multi-Display feature stack up to eight CS19216 units and display video
from up to 8 monitors (dual display / triple display / quad display /
multi-display)
- Video DynaSync an exclusive ATEN technology that eliminates boot-up
display problems and optimizes the resolution when switching among different
sources
- EDID Expert selects optimum EDID mode for smooth power-up and highest
quality display
- Supports a DisplayPort or HDMI video output allows you to choose an
appropriate video output and deploy console with flexibility
- Superior video quality up to 4K DCI (4096 x 2160 @ 60Hz)
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer
rates
- Audio enabled full bass response provides a rich experience for 2.1
channel stereo sound
- Supports HD audio2
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232
commands
- Independent switching of KVM and USB peripheral focus3
- Two-level (administrator/user) password authorization for enhanced
security protection
- Broadcast mode operations can be simultaneously performed on all selected
computers, such as software installation and upgrading, system-wide shutdown,
etc.
- Auto Scan Mode for monitoring all computers
- Console mouse port emulation/bypass feature supports most mouse drivers
and multifunction mice
- Multilingual keyboard mapping supports English (US), English (UK), German
(GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian,
Spanish, Swedish, Traditional Chinese, and Simplified Chinese
- Mac/Sun keyboard support and emulation4
- Supports hot-plugging
- DisplayPort 1.2 compliant; HDCP 2.2 compliant
- Multiplatform support Windows, Linux, Mac, and Sun
- Firmware upgradable
- Supports multimedia, wireless keyboards and mouse
Specifications
|
Computer
Connections |
|
Direct |
16 |
|
Maximum |
256
(via Cascade) |
|
Port
Selection |
OSD,
Hotkey, Pushbutton, RS-232Commands |
|
Connectors |
|
Console
Ports |
1
x DisplayPort Female |
|
1
x HDMI Female (Black) |
|
2
x USB Type A Female |
|
2
x 3.5mm Audio Jack Female (Green; 1 x front, 1 x
rear) |
|
KVM
Ports |
16
x DisplayPort Female |
|
16
x USB3.1 Gen1 Type B Female (Blue) |
|
16
x 3.5mm Audio Jack Female (Green) |
|
Firmware
Upgrade |
1
x RJ11 Female (Black) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
|
Switches |
|
Port
Selection |
16
x Pushbutton |
|
Reset |
1
x Semi-recessed Pushbutton |
|
Firmware
Upgrade Recovery |
1
x Slide Switch |
|
LEDs |
|
On
Line /Selected |
16
(Orange) |
|
Power |
1
(Green) |
|
USB
Link |
16
(Green) |
|
Emulation |
|
Keyboard
/ Mouse |
USB |
|
Video |
DisplayPort:
4096 x 2160 @ 60Hz; HDMI: 4096 x 2160 @ 60Hz |
|
Scan
Interval |
0 255
seconds (default: 5 secs.) |
|
Power
Consumption |
DC12V:26.66W:175BTU |
|
Environmental |
|
Operating
Temperature |
0 40C |
|
Storage
Temperature |
-20 60C |
|
Humidity |
0 80%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.54
kg ( 7.8 lb ) |
|
Dimensions
(L x W x H) |
43.24
x 21.43 x 4.40 cm |
|
(17.02
x 8.44 x 1.73 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
