All stock codes associated to this product
CS19208ATU, CS19208-AT-U, KVACS19208, KVA-CS-19208, 4719264649257

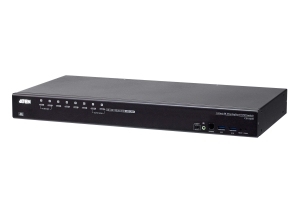

Aten 8-Port USB 3.0 4K DisplayPort KVM Switch
Overview
The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively
access and control up to 8 DisplayPort computers from a single USB keyboard, USB
mouse, and monitor console. With its dual interface console, users can choose
between DisplayPort/HDMI video output supporting high video quality up to 4K DCI
(4096 x 2160 @ 60Hz), presenting crystal-clear visuals.a
To meet the needs of easy expansion and flexibility, the CS19208 can be
cascaded to two levels to control up to 128 computers from a single console.
Furthermore, the CS19208 supports multi-display function by stacking up to eight
CS19208 units to compare and analyze information on 8 monitors at most, which
substantially streamlines the working environment.
With two patented ATEN technology Video DynaSync and EDID Expert , the
CS19208 can optimize display resolution, accelerate switching between ports and
power up smoothly while eliminating boot-up display problems.
Besides, the CS19208 comes with a built-in USB 3.1 Gen 1 hub delivering data
transfer rates up to 5 Gbps, allowing users to speed up operations and share USB
peripherals instantly. For user-friendly port selection methods, the CS19208
offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI,
bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is
available to enhance security protection for accessing and controlling
computers. Consolidating these advantageous functionalities, the CS19208 is
ideal for server room/computer room management applied in industries with
requirements for high-quality images and multitasking, such as Enterprise,
Government, Production, Telecom, Finance, Medical Healthcare, Industrial
Automation, etc.
Package Contents
- 1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting
Kit
- 2x DisplayPort 1.4 Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
Features
- One USB console controls up to eight DisplayPort interface computers and
two additional USB 3.0 peripheral devices
- Cascadable to two levels controls up to 128 computers1
- Multi-Display feature stack up to eight CS19208 units and display video
from up to 8 monitors (dual display / triple display / quad display /
multi-display)
- Video DynaSync an exclusive ATEN technology that eliminates boot-up
display problems and optimizes the resolution when switching among different
sources
- EDID Expert selects optimum EDID mode for smooth power-up and highest
quality display
- Supports a DisplayPort or HDMI video output allows you to choose an
appropriate video output and deploy console with flexibility
- Superior video quality up to 4K DCI (4096 x 2160 @ 60Hz)
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer
rates
- Audio enabled full bass response provides a rich experience for 2.1
channel stereo sound
- Supports HD audio2
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232
commands
- Independent switching of KVM and USB peripheral focus3
- Two-level (administrator/user) password authorization for enhanced
security protection
- Broadcast mode operations can be simultaneously performed on all selected
computers, such as software installation and upgrading, system-wide shutdown,
etc.
- Auto Scan Mode for monitoring all computers
- Console mouse port emulation/bypass feature supports most mouse drivers
and multifunction mice
- Multilingual keyboard mapping supports English (US), English (UK), German
(GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian,
Spanish, Swedish, Traditional Chinese, and Simplified Chinese
- Mac/Sun keyboard support and emulation4
- Supports hot-plugging
- DisplayPort 1.2 compliant; HDCP 2.2 compliant
- Multiplatform support Windows, Linux, Mac, and Sun
- Firmware upgradable
- Supports multimedia, wireless keyboards and mouse
Specifications
|
Computer
Connections |
|
Direct |
8 |
|
Maximum |
128
(via Cascade) |
|
Port
Selection |
OSD,
Hotkey, Pushbutton, RS-232 Commands |
|
Connectors |
|
Console
Ports |
1
x DisplayPort Female |
|
1
x HDMI Female (Black) |
|
2
x USB Type A Female |
|
2
x 3.5mm Audio Jack Female (Green; 1 x front, 1 x
rear) |
|
KVM
Ports |
8
x DisplayPort Female |
|
8
x USB3.1 Gen1 Type B Female (Blue) |
|
8
x 3.5mm Audio Jack Female (Green) |
|
Firmware
Upgrade |
1
x RJ11 Female (Black) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
|
Switches |
|
Port
Selection |
8
x Pushbutton |
|
Reset |
1
x Semi-recessed Pushbutton |
|
Firmware
Upgrade Recovery |
1
x Slide Switch |
|
LEDs |
|
On
Line /Selected |
8
(Orange) |
|
Power |
1
(Green) |
|
USB
Link |
8
(Green) |
|
Emulation |
|
Keyboard
/ Mouse |
USB |
|
Video |
DisplayPort:
4096 x 2160 @ 60Hz; HDMI: 4096 x 2160 @ 60Hz |
|
Scan
Interval |
0 255
seconds (default: 5 secs.) |
|
Power
Consumption |
DC12V:18.44W:136BTU |
|
Environmental |
|
Operating
Temperature |
0 40C |
|
Storage
Temperature |
-20 60C |
|
Humidity |
0 80%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.11
kg ( 6.85 lb ) |
|
Dimensions
(L x W x H) |
43.24
x 21.43 x 4.40 cm |
|
(17.02
x 8.44 x 1.73 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
