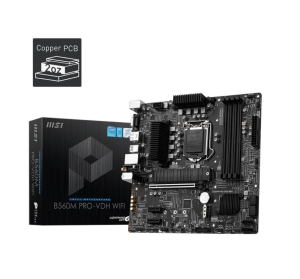

MSI B560M Pro-VDH Wifi Motherboard
Overview
- Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and
Celeron processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Core Boost: With premium layout and digital power design to support more
cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best
performance and stability.
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield
Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use.
Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better
performance, stability and strength.
Specifications
|
CPU
(MAX SUPPORT) |
i9 |
|
SOCKET |
1200 |
|
CHIPSET |
Intel
B560 Chipset |
|
DDR4
MEMORY |
5066(OC)
/ 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) /
4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) /
3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) /
2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) /
2133(JEDCE & POR) MHz |
|
MEMORY
CHANNEL |
Dual |
|
DIMM
SLOTS |
4 |
|
MAX
MEMORY (GB) |
128 |
|
PCI-E
X16 |
1 |
|
PCI-E
GEN |
Gen4 |
|
PCI-E
X1 |
2 |
|
SATAIII |
6 |
|
M.2
SLOT |
2 |
|
TPM
(HEADER) |
1 |
|
LAN |
1x
Realtek 8125B 2.5Gbps LAN controller |
|
USB
3.2 PORTS (FRONT) |
2(Gen
1, Type A) |
|
USB
3.2 PORTS (REAR) |
2(Gen
2, Type A), 2(Gen 1, Type A) |
|
USB
2.0 PORTS (FRONT) |
4 |
|
USB
2.0 PORTS (REAR) |
2 |
|
SERIAL
PORTS(FRONT) |
1 |
|
AUDIO
PORTS (REAR) |
Realtek
ALC897 Codec |
|
DISPLAYPORT |
1 |
|
VGA |
1 |
|
HDMI |
1 |
|
DIRECTX |
12 |
|
FORM
FACTOR |
MATX |
|
OPERATING
SYSTEM |
Support
for Windows 10
64-bit |
