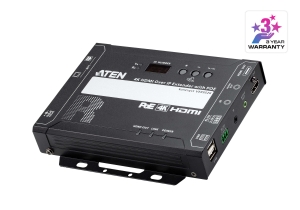

Aten VE8952R 4K HDMI over IP Receiver with PoE
Overview
- Extends AV connections from a simple point-to-point to a multi-point to
multi-point setup via LAN
- Delivers visually lossless high-quality video up to 4K @ 30 Hz
4:4:4
- Daisy Chaining - Connects multiple displays through a single
port
- Video Wall Support
Specifications
|
Video
Output |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
3
m (2L-7D03H) |
|
Video |
|
Max.
Data Rate |
Average:
150 ~ 500Mbps |
|
Compliance |
HDMI |
|
HDCP
Compatible |
|
Max.
Resolutions / Distance |
Up
to 4K@100m (Cat 5e/6, point to point) |
|
*4K
supported: |
|
4096
x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Audio |
|
Output |
1
x HDMI Type A Female (Black) |
|
1
x Mini Stereo Jack Female (Green) |
|
Connectors |
|
Unit
To Unit |
2
x RJ-45 Female |
|
Power |
1
x DC Jack (Black) with locking |
|
or
1 x RJ-45 (Power Over Ethernet, POE) |
|
Control |
|
IR |
1
x Mini Stereo Jack Female (Black) |
|
RS-232 |
Connector:
1 x Terminal Block, 3 pole |
|
Baud
Rate: 19200, Data Bits:8, |
|
Stop
Bits:1, no parity and flow control |
|
USB |
2
x USB Type A Female (Black) |
|
Pushbuttons |
|
ID
Number Selection |
3
x Push buttons |
|
Power
Consumption |
DC5V:5.22W:46BTU |
|
POE:6.52W:52BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.68
kg ( 1.5 lb ) |
|
Dimensions
(L x W x H) with bracket |
17.02
x 14.69 x 3.00 cm |
|
(6.7
x 5.78 x 1.18 in.) |
|
Dimensions
(L x W x H) without bracket |
16.60
x 12.49 x 2.90 cm |
|
(6.54
x 4.92 x 1.14
in.) |
