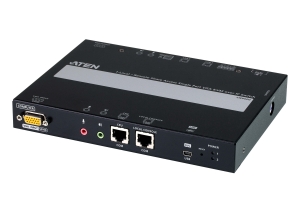

Aten CN9000 1-Local/Remote Share Access Single Port VGA KVM over IP
Switch
Overview
- High video resolution up to 1920 x 1200 @ 60 Hz
- Provides an FPGA graphics processor for better image quality and enhanced
fps (frames per second) throughput for crisp video display response
- Supports 5-pin Relay/DI Terminal for environment monitoring and reboot
control
- Supports Legacy PS/2 keyboard and mouse
The CN9000 VGA KVM over IP Switch allows remote access and control of the
video, audio and virtual media of a PC or workstation, featuring VGA high video
resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles.
Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible
not only with modern-day workstations, but also legacy systems and older
generation servers.
For user-friendly operation, a mini USB port on the front panel is designed
as a Laptop USB Console (LUC) port for connection to a laptop, which allows the
user to access the PC/server for easy routine maintenance without requiring an
additional monitor, keyboard and mouse.
To ensure seamless connectivity, the CN9000 is equipped with dual LAN and
dual power functionality to keep operation in the server room smooth and
efficient. Its power status detection function automatically sends out event
notifications when the device becomes offline (e.g. power failure) for device
status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital
input) terminal block allowing for remote reboot of the local server, and
receiving digital inputs from a connected input/alarm device for notification of
critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote
desktop access without additional software applications. The VGA KVM over IP
Switch provides a web-based GUI for remote access and management. With a unified
multilanguage interface, it can effectively minimize user training time and
increase productivity.
Package Contents
- 1x CN9000 VGA KVM over IP Switch
- 1x KVM cable (VGA, PS/2, USB)
- 1x USB cable (USB Type-A to Mini-B)
- 1x power adapter
- 1x control terminal block
- 1x mounting kit
- 1x foot pad set
- 1x user instructions
Diagram
Specifications
|
Connectors |
|
Console
Ports |
2
x USB Type A Female (White) |
|
1
x VGA Female (Blue) |
|
1
x Mini Stereo Jack Female (Green) |
|
1
x Mini Stereo Jack Female (Pink) |
|
KVM
Ports |
1
x SPHD Female (Yellow) |
|
1
x Mini Stereo Jack Female (Green) |
|
1
x Mini Stereo Jack Female (Pink) |
|
LAN
Ports |
2
x RJ-45 Female |
|
Virtual
Media |
1
x USB Mini-B Female |
|
Power |
2
x DC Jack |
|
Serial |
2
x RJ-45 Female |
|
Control |
1x
PS/2 Female |
|
Switches |
|
Reset |
1
x Semi-recessed pushbutton (Black) |
|
Emulation |
|
Keyboard
/ Mouse |
USB,
PS/2 |
|
LEDs |
|
Power |
2
(Green) |
|
Video |
Local
console - 1920 x 1200 @ 60 Hz |
|
Remote
console - 1920 x 1200 |
|
Power
Consumption |
DC5V:7.46W:39BTU |
|
Environmental |
|
Operating
Temperature |
0
- 50C (CN9000) |
|
0
- 40C (Power Adapter) |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.86
kg ( 1.89 lb ) |
|
Dimensions
(L x W x H) |
20.00
x 15.41 x 2.85 cm |
|
(7.87
x 6.07 x 1.12 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
