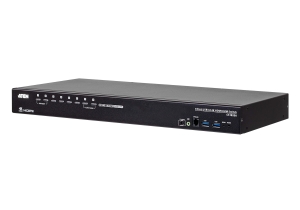

Aten CS18208 8-Port USB 3.0 4K HDMI KVM Switch
Overview
Superior video quality up to 4K DCI (4096 x 2160 @ 60Hz) and built-in 2-port
USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Cascadable to three levels controls up to 512 computers
Multi-Display feature stacks up to eight CS18208 units and display video from
up to 8 monitors (dual display / triple display / quad display /
multi-display)
Video DynaSync an exclusive ATEN technology that eliminates boot-up display
problems and optimizes the resolution when switching among different
sources
The ATEN CS18208 8-Port USB 3.0 4K HDMI KVM Switch can effectively access and
control up to 8 HDMI computers from a single USB keyboard, USB mouse, and HDMI
monitor console. The CS18208 supports high video quality up to 4K DCI (4096 x
2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS18208 can control
up to 512 computers by cascading to three levels for a single console.
Furthermore, the CS18208 supports multi-display function by stacking up to eight
CS18208 units to compare and analyze information on 8 monitors at most, which
substantially streamlines the working environment.
With two patented ATEN technologies Video DynaSync and EDID Expert, the
CS18208 can optimize display resolution, accelerate switching between ports and
power up smoothly while eliminating boot-up display problems.
Besides, the CS18208 comes with a built-in USB 3.1 Gen 1 hub delivering data
transfer rates up to 5 Gbps, allowing users to speed up operations and share USB
peripherals instantly. For user-friendly port selection methods, the CS18208
offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI,
bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is
available to enhance security protection for accessing and controlling
computers. Consolidating these advantageous functionalities, the CS18208 is
ideal for server room or computer room management applied in industries with
requirements for high-quality images and multitasking, such as enterprise,
government, production, telecom, finance, media, content provider, video
surveillance, etc.
Package Contents
- 1x CS18208 8-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting
Kit
- 2x HDMI Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
Diagram
Specifications
|
Computer
Connections |
|
Direct |
8 |
|
Maximum |
512
(via Cascade) |
|
Port
Selection |
OSD,
Hotkey, Pushbutton, RS-232 Commands |
|
Connectors |
|
Console
Ports |
1
x HDMI Female (Black) |
|
2
x USB Type A Female |
|
2
x 3.5mm Audio Jack Female (Green; 1 x front, 1 x
rear) |
|
KVM
Ports |
8
x HDMI Female |
|
8
x USB3.1 Gen1 Type B Female (Blue) |
|
8
x 3.5mm Audio Jack Female (Green) |
|
Firmware
Upgrade |
1
x RJ11 Female (Black) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
|
Switches |
|
Port
Selection |
8
x Pushbutton |
|
Reset |
1
x Semi-recessed Pushbutton |
|
Firmware
Upgrade Recovery |
1
x Slide Switch |
|
LEDs |
|
On
Line /Selected |
8
(Orange) |
|
Power |
1
(Green) |
|
USB
Link |
8
(Green) |
|
Emulation |
|
Keyboard
/ Mouse |
USB |
|
Video |
HDMI:
4096 x 2160 @ 60Hz |
|
Scan
Interval |
0 255
seconds (default: 5 secs.) |
|
Power
Consumption |
DC12V:9.77W:88BTU |
|
Environmental |
|
Operating
Temperature |
0 40C |
|
Storage
Temperature |
-20 60C |
|
Humidity |
0 80%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.11
kg ( 6.85 lb ) |
|
Dimensions
(L x W x H) |
43.24
x 21.43 x 4.40 cm |
|
(17.02
x 8.44 x 1.73 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
