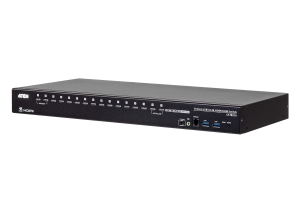

Aten CS18216 16-Port USB 3.0 4K HDMI KVM Switch
Overview
- Superior video quality up to 4K DCI (4096 x 2160 @ 60Hz) and built-in
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Cascadable to two levels controls up to 256 computers
- Multi-Display feature stacks up to eight CS18216 units and display video
from up to 8 monitors (dual display / triple display / quad display /
multi-display)
- Video DynaSync an exclusive ATEN technology that eliminates boot-up
display problems and optimizes the resolution when switching among different
sources
The ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch can effectively access
and control up to 16 HDMI computers from a single USB keyboard, USB mouse, and
HDMI monitor console. The CS18216 supports high video quality up to 4K DCI (4096
x 2160 @ 60Hz), presenting crystal-clear visuals.
To meet the needs of easy expansion and flexibility, the CS18216 can control
up to 256 computers by cascading to two levels for a single console.
Furthermore, the CS18216 supports multi-display function by stacking up to eight
CS18216 units to compare and analyze information on 8 monitors at most, which
substantially streamlines the working environment.
With two patented ATEN technologies Video DynaSync and EDID Expert, the
CS18216 can optimize display resolution, accelerate switching between ports and
power up smoothly while eliminating boot-up display problems.
Besides, the CS18216 comes with a built-in USB 3.1 Gen 1 hub delivering data
transfer rates up to 5 Gbps, allowing users to speed up operations and share USB
peripherals instantly. For user-friendly port selection methods, the CS18216
offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI,
bringing effortless and intuitive operations.
To eliminate security concern, a two-level password authorization is
available to enhance security protection for accessing and controlling
computers. Consolidating these advantageous functionalities, the CS18216 is
ideal for server room or computer room management applied in industries with
requirements for high-quality images and multitasking, such as enterprise,
government, production, telecom, finance, media, content provider, video
surveillance, etc.
Package Contents
- 1x CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting
Kit
- 2x HDMI Cables
- 2x USB 3.0 Cables
- 2x Audio Cables
- 1x Firmware Upgrade Cable
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
Diagram
Specifications
|
Computer
Connections |
|
Direct |
16 |
|
Maximum |
256
(via Cascade) |
|
Port
Selection |
OSD,
Hotkey, Pushbutton, RS-232Commands |
|
Connectors |
|
Console
Ports |
1
x HDMI Female (Black) |
|
2
x USB Type A Female |
|
2
x 3.5mm Audio Jack Female (Green; 1 x front, 1 x
rear) |
|
KVM
Ports |
16
x HDMI Female |
|
16
x USB3.1 Gen1 Type B Female (Blue) |
|
16
x 3.5mm Audio Jack Female (Green) |
|
Firmware
Upgrade |
1
x RJ11 Female (Black) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB3.1 Gen1 Type A Female (Blue; 2 x front) |
|
Switches |
|
Port
Selection |
16
x Pushbutton |
|
Reset |
1
x Semi-recessed Pushbutton |
|
Firmware
Upgrade Recovery |
1
x Slide Switch |
|
LEDs |
|
On
Line /Selected |
16
(Orange) |
|
Power |
1
(Green) |
|
USB
Link |
16
(Green) |
|
Emulation |
|
Keyboard
/ Mouse |
USB |
|
Video |
HDMI:
4096 x 2160 @ 60Hz |
|
Scan
Interval |
0 255
seconds (default: 5 secs.) |
|
Power
Consumption |
DC12V:13.12W:104BTU |
|
Environmental |
|
Operating
Temperature |
0 40C |
|
Storage
Temperature |
-20 60C |
|
Humidity |
0 80%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.54
kg ( 7.8 lb ) |
|
Dimensions
(L x W x H) |
43.24
x 21.43 x 4.40 cm |
|
(17.02
x 8.44 x 1.73 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
