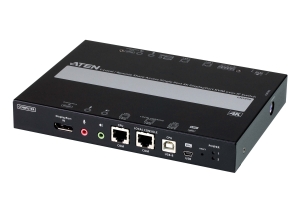

Aten CN9950 1-Local/Remote Share Access Single Port 4K DisplayPort
KVM over IP Switch
Overview
- Supports DisplayPort resolution up to 4K DCI (4096 x 2160 @
30Hz)
- Two-NIC design for dual LAN support and network redundancy
- Dual power supply to ensure seamless connectivity
- Up to 32 remote users can simultaneously share control
Features
The CN9950 KVM over IP Switch allows for remote access to digital video,
audio and virtual media of a PC or workstation, supporting DisplayPort
resolution up to 4K DCI (4096 x 2160 @ 30Hz) at both the local and remote
consoles. Built with an advanced FPGA graphics processor, the CN9950 offers
better image and video quality to enhance the user experience, while also
meeting the RS-232 standards for serial control.
For user-friendly operation, a mini USB port on the front panel is designed
as a Laptop USB Console (LUC) port for connection to a laptop, which allows the
user to access the PC/server for easy routine maintenance without requiring an
additional monitor, keyboard and mouse.
To ensure seamless connectivity, the CN9950 is equipped with dual LAN and
dual power functionality to keep operations in the server room smooth and
efficient. Its power status detection function automatically sends out event
notifications when the devices are offline (e.g. power failure) for device
status monitoring. Moreover, the CN9950 features a 5-pin Relay / DI (digital
input) terminal block allowing for remote reboot of the local server, and
receiving digital input from a connected input/alarm device for notification of
critical events.
For ease of remote management, the CN9950 WebClient Viewer supports remote
desktop access without additional software applications. The DisplayPort 4K KVM
over IP Switch provides a web-based GUI for remote access and management. In
addition, a unified multi-language interface can minimize user training time and
increase productivity.
The CN9950 is ideal for data centers, server rooms, and control rooms for
remote access management in industries with requirements for high-quality images
and multitasking, such as global organizations and companies with several office
locations where it can function as a bridge between local and remote
workplaces.
Hardware
- Supports DisplayPort resolution up to 4K DCI (4096 x 2160 @ 30Hz) at both
the local and remote consoles
- A mini USB port in the front panel can serve as a Virtual Media USB port
or a Laptop USB Console (LUC) port
- Compact and slim design for space utility optimization
- Supports a 5-pin Relay/DI control terminal for environment monitoring and
a contigency approach to virtually reboot the PC when crashed
- Provides an FPGA graphics processor for better image quality and enhanced
fps (frames per second) throughput for crisp video display
response
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP
operation
- Dual power supply and dual LAN for backup
- Provides over IP capability to DisplayPort KVM switches without over IP
functionality
- Allows access to the CN9950 via a built-in serial viewer, or via
third-party software (such as PuTTY) for Telnet and SSH
sessions
Management
- Complies to the RS-232 standards for serial control
- Up to 64 user accounts up to 32 users can simultaneously share
control
- Console access right management
- End session feature administrators can terminate running
sessions
- Event logging and Windows-based Log Server support
- Event Logging the CN9950 can record all events that take place on it and
write them to a searchable database
- Supports instant notification of critical system events via email, SNMP
trap, and Syslog
Firmware upgradable via remote access
- Out of Band support access the CN9950 through its serial port using a
dial-up connection
- Local/Remote Share Mode conveniently grants shared or exclusive console
privilege
- Port Share Mode allows multiple users to gain access to a server
simultaneously
- DDNS allows mapping of a dynamic IP address assigned by a DHCP server to a
host name
- Supports export/import of user account and configuration
settings
- Supports permission-controlled browser operation
- Supports IPv6
Easy-to-Use Interface
- Browser-based and AP GUIs offer a unified multi-language interface to
minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac, Linux, Sun)
- Multibrowser support (IE, Firefox, Safari, Opera, Chrome)
- Browser-based UI in pure Web technology allows administrators to perform
administrative tasks without pre-installed Java software package
requirements
- Full-screen or sizable and scalable Virtual Remote Desktop
- Magic Panel with configurable function for quick launch
Advanced Security
- Smart Card/CAC Reader support
- External authentication support: RADIUS, LDAP, LDAPS, and MS Active
Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure
users logging in from browsers
- Flexible encryption design allows users to choose any combination of
56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent
keyboard/mouse, video, and virtual media data encryption
- Supports IP/MAC Filter
- Supports password protection
- Private CA
Virtual Media
- Virtual media enables file applications, OS patching, software
installation and diagnostic testing
- Works with USB-enabled servers at OS and BIOS level
- Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC
hard drives, folders and ISO images
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data
transfer speed; monochrome color depth, threshold, and noise settings can be
adjusted for compression of the data bandwidth in low-bandwidth
situations
- Full-screen video display or scalable video display
- Message Board for communication among remote users
- On-screen keyboard with multi-language support
- Mouse DynaSync automatically synchronizes the local and remote mouse
movements
- Supports Exit Macros
- BIOS-level access
