All stock codes associated to this product
CE924ATU, CE924-AT-U, KVACE924, KVA-CE-924, 4710469340611

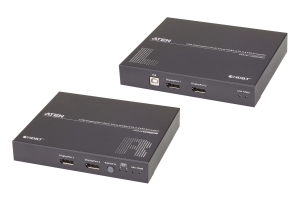

Aten CE924 USB DisplayPort Dual View HDBaseT 2.0 KVM Extender
(4K@300ft for Single View)
Overview
- Allows dual view DisplayPort access to a computer and KVM control from a
remote console
- Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a /
2L-2910 Cat 6 cable
- Supports 4 ports USB 2.0 full speed hub on the receiverallowing to connect
up to 4 various USB 2.0 peripheral
- Long distance with superior video quality
- - HDBaseT Standard mode up to 4K @ 300 ft (Cat 6 / 6a / 2L-2910); (single
view only; dual-view resolution up to 1080P)
- - HDBaseT Long-Reach mode up to 1080P @ 500 ft (single view only;
dual-view resolution up to 720P)
The ATEN CE924 USB DisplayPort Dual View HDBaseT 2.0 KVM Extender integrates
the latest HDBaseT 2.0 technologies to deliver 4K video, stereo audio, USB, and
RS-232 signals. The HDBaseT 2.0 guarantees the most reliable transmission on the
market as well as it provides long-reach capability that extends Full HD 1080P
signals up to 500 feet. In addition, CE924 supports single 4K display or dual
1080p display for DisplayPort video output resolution up to 100m by using a
single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is
ideal for applications where convenient remote access is required such as
transportation control centers, medical facilities, industrial warehouses, and
extended workstations.
Package Contents
- 1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local
Unit)
- 1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote
Unit)
- 2x DisplayPort cables
- 1x pink audio jack cable set
- 1x green audio jack cable set
- 1x USB type-A to type-B cable
- 2x power adapters
- 2x mounting kits
- 1x user instructions
Diagram
