All stock codes associated to this product
BR1600MI, 4546184, UPAPCBR1600MI, UPAPC-BR1600MI, 731304346913

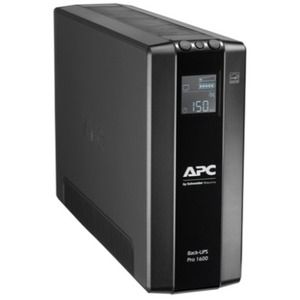

APC Schneider Electric Back-UPS Pro BR1600MI Line-interactive UPS - 1.60 kVA/960 W - Tower - AVR - 16 Hour Recharge - 2.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13 - Stepped Approximated Sine Wave
Back-UPS Pro
High Performance Computer and Electronics UPS for Premium Power Protection
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
Features- Works adequately in situations where the supply is prone to sags and surges
- Up to 2.60 minute runtime on full load to preserve critical data from power shortage interruptions
Controls/Indicators
| Status Indicators | LCD Status Display:
- Multiple Status
- Load Bar Graphs
- Battery Bar Graphs
|
Interfaces/Ports
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Management
| Alarm | Replace Battery |
| Overload |
| On Battery |
| Low Battery |
Environmental Conditions
| Thermal Dissipation | 21.50 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Sound Emission (A-Weighted) | 45 dB(A) |
Technical Information
| Application/Usage | Workstation |
| Tablet |
| Surveillance System |
| Storage Device |
| Smartphone |
| Router |
| Office |
| Multimedia Device |
| Modem |
| Mission Critical Equipment |
| Home |
| Computer |
| Business |
| Gaming Console |
| Equipment |
| Electronic |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| AVR | Yes |
| Number of Surge-only Outlets | 2 |
| Transfer Time | 0 ns |
| Receptacle Detail | 8 x IEC 60320 C13 |
Physical Characteristics
| Weight (Approximate) | 10.90 kg |
| Form Factor | Tower |
| Height | 100 mm |
| Width | 250 mm |
| Depth | 382 mm |
Battery Information
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 10.40 Minute |
| Backup/Run Time (Full Load) | 2.60 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Water-proof |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 16 Hour |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Surge Energy Rating | 509 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Input Voltage Range | 176 V AC - 294 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | BR1600MI |
| Manufacturer Website Address | https://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Model | BR1600MI |
| Product Name | Back-UPS Pro BR1600MI 1.6KVA Tower UPS |
| Product Line | Back-UPS Pro |
| Product Series | BR |
| Brand Name | Schneider Electric |
