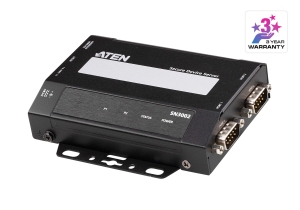

ATEN Altusen SN3000 series Secure Device Servers are external IP-based
network devices that securely connect legacy serial RS-232 devices to an
Ethernet network to be accessed remotely from a computer located anywhere,
allowing you to expand the number of serial ports for any host computer over a
network.
The SN3000 series is especially suited for industrial process control
applications, given the abundant use of the Supervisory Control and Data
Acquisition (SCADA) systems across many industries for collecting data from
PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally
translates data between serial and Ethernet formats, and facilitates access to
the data from all data collection instruments from local and remote sites
through an Ethernet network.
The SN3000 series has a number of useful operation modes. It supports secure
TCP server / client, secure serial tunneling server / client, secure Real COM,
and console management modes for security-critical applications, such as
telecom, access control, and remote site management.
Package Contents
- 1x Secure Device Server
- 1x power adapter
- 1x terminal block
- 1x foot pad set (4 pcs)
- 1x DIN rail mount kit
- 1x user instructions
Diagram
Specifications
|
Connectors |
|
Serial |
2
x DB-9 Male |
|
Network |
1
x RJ-45 Female |
|
Power |
1
x DC Jack |
|
1
x 3-pole Terminal Block |
|
Switches |
|
Reset |
1
x Semi-recessed Pushbutton |
|
LEDs |
|
Power |
1
(Green) |
|
Status |
1
(Yellow Green/Red) |
|
10/100
Mbps |
2
(Green/Orange) |
|
Ports |
2
(Green/Orange) |
|
Input
voltage |
DC
Jack: 9VDC (Power Adapter: 9VDC100-240VAC
50~60 Hz) |
|
Terminal
Block: 9-48 VDC |
|
Power
Consumption |
DC9V:0.769W:4BTU |
|
DC48V:0.939W:4BTU |
|
Interfaces |
|
Serial |
RS-232:
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
Baud
Rate: 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200,
38400, 57600, 115200, 230400, 460800, 921600
bps |
|
Data
Bits: 5, 6, 7, 8 |
|
Parity:
None, Even, Odd, Space, Mark |
|
Stop
Bits: 1, 1.5, 2 |
|
Flow
Control: RTS/CTS, DTR/DSR, XON/XOFF |
|
Network |
10/100
Base TX |
|
Built-in
1.5 kV Magnetic Isolation Protection |
|
Compliance |
EMC:
EN 55032/35 |
|
EMI:
CISPR 32, FCC Part 15B Class A |
|
EMS: |
|
IEC
61000-4-2 ESD: Contact: 4 kV; Air: 8 kV |
|
IEC
61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m |
|
IEC
61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV |
|
IEC
61000-4-5 Surge: Power: 2 kV (Power Adapter), 1kV (Terminal Block);
Signal: 1 kV |
|
IEC
61000-4-6 CS: 150 kHz to 10 MHz: 3 V/m; 10 kHz to 30 MHz: 3 to 1 V/m; 30
kHz to 80 MHz: 1 V/m |
|
IEC
61000-4-8 PFMF |
|
IEC
61000-4-11 DIPs |
|
Safety:
UL 60950-1 and UL 62368-1 standards compliant |
|
RoHS |
|
Environmental |
|
Operating
Temperature |
0
- 60C |
|
Storage
Temperature |
-40
- 75C |
|
Humidity |
5
~ 95% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.21
kg ( 0.46 lb ) |
|
Dimensions
(L x W x H) |
9.80
x 11.70 x 2.60 cm |
|
(3.86
x 4.61 x 1.02 in.) |
|
Installation |
Desktop,
Wall Mounting, Din-Rail Mounting, Rack Mounting (with
VE-RMK1U) |
|
Others |
Rack
mounting kit (VE-RMK1U) is sold separately. |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
