All stock codes associated to this product
VE1901AEUTATU, VE1901AEUT-AT-U, KVAVE1901AEUT, KVA-VE1901AEUT

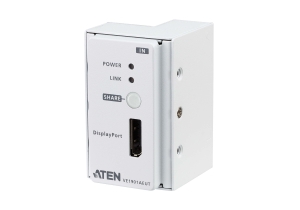

Aten DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate /
PoH
Overview
- Extends DisplayPort signals with superior video quality over a single Cat
5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- 4K up to 40 m
- 1080p up to 70 m
- Built-in PoH (Power over HDBaseT) function the VE1901AEUT receives power
supply from the HDBaseT output port
- Designed to mount in a 1-gang junction box with EU wall plate
- Share function the VE1901AEUT can remotely switch source when connecting
to a compatible receiver, e.g., VP1421
The ATEN VE1901AEUT DisplayPort HDBaseT-Lite transmitter delivers 4K signals
up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users
to stabilize DisplayPort signal transmission with support of Deep Color and
embedded HD lossless audio formats. During high-quality video transmission, the
transmitter can resist signal interference with the equipped HDBaseT
Anti-jamming technology and offer a reliable signal extension.
The VE1901AEUT can be easily mounted in a 1-gang junction box with EU wall
plate, concealing bulky cable setups and presenting the needed information in
sight. In addition, with built-in PoH (Power over HDBaseT) function, the
VE1901AEUT receives power supply from a connected PoH PSE (Power Source
Equipment) supported receiver and streamlines complex power line
deployment.
With the share function, the VE1901AEUT can remotely switch source when
connecting to a compatible receiver, e.g., VP1421, bringing users for more
convenient AV extension. This compact transmitter provides a neat and simple
installation on walls or tables, enabling users to elegantly immerse their AV
applications into any environment. Therefore, the VE1901AEUT is ideal for use in
meeting rooms, digital educational environments or any application requiring
stable high-quality transmission and effortless installation.
Package Contents
- 1x VE1901AEUT DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate /
PoH
- 1x 5-pin terminal block
- 1x rubber pad set (4 pcs)
- 1x faceplate
- 2x pan head screws
- 4x PF screws
- 1x power adapter
- 1x user instructions
Diagram
Specifications
|
Video
Input |
|
Interfaces |
1
x DisplayPort Female (Black) |
|
Impedance |
100 |
|
Max.
Distance |
3
m |
|
Video |
|
Max.
Data Rate |
10.2Gbps
(3.4Gbps per lane) |
|
Max.
Pixel Clock |
297
MHz |
|
Compliance |
DisplayPort
(Deep Color, 4K) |
|
HDCP
Compatible |
|
Max.
Resolutions / Distance |
Up
to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60m
(Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) |
|
*4K
supported: |
|
4096
x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Audio |
|
Input |
1
x DisplayPort Female (Black) |
|
Control |
|
RS-232
Channel |
1
x Terminal Block (3 pole, TX/RX/GND, Green) |
|
Contact
Out |
1
x Terminal Block (2 pole, DO/GND, Green) |
|
Connectors |
|
Unit
To Unit |
1
x RJ-45 Female |
|
Power |
1
x Terminal Block (2 pole, +5V/GND, Green) or |
|
1
x RJ-45 Female (POH) |
|
Power
Consumption |
DC5V:2.97W:14BTU |
|
POH:3.71W:17BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0%
- 80% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.20
kg ( 0.44 lb ) |
|
Dimensions
(L x W x H) |
6.86
x 4.44 x 5.00 cm |
|
(2.7
x 1.75 x 1.97 in.) |
|
Faceplate
Dimensions (L x W x H) |
8.60
x 8.60 x 1.60 cm |
|
(3.39
x 3.39 x 0.63 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
