HOME / Back -> Power Supplies -> 600W - 699W -> CoolerMaster

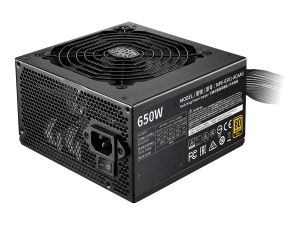

CoolerMaster MWE GOLD 650 - v2 Power Supply - ATX 12V, 120mm Fan, Non-modular, 80 PLUS Gold
  • HDB Fan Bearing, SATA(8), PC-E 6+2(4), 1500RPM, 140x150x86m, 17.9dBA

IMG 1 of 3
Our Price:
$140.45
RRP:
$159.50
You Save:
$19.05
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
498026
(?) Brand:
CoolerMaster Web Site
Manuf No:
MPE-6501-ACAAG-AU
MPE6501ACAAGAU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MPE6501ACAAGAU, MPE-6501-ACAAG-AU, 4719512105979

Coolermaster MWE GOLD 650 - V2 80 PLUS GOLD CERTIFIED ATX POWER SUPPLY UNIT



Overview

  • 80 Plus Gold Efficiency
  • 2 EPS Connectors
  • 120mm HDB Fan
  • High Temperature Resilience
  • Flat Black Cables
  • 5 Year Warranty

Specifications

MODEL

MPE-6501-ACAAG

ATX VERSION

ATX 12V

PFC

Active PFC

INPUT VOLTAGE

90-264V

INPUT CURRENT

8-4A

INPUT FREQUENCY

47-63Hz

DIMENSIONS (L X W X H)

140 x 150 x 86 mm

FAN SIZE

120mm

FAN BEARING

HDB

FAN SPEED

1500 RPM

NOISE LEVEL @ 20%

0 dBA

NOISE LEVEL @ 50%

17.9 dBA

NOISE LEVEL @ 100%

23.4 dBA

EFFICIENCY

90% @ Typical Load

80 PLUS RATING

80 PLUS Gold

ERP 2014 LOT 3

Yes

OPERATING TEMPERATURE

0-50C

POWER GOOD SIGNAL

100 - 150 ms

HOLD UP TIME

>16ms at 100% Load

MTBF

>100,000 Hours

PROTECTIONS

OVP, OPP, OTP, SCP, OCP, UVP

REGULATORY

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

ATX 24-PIN CONNECTORS

1

EPS 4+4 PIN CONNECTORS

1

EPS 8 PIN CONNECTOR

1

SATA CONNECTORS

8

PERIPHERAL 4-PIN CONNECTORS

4

PCI-E 6+2 PIN CONNECTORS

4

SERIES

MWE Gold Series

80 PLUS

Gold

MODULAR

Non Modular

WATTAGE

500 to 750W



No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
