Specifications |
|
|
Compatibility |
Windows
DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP
Embedded, XP, Vista, 7, 8, 8.1, 10 |
|
Windows
Server 2003, 2008 R2, 2012, 2012 R2, 2016,
2019 |
|
Mac
OS X 10.4 to 10.10 |
|
Linux
kernel 2.6.x to 4.11.x LTS Versions
only |
|
Warranty
Information |
|
|
Warranty |
2
Years |
|
Connector(s) |
|
|
1
- Connector Type(s) |
PCI
Express x1 |
|
1
- Internal Ports |
LP4
(4 pin; Large Drive Power) |
|
2
- External Ports |
DB-9
(9 pin, D-Sub) |
|
Environmental |
|
|
Operating
Temperature |
-10C
to 80C (14F to 176F) |
|
Storage
Temperature |
-20C
to 100C (-4F to 212F) |
|
Humidity |
5~85%
RH |
|
Hardware |
|
|
Ports |
2 |
|
Interface |
Serial |
|
Bus
Type |
PCI
Express |
|
Card
Type |
Standard
Profile (LP bracket incl.) |
|
Port
Style |
Integrated
on Card |
|
Chipset
ID |
ASIX
- MCS9922CV-AA |
|
Packaging
Information |
|
|
Package
Height |
1.3
in [32 mm] |
|
Package
Length |
6.9
in [17.5 cm] |
|
Shipping
(Package) Weight |
5.3
oz [151 g] |
|
Package
Width |
5.7
in [14.5 cm] |
|
Performance |
|
|
Serial
Protocol |
RS-232 |
|
Max
Baud Rate |
460.8
Kbps |
|
FIFO |
128
Bytes |
|
Physical
Characteristics |
|
|
Weight
of Product |
2.2
oz [61 g] |
|
Color |
Green |
|
Material |
Steel |
|
Product
Length |
4.1
in [10.5 cm] |
|
Product
Width |
4.7
in [12 cm] |
|
Product
Height |
0.8
in [20 mm] |
|
Software |
|
|
OS
Compatibility |
Windows
DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP
Embedded, XP, Vista, 7, 8, 8.1, 10 |
|
Windows
Server 2003, 2008 R2, 2012, 2012 R2, 2016,
2019 |
|
Mac
OS X 10.4 to 10.10 |
|
Linux
kernel 2.6.x to 4.11.x LTS Versions
only |
|
Special
Notes / Requirements |
|
|
Note |
Selectable
power output on pin 9 of the serial port |
|
What's
in the Box |
|
|
1
- Included in Package |
2

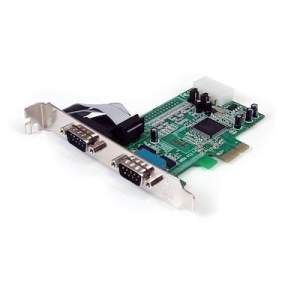

Port PCI-Express Serial Card |
|
2
- Included in Package |
Low
Profile Brackets |
|
1
- Included in Package |
Driver
CD |
|
Instruction
Manual |
