All stock codes associated to this product
VLUC2H, VL-UC2H, 9180670001990, II41618

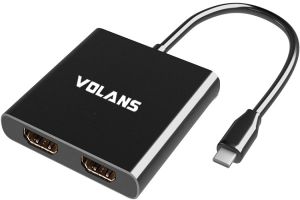

Volans VL-UC2H Aluminium USB-C to Dual HDMI 2.0 Adapter -
4K@60Hz
Overview
Dual Monitor from a Single USB-C Output
The adapter allows you to connect two 4K monitors running independently for
maximum productivity. The extra screen lets you display different applications
on separate monitors simultaneously perfect for editing 4K video, creating CAD
drawings or reviewing medical imagery.
Perfect picture quality for resource intensive
task
The adapter lets you run resource intensive applications without using a lot
of the computers resources and effecting its performance.
Attention: On Mac devices, ONLY Mirror Mode, CAN NOT extend two different
Screen, due to Mac OS limitation
Specifications
|
WARRANTY
INFORMATION |
|
Warranty |
1
Year |
|
HARDWARE |
|
4K
Support |
Yes |
|
Bus
Type |
USB-C |
|
Chipset
ID |
VL103-Q3+EM5200 |
|
Displays
Supported |
2 |
|
PERFORMANCE |
|
Maximum
Digital Resolutions |
USB-C
DP1.4: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST):
4K@60Hz |
|
USB-C
DP1.2: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST):
4K@30Hz |
|
MST
mode only compatible with Windows OS. |
|
Only
SST is supported on Mac OS. |
|
CONNECTOR(S) |
|
Connector
Type(s) |
1
USB Type-C (24 pin) USB 3.0 Male |
|
2
HDMI 2.0 (19 pin) Female |
|
SPECIAL
NOTES / REQUIREMENTS |
|
Note |
Not
all USB-C ports support the full functionality of the USB Type-C standard.
Ensure that your host USB-C port supports DP alt
mode. |
|
A
4K-capable display is required to achieve 3840 x 2160p resolution (4K is
also known as 4K x 2K) |
|
OS
Suport |
Windows7/8/10,
Google Chrome OS, Mac OS X Yosemite, Mac OS X El Capitan,Mac OS sierra or
above. |
|
POWER |
|
Power
Source |
USB-Powered |
|
ENVIRONMENTAL |
|
Humidity |
0~90%
RH (Non-condensing) |
|
Operating
Temperature |
0C
to 40C |
|
Storage
Temperature |
5C
to 45C |
|
PHYSICAL
CHARACTERISTICS |
|
Color |
Black |
|
Enclosure
Type |
Aluminium |
|
WHATS
IN THE BOX |
|
Included
in Package |
1
VL-UC2H |
|
1-
User Manual |
