All stock codes associated to this product
TSS770WSLBKIT, TSS-770-W-S-LBKIT

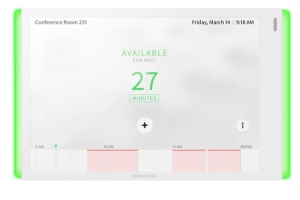

Crestron 7 in. Room Scheduling Touch Screen, White Smooth, includes
one TSW-770-LB-W-S light bar
Overview
A stylish and versatile wall mount touch screen designed specifically for
enterprise room scheduling applications. Integrates directly with various room
scheduling services. Installs quickly and easily, with simple web-based
configuration and cloud-based management and requires no control system or
programming.
Includes one TSW770LB series room availability light bar with the touch
screen for a complete room scheduling solution.
Specifications
|
Room Scheduling
Support |
|
Microsoft Teams
Panels |
Includes native support
for Microsoft Teams Panels scheduling application1,2 |
|
Languages |
|
Crestron
Fusion |
Chinese (Simplified),
Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English
(UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian,
Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish,
Swedish |
|
Wired
Communications |
|
Ethernet |
100 Mbps, auto
switching, auto negotiating, auto discovery, full/half duplex, TCP/IP,
UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE
802.1X, SNMP, IPv4 or IPv6, Active Directory service authentication, HTTPS
web browser setup, XiO Cloud client, IEEE 802.3at
compliant |
|
USB |
USB 2.0 host for light
bar or hallway sign3 |
|
Wireless
Communications |
|
Transceiver |
IEEE 802.11a/b/g/n/ac
Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via
DHCP |
|
Security |
64 and 128-bit WEP, WPA
and WPA2-PSK with TKIP and AES |
|
Range |
Up to 50 ft (15 m),
subject to site-specific conditions |
|
Bluetooth
Hardware |
Crestron Bluetooth
beacon4 |
|
Touch Screen
Display |
|
Display
Type |
TFT active matrix color
LCD |
|
Size |
7 in. (178 mm)
diagonal |
|
Aspect
Ratio |
16:10
WXGA |
|
Resolution |
1280 x 800
pixels |
|
Brightness |
350 nits
(cd/m) |
|
Contrast |
850:01:00 |
|
Color
Depth |
24 bit, 16.7M
colors |
|
Illumination |
Edgelit LED with auto
brightness control |
|
Viewing
Angle |
80 horizontal, 80
vertical |
|
Touch
Screen |
Projected capacitive,
5-point multitouch capable |
|
Buttons |
|
Hard
Keys |
(6) Virtual buttons in
collapsible universal tool bar, perbutton show/hide, preconfigured with
icons for Power, Home, Lights, Up, Down, and
Microphone |
|
Reset |
(1) Pin hole on rear
panel for hardware reset |
|
Audio |
|
Features |
Built-in speakers for
touch feedback and alerts |
|
Connectors |
|
LAN
PoE |
(1) 8-pin RJ45
connector, female, with 2 LED indicators; |
|
100Base-TX Ethernet
port; |
|
PoE+ PD
port; |
|
Green and yellow LEDs
indicate Ethernet port status |
|
USB |
(2) USB Type A
connectors, female; |
|
USB 2.0 host
ports; |
|
For optional room
scheduling accessories |
|
Power |
|
PoE (Power over
Ethernet) |
IEEE 802.3at Type 2
compliant PoE+ PD (Powered Device); |
|
- Requests 15 Watts
from an 802.3at Type 2 PSE with LLDP advanced power
management; |
|
- Requests 30 Watts
(PoE+ Class 4) from an 802.3at Type 2 PSE without
LLDP; |
|
- Requests 15.4 Watts
(PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE |
|
Environmental |
|
Temperature |
41 to 104 F (5 to 40
C) |
|
Humidity |
10% to 90% RH
(noncondensing) |
|
Heat
Dissipation |
49
BTU/hr |
|
Construction |
|
Housing |
Plastic, smooth black
or white finish, edge-to-edge glass with black or white
surround |
|
Mounting |
Surface mount over a 2
or 3 gang US electrical box, 2 gang European (DIN 49073) electrical box,
or 2 gang UK (BS 4662) electrical box; |
|
Lectern mount over a 2
in. H x 3 3/4 in. W (51 mm H x 96 mm W) cutout; |
|
1-3/8 in. (35 mm)
minimum mounting depth; |
|
Wall mount, surface
mount, and rack options available separately |
|
Dimensions |
|
Height |
4.17 in. (106
mm) |
|
Width |
7.30 in. (185
mm) |
|
Depth |
2.26 in. (57
mm) |
|
Dimensions do not
include the mounting bracket or addon accessories |
|
Weight |
14.11 oz (400
g) |
|
Compliance |
Regulatory Model:
M201923002 |
|
IC, CE, FCC Part 15
Class B digital
device |
