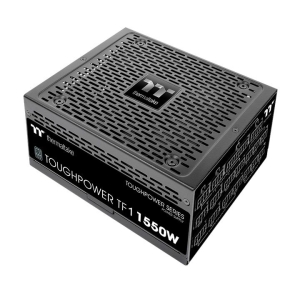

Thermaltake Toughpower TF1 1550W - TT Premium Edition
Overview
80 PLUS Titanium certified fully modular PSU with 140mm Pulse Width
Modulation fan.
Designed for overclockers, users with high-end system demands, and more, the
Toughpower TF1 Titanium 1550W delivers 80 PLUS Titanium efficiency to satisfy
their needs. Besides the critical features like <30mV low ripple noise,
extremely strict Voltage Regulation < 2%, and Hold up time> 16
milliseconds, Thermaltake also added three vital features to make sure
Toughpower TF1 Titanium 1550W can consistently and safely power up the whole
system. Firstly, Low Transient Response Secondly, Inrush current <50 Ampere.
Lastly, 12V OCP protection is covered. With all the advantages plus a 10-years
warranty, the Toughpower TF1 Titanium 1550W can satisfy the market, where PC
enthusiasts are looking for a premium power supply with all the latest
features.
Specifications
|
P/N |
PS-TPD-1550FNFATx-1 |
|
WATTS |
1550W |
|
RGB
FAN |
No |
|
FORM
FACTOR |
ATX |
|
MODEL |
TTP-1550AH3FCT |
|
MAX.
OUTPUT CAPACITY |
1550W |
|
PEAK
OUTPUT CAPACITY |
1860W |
|
COLOR |
Black |
|
DIMENSION
( W / H / D ) |
150mm(W)
x 86mm(H) x 180mm(D) |
|
WEIGHT |
2.4kg |
|
PFC
(POWER FACTOR CORRECTION) |
Active
PFC |
|
POWER
GOOD SIGNAL |
100-500
msec |
|
HOLD
UP TIME |
>
16msec at 100% of full load |
|
INPUT
CURRENT |
18A
max |
|
INPUT
FREQUENCY RANGE |
47Hz-63Hz |
|
INPUT
VOLTAGE |
100V
240V~ |
|
OPERATING
TEMPERATURE |
0C
to + 50C |
|
OPERATING
HUMIDITY |
20%
to 90%,non-condensing |
|
STORAGE
TEMPERATURE |
-20C
to + 70C |
|
STORAGE
HUMIDITY |
5%
to 95%, non-condensing |
|
COOLING
SYSTEM |
14cm
PWM fan |
|
EFFICIENCY |
Meet
80 PLUS Titanium at 115Vac input. |
|
MTBF |
120,000
hrs minimum |
|
SAFETY
APPROVAL |
CE/cTUVus/TV/FCC/BSMI/EAC/
CCC |
|
PCI-E
CONNECTOR |
8 |
