All stock codes associated to this product
SRT2200RMXLI-NC, SRT2200RMXLINC, 3336031, UPAPCSRT2200RMXLIN, UPAPC-SRT2200RMXLI-N, 731304327561

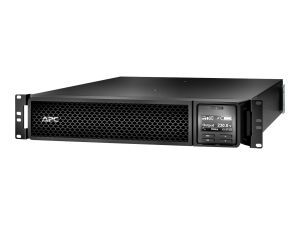

APC Smart-UPS SRT 2200VA RM - UPS - 1980 Watt - 2200 VA - Lead Acid - with APC UPS Network Management Card
Overview
High density, double-conversion on-line power protection with scalable
runtime.
Includes: CD with software, Country-specific detachable power cord,
Documentation CD, Installation guide, Network management card, Rack mounting
brackets, Rack mounting hardware, Rack mounting support rails, USB cable,
Warranty card
Specifications
|
Output |
|
|
Max
Configurable Power (Watts) |
1.98kWatts
/ 2.2kVA |
|
Output
Voltage Distortion |
Less
than 2 % |
|
Output
Frequency (sync to mains) |
50/60
Hz +/- 3 Hz Sync to mains |
|
Other
Output Voltages |
220 V,
240 V |
|
Load
Crest Factor |
3:01 |
|
Topology
|
Double
conversion online |
|
Waveform
type |
Sine
wave |
|
Bypass
|
Built-in
bypass |
|
Input |
|
|
Input
frequency |
40
- 70 Hz Auto-sensing |
|
Input
voltage range for main operations |
100
- 275 Adjustable (half load)V |
|
Number
of Power Cords |
1 |
|
Other
Input Voltages |
220 V,
240 V |
|
Batteries
&Runtime |
|
|
Battery
type |
Lead-acid
battery |
|
Included
Battery Modules |
1 |
|
Typical
recharge time |
3hour(s) |
|
Nominal
Battery Voltage |
72
V |
|
Replacement
Battery |
APCRBC141 |
|
Expected
Battery Life (years) |
03-May |
|
RBC
Quantity |
1 |
|
Battery
Charge Power (Watts) |
122 Watts |
|
Extendable
Run Time |
1 |
|
Communications
&Management |
|
|
Interface
Port(s) |
RJ-45
10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
|
Pre-Installed
SmartSlot Cards |
AP9631 |
|
Control
panel |
Multifunction
LCD status and control console |
|
Audible
Alarm |
Audible
and visible alarms prioritized by severity |
|
Emergency
Power Off (EPO) |
Yes |
|
Available
SmartSlot Interface Quantity |
1 |
|
Surge
Protection and Filtering |
|
|
Surge
energy rating |
340Joules |
|
Physical |
|
|
Maximum
Height |
85MM,
8.5CM |
|
Maximum
Width |
432MM,
43.2CM |
|
Maximum
Depth |
584MM,
58.4CM |
|
Net
Weight |
25.0KG |
|
Shipping
weight |
34.02KG |
|
Shipping
Height |
246MM,
24.6CM |
|
Shipping
Width |
599MM,
59.9CM |
|
Shipping
Depth |
810MM,
81.0CM |
|
Color
|
Black |
|
Units
per Pallet |
12 |
|
Environmental |
|
|
Operating
Temperature |
0
- 40 C |
|
Operating
Relative Humidity |
0
- 95 (Non-condensing) % |
|
Operating
Elevation |
0
- 3048meters |
|
Storage
Temperature |
-20
- 50 C |
|
Storage
Relative Humidity |
0
- 95 (Non-condensing) % |
|
Storage
Elevation |
0
- 15240meters |
|
Audible
noise at 1 meter from surface of unit |
55.0dBA |
|
Online
thermal dissipation |
535.0BTU/hr |
|
Protection
Class |
IP20 |
|
Conformance |
|
|
Approvals
|
CE,
CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM,
VDE |
|
Standard
warranty |
3
years repair or replace (excluding battery) and 2 years for
battery |
|
Sustainable
Offer Status |
|
|
RoHS
|
Compliant |
