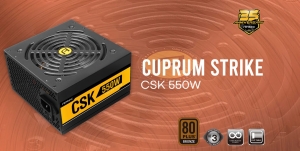

Antec CSK 550W Cuprum Strike Power Supply
Overview
Antecs new generation Cuprum Strike Bronze power supply is crafted for
quality, efficiency, and performance. Featuring 80 PLUS BRONZE certification, a
quiet 120 mm fan, CSK Bronze includes Antecs 3 year warranty. The CircuitShield
suite of industrial-grade protections ensure that the power delivered to your
system is safe and reliable in any environment.
80 PLUS Bronze certified
Delivering up to 88% efficiency, the CSK Bronze Series utilize active PFC,
giving you a cooler, quieter system, all powered by Continuous Power.
3-Year Warranty
We stand by the quality and safety of the CSK Bronze Power Supplies, offering
a 3-year parts and labor warranty and unlimited access to our incomparable
technical support and customer service.
Specifications
Product
Name |
CSK550 |
Model
Name |
X5000A253HC-20 |
Type |
ATX
12V 2.31 |
Dimension |
140(L)
x 150(W) x 86(H) |
Warranty |
3
years |
Input
Voltage |
100
~ 240 VAC |
Input
Current |
10A
~ 5A |
Input
Frequency Range |
50Hz
~ 60Hz |
PFC |
Active
PFC |
Power
Good Signal |
100
~ 500ms |
Efficiency |
88% Typically |
Protection |
OVP/UVP/SCP/OPP/NLO/OTP |
Output
Capacity |
550W |
Operation
Temperature |
0
~ 40C |
Regulatory |
cTUVus/TUV/CB/RCM/CE/CCC/FCC |
Fan |
120mm
Silence Fan |
Certifications |
80
Plus Bronze |
Connector |
1
x MB 24(20+4) Pin |
1
x 8(4+4) Pin EPS 12V |
2
x 8(6+2) Pin PCI-E |
7
x SATA |
2
x Molex |
1
x FDD |
UPC# |
0-761345-11702-9
CSK550 AU |
Net
Weight |
1.53
Kgs |
Gross
Weight |
1.71
Kgs |
