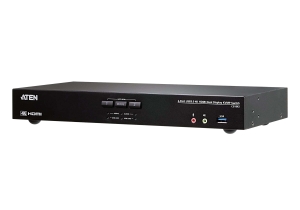

Aten 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch
Overview
- Superior video quality 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-port
USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Quad-Display connect two CS1842 units for a quad-display setup controlled
by one operator
- Supports Video DynaSync
- Computer selection via pushbuttons, hotkeys, mouse, remote port selector,
and RS-232 commands
Features
- One USB keyboard, mouse and two HDMI monitors control two HDMI computers
and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM
switches
- Video DynaSync an exclusive ATEN technology that optimizes display
resolution, speeds up switching between systems, and ensures that windows
opened on an extended desktop will not revert to their default configurations
on the main display when switching between ports
- Supports superior video quality 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI
(4096 x 2160 @ 60Hz)
- Computer selection via pushbuttons, hotkeys, mouse1, remote port selector,
and RS-232 commands2
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer
rates
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB peripheral, and stereo audio
focus3
- Multilingual keyboard mapping supports English, French, Japanese, and
German keyboards
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD audio3
- Power on detection
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by
USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive
RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844
user manual.
3. HD audio through HDMI channel cannot be switched
independently.
