IOGEAR GWHDMS52MB Long-Range Wireless Video 5x2 Matrix PRO

iOgear Long-Range Wireless Video 5x2 Matrix PRO with 1 Receiver

Overview

Simultaneously transmit HD content wirelessly to 4 displays while viewing different HD content on a 5th local display.

Wireless HDMI - Multi-Display Solution

Simultaneously transmit HD content wirelessly to 4 displays while viewing different HD content on a 5th local display. IOGEAR's Long Range Wireless 5x2 HDMI Matrix PRO with Multicast is the first of its kind to wirelessly send uncompressed Full HD 1080p with support for 3D content up to an astonishing 200 feet*, including the ability of multicasting up to a total of 4 wireless HDMI receivers.

*Distances may vary depending on environment. Solid and non-porous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distances

Wireless Matrix

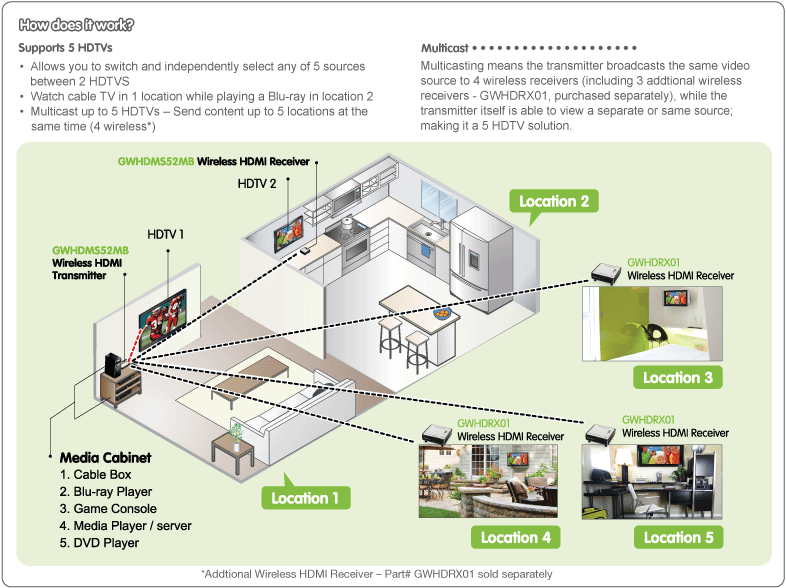

The Long Range Wireless 5x2 HDMI Matrix PRO is setting a new standard in wireless connectivity, flexibility, convenience and decor. Natively, the kit consists of a Transmitter with connections for HDMI and Component (5-port switch / matrix) and a Wireless Receiver. It also provides a loop through (local port) on the transmitter for an advanced 2 HDTV set up. The wireless matrix feature allows a user to switch and independently select any of the 5 sources between 2 HDTVs, creating 2 completely different video zones, making this one of the biggest breakthroughs in wireless A/V solutions available today.

• Wireless uncompressed Full HD 1080p video up to 200 feet* through standard home walls
• Built in 5x2 Matrix - Switch & independently select any of 5 sources between 2 HDTVs
• Location 1: HDTV can connect to transmitter's loop-through (local) port
• Location 2: HDTV can receive content from wireless receiver**
• Multicast - Send video to up to 5 HDTVs simultaneously 4 wireless)***
• Send video from a Blu-ray player, DVR, cable boxe, game console, computer/laptop, media streaming devices,and media servers
• Supports 3D content and 5.1 channel digital audio
• Video Resolutions:
• 480p, 720p, 1080i and 1080p (24/30/60fps)
• HDMI Inputs / Outputs:
• Wireless Transmitter:
• 4 x HDMI Connection In
• 1 x Component In
• 1 x HDMI Connection Out (local port)
• 1 x IR Out
• Wireless Receiver
• 1 x HDMI Connection Out
• 1 x IR In
• Based on WHDI Technology
• HDCP 2.0 Compliant
• Built-in Infrared (IR) pass-through allows user control over their source devices that are in a different location from the wireless receiver
• No software or driver installation needed

*Distances may vary depending on environment. Solid and non-porous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distances or loss of signal

**Note: Wireless Video Receiver Part# GWHDRX01 sold separately. Multicast Kits available. GWHDMS52MBK2 / GWHDMS52MBK3 / GWHDMS52MBK4

***Expand beyond one wireless display to multiple wireless displays with Multicast capabilities. Simply add up to 3 additional wireless receivers broadcasting to a total of 4 wireless receivers from the same HD video source.

Specifications
