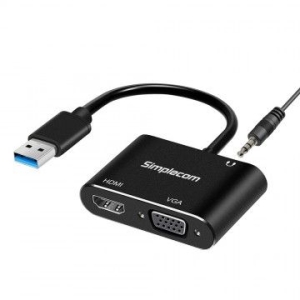

Simplecom DA316A USB to HDMI + VGA Video Card Adapter with 3.5mm
Audio
Overview
This USB to HDMI+VGA video card adapter turns a standard size USB port
(USB-A) into HDMI or VGA output with resolution up to Full HD 1080p. Compatible
with regular USB 2.0 or USB 3.0 port, its an easy way to connect HDMI or VGA
display to any PC that require additional display when the other video ports are
occupied.
This USB adapter supports mirror or extended mode. Expand your main screen to
a secondary screen that you could use two screens both for work and
entertainment. Its an easy and convenient solution to add multi-monitor
capability to a computer and extend your desktop. The HDMI and VGA ports can
output same screen simultaneously, it also has a built-in 3.5mm audio jack,
which can be connected to external speaker or headphones.
Features
- Compatible with standard size USB 2.0 or USB 3.0 port
- Support resolution up to 1080p (1920x1080)
- Compact and portable design, easy to carry
- Simple installation, built-in USB flash drive for driver
software
- USB powered, no external power required
- Aluminium casing to ensure stable performance and heat
dissipation
- HDMI port supports both video and audio, VGA output video only
- 3.5mm headphones jack for audio output
- HDMI and VGA ports can output same screen simultaneously
- Support Extended or Mirror display mode
- Compatible with Windows 7 and above
Specifications
- Input: USB-A
- Output: HDMI, VGA, 3.5mm Audio
- Resolution Support: up to 1080p (1920x1080)
- Cable Length: 15cm
- Dimension: 60mm x 39mm x 14mm (LxWxH)
- Weight: 45g
- Operating Temperature: -5 - 35C
Important Note
- While plug this adapter to your computer first time, you'll see there is a
new USB flash drive under My Computer or This PC, then double clicks setup
file inside USB Drive to install the driver. You can also download driver from
our website.
- If you have any trouble to install the driver software, try to turn off
anti-virus software temporarily before install the driver. You can turn on
again after installation.
- The USB to HDMI VGA adapter works on Windows 7 and above version only,
Windows XP and Vista are not supported.
