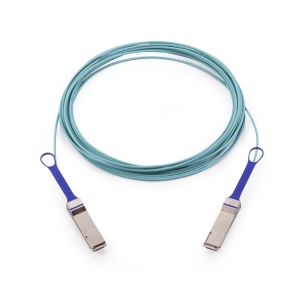

NVIDIA MFA1A00-C005 AOC Cable Ethernet 100GbE QSFP 5m
Overview
100Gb/s QSFP28 MMF Active Optical Cables
NVIDIA Networking QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser)
active optical cables are designed for use in 100Gb/s Ethernet
systems.
MFA1A00-Cxxx AOC offers high port density and configurability, and a much
longer reach than passive copper cables in the data centers. Since the AOC is
hot pluggable, it is easy to install and replace.
MFA1A00-Cxxx has a standard SFF-8665 compliant QSFP28 port on the electrical
side towards the host system. It contains four multi-mode fibers (MMF) optic
transceivers per end, each operating at data rates of up to
25Gb/s.
MFA1A00-Cxxx offers selectable retiming per lane for both its optical
transmitters and receivers for the 25Gbp/s rates, but the AOC also supports
lower bit rates without retiming. The transmitters have programmable input
equalizers and input squelch function, while the receivers have programmable
output amplitude and pre-emphasis.
These unique-quality active-fiber cable solutions provide power-efficient
connectivity for data center interconnects. They enable higher port bandwidth,
density and configurability at a low cost and reduced power requirement in the
data centers.
Rigorous production testing ensures the best out-of-the-box installation
experience, performance and durability.
Highlights
- Up to 100Gb/s data rate
- Programmable Rx output amplitude and pre-emphasis
- Programmable Tx input equalizer
- Selectable retiming
- SFF-8665 compliant QSFP28 port
- Single 3.3V power supply
- 2.2W power dissipation (typ, each end with retiming)
- Low BER
- Up to 100m length
- Hot pluggable
- RoHS compliant
- SFF-8636 compliant I2C management
interface
