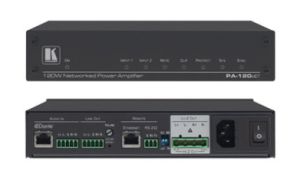

Kramer PA-120Net 120W Networked Power Amplifier
Overview
PA120Net is a highperformance, selectable HiZ (70V/100V) or LoZ (4/8) power
amplifier featuring balanced and unbalanced inputs, additional linelevel output
and Dante interface. This versatile amplifier features builtin DSP, autostandby
and maximum durability. PA120Net is suitable for a vast range of AV
installations.
- Highperformance Amplifier With builtin DSP and additional balanced stereo
linelevel output. PA120Net features flat frequency response, unmatched sonic
performance, excellent signal to noise ratio, and extraordinarily low
distortion levels.
- Adaptable to Any AV Installation Switch between LoZ and HiZ to accommodate
any type of loudspeaker installation. Select 1 Channel of 120W into a 70V/100V
line or 2 channels of 60W into 4/8.
- Easy, Scalable and CostEffective Dante Audio Networking Dante makes
networking any size audio installation easy by providing digital signal
transmission over a local area network using standard Internet protocols. The
unit is part of the expanding family of products that make up Kramers Dante
ecosystem. These products are fully compatible and integrate into any
Danteenabled system.
- Interoperability Supports AES67 and Dante allowing highperformance
interoperability between IPbased audio networking systems.
- Individual Mix Per Output Each output supports an independent input mix
with master volume, 3band parametric EQ, and selectable highpass filter.
Create one output mix and EQ settings suitable for the venue and another for
recording or cascading more amplifiers, powered speakers or subwoofers
according to any AV installation requirements.
- Professional, Studio Grade Signal Conversion Technology Includes the
latest generation 32bit advanced Digital Analog Converter architecture to
achieve excellent dynamic performance and improved tolerance to clock jitter.
Maintains the quality of the original audio signal with selectable sampling
rates up to 96 kHz.
- Durable and Reliable PA120Net is immune to failure. It includes layers of
protection against overcurrent, DC voltage at the outputs, high frequency, and
overheating with intelligent, heatsensitive fans for added
protection.
- Flexible Control Options Control locally via RS232 serial commands or
remotely via embedded web pages over Ethernet.
- Power Efficient This superefficient amplifier includes autostandby for
power saving and cost reducing operation. No need to rely on default
autostandby settings. Adjust your noise floor threshold based on exactly when
your amplifier needs to go into sleep mode and when it needs to wake
up.
- Easy Installation 19 size enables mounting in a 1U rack space with the
recommended rack adapter.
APPLICATIONS
- Midsize to large meeting rooms
- Auditoriums, lecture halls, and classrooms
- Court rooms and city halls
- Retail stores and shopping centers
- Hotel lobbies and restaurants
- Transportation hubs
Specifications
|
INPUTS |
2
Channels, on a Dante Net: On
an RJ45 connector |
|
1
Balanced Stereo Audio: +4dBu/10k,
on a 5 pin terminal block |
|
OUTPUTS |
1
Balanced Stereo Audio: Line
level, on a 5pin terminal block |
|
1
Speaker: On a 4pin large terminal
block |
|
PORTS |
1
Control via IP: On
an RJ45 connector |
|
1
RS-232: On a 3pin terminal
block |
|
AMPLIFIER |
Input
Sensitivity: Full
power @ 0.3V (10dBV) |
|
Output
Power: 2 x 60W @ 4 or 8, 1 x 120W @ 70V or
100V |
|
Class: D |
|
Maximum
Voltage Gain: 26dB
SE / 32dB BTL |
|
Dynamic
Range: 119dB |
|
Frequency
Response: 20Hz
to 20kHz @ +/1dB |
|
S/N
Ratio: 80dB, 20Hz 20kHz |
|
Audio
THD + Noise: THD+N
(1kHz @ 1W) 0.003 % |
|
Audio
2nd Harmonic: 0.08%
@ 75W RMS @ 4 6.67kHz |
|
USER
INTERFACE |
Controls: Output
volume attenuator, IP and RS232 |
|
POWER |
Source: Universal
mains operational voltage 85V AC 265V
AC |
|
Consumption: 150VA |
|
Total
System Efficiency: 89% |
|
ENVIRONMENTAL
CONDITIONS |
Operating
Temperature: 0
to +40C (32 to 104F) |
|
Storage
Temperature: 40
to +70C (40 to 158F) |
|
Humidity: 10%
to 90%, RHL noncondensing |
|
REGULATORY
COMPLIANCE (STANDARDS COMPLIANCE) |
Safety: CE,
FCC |
|
Environmental: RoHs,
WEEE |
|
ENCLOSURE |
Size:
19 desktop |
|
Type: Aluminum |
|
Cooling: Fan
ventilation |
|
ACCESSORIES |
Included: Power
cord |
|
PRODUCT
DIMENSIONS |
21.46cm
x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D,
H |
|
PRODUCT
WEIGHT |
1.1kg
(2.3lbs) approx. |
|
SHIPPING
DIMENSIONS |
40.50cm
x 29.70cm x 9.00cm (15.94" x 11.69" x 3.54" ) W, D,
H |
|
SHIPPING
WEIGHT |
1.7kg
(3.6lbs) approx. |
