The Intel RealSense D435 offers the widest field of view of all our cameras, along with a global shutter on the depth sensor that is ideal for fast moving applications.

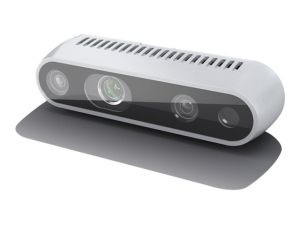

The Intel RealSense depth camera D435 is a stereo solution, offering quality
depth for a variety of applications. It's wide field of view is perfect for
applications such as robotics or augmented and virtual reality, where seeing as
much of the scene as possible is vitally important. With a range up to 10m, this
small form factor camera can be integrated into any solution with ease, and
comes complete with our Intel RealSense SDK 2.0 and cross-platform support.
Combined Solution for Development &
Productization
The D435 continues our commitment to developing cutting-edge vision sensing
products. Combining an Intel module and vision processor together into a small
form factor yields a solution ideal for both development and rapid product
creation. Paired with highly customizable software, the D435 provides a low cost
solution that is lightweight and powerful, enabling development of
next-generation sensing solutions that can understand and interact with their
surroundings.
Ideal for Low Light and Wide Field of View
The combination of a wide field of view and global shutter sensor on the D435
make it the preferred solution for applications such as robotic navigation and
object recognition. The global shutter sensors provide great lowlight
sensitivity allowing robots to navigate spaces with the lights off.
Complete Suite for Simple Integration
Depth camera D435 is part of the Intel
RealSense
D400 series of cameras, a lineup that takes Intels latest depthsensing
hardware and software packages them into easytointegrate products. Perfect for
developers, makers, and innovators looking to bring depth sensing to devices,
Intel RealSense D400 series cameras offer simple outofthebox integration and
enable a whole new generation of intelligent visionequipped
devices.
On-Chip Calibration in Seconds
Intel RealSense SDK 2.0 now provides an on-chip self-calibration option for
your D400 stereo camera. This allows camera calibration in less than 15 seconds
without the need for specialized targets. Hassle free!

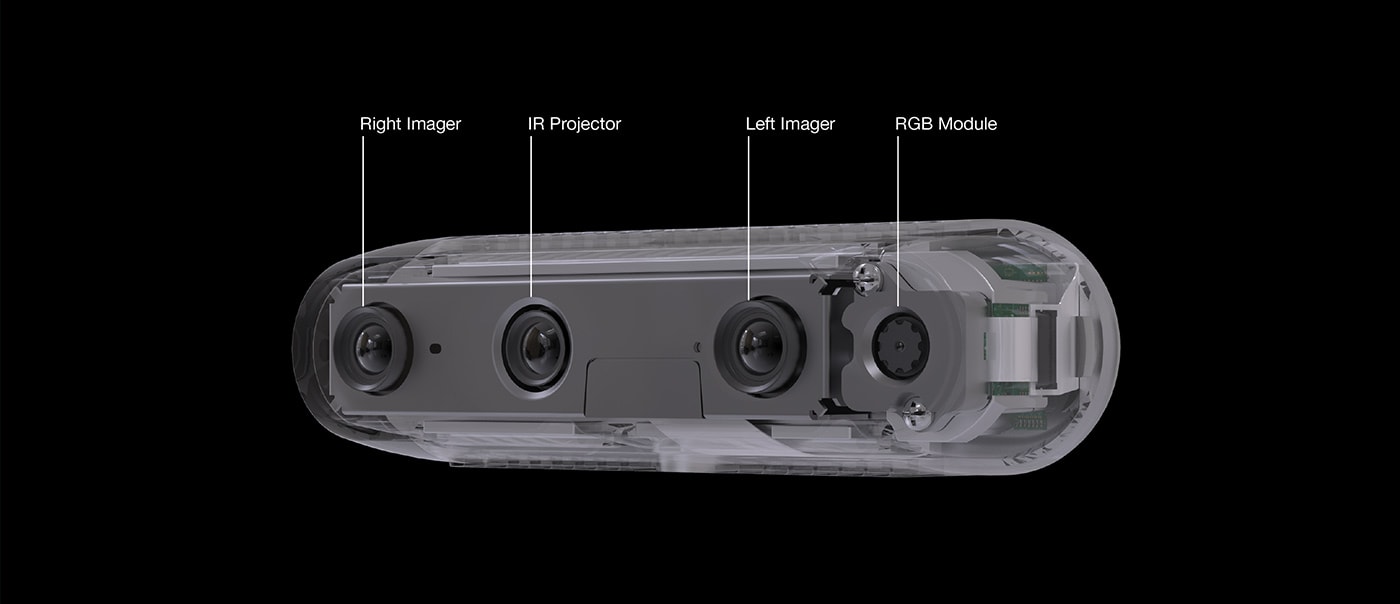

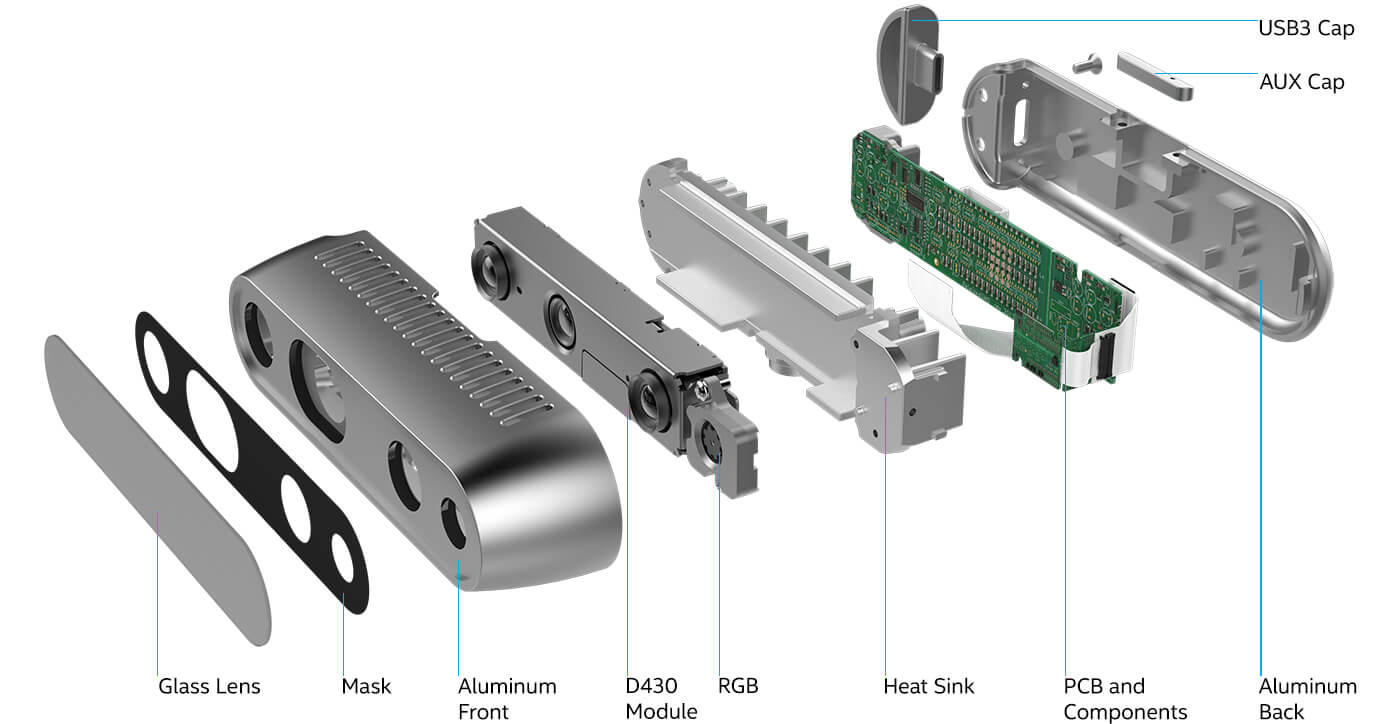

See Whats Inside
Get powerful image processing, depth perception, and more with the Intel
RealSense D400 series depth cameras.
Specifications
|
Features |
|
|
Use
environment |
Indoor/Outdoor |
|
.3
m to 3 m |
|
sensor technology |
Global
Shutter |
|
Depth |
|
|
Depth
technology |
Stereoscopic |
|
87 x 58 |
|
Minimum
depth distance |
Up to
1280 x 720 |
|
(MinZ)
at max resolution |
~28
cm |
|
Depth
frame rate |
Up to
90 fps |
|
Depth
Accuracy |
<2%
at 2 m1 |
|
RGB |
|
|
RGB
frame resolution |
1920 x 1080 |
|
69 x 42 |
|
RGB
frame rate |
30 fps |
|
2
MP |
|
RGB
sensor technology |
Rolling
Shutter |
|
Major
Components |
|
|
Camera
module |
Intel
RealSense Module D430 + RGB Camera |
|
Intel
RealSense Vision Processor D4 |
|
Physical |
|
|
Form
factor |
Camera
Peripheral |
|
USBC* 3.1
Gen 1* |
|
Length
x Depth x Height |
90 mm
x 25 mm x 25 mm |
|
One
1/420 UNC thread mounting point. |
|
Two
M3 thread mounting
points. |
