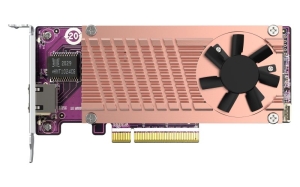

QNAP QM2-2P10G1TB 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE port
expansion card to enhance performance
Overview
The QM2-2P10G1TB allows you to easily add two M.2 NVMe SSDs and 10GbE RJ45
connectivity to your QNAP NAS. Compared with the SATA interface, the
QM2-2P10G1TB's PCIe Gen3 x 8 interface provides higher bandwidth to deliver
faster computing speed and data access.
The QM2-2P10G1TB features a 10GBASE-T Multi-Gigabit (10G/5G/2.5G/1G/100M)
network port to empower your QNAP NAS with 10GbE high-speed connectivity for
bandwidth-demanding tasks. With QNAP's various 10GbE switches, you can easily
upgrade to a high-speed network environment.
Specifications
Controller |
Marvell
AQC113C |
Connector |
2
x M.2 2280 PCIe (Gen3 x4) NVMe SSD slots |
PCIe
and Lanes |
PCIe
Gen3 x8 |
Bracket |
Low-profile
(default). Low-profile flat and Full-height brackets are also
included. |
Dimensions
(L x W x H) |
6.01
x 2.71 x 0.74 inch |
Form
factor |
Low-profile |
Cable |
RJ-45;
over CAT-6 class cable |
Note
[NAS] |
Recommended
models (please update your NAS to latest
version) |
Note:
The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the
System Zone PCIe slot (PCIe slot 1). |
Please
check the M.2 SSD compatibility list and QM2 Installation
Guide |
