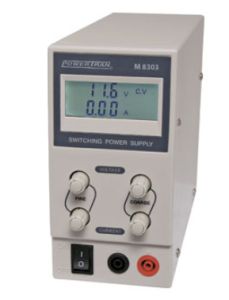

M8303 | Powertran 30V 3A Regulated Bench Top Power Supply

A compact, efficient bench top power supply for use in servicing, repair and design of electronics. The low noise switchmode design offers excellent regulation for low current requirements. Fine/coarse voltage and current controls allow you to set the desired settings quickly. Backlit LCD ensures a clear view. Includes croc clip to banana leads.

Features
Excellent regulation
Fine &coarse adjustments
Adjustable current limiting
Regulated variable output voltage
Digital LCD meter

Specifications:

Input voltage: a.c. 220-240V @ 50Hz
Output voltage: 0 - 30V d.c.
Output current max: 3A
Supply regulation: CV=1%+10mV
Load regulation: CV=1%+5mV
Ripple: 200mVp-p
Protection: Current limiting
Voltmeter: LCD ±1% +2 digits
Ammeter: LCD ±1% +2 digits
Temperature: 0ºC-40ºC
Humidity: Less than RH80%
Operating time: 8hrs
Dimensions: 85 x 160 x 205mm
*Specifications are subject to change without notice.
