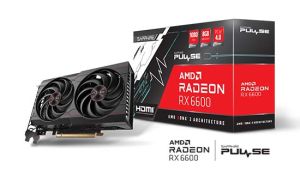

SAPPHIRE PULSE AMD Radeon RX 6600, 8GB, AMD RDNA 2 Video
Card
Overview
- GPU: Boost Clock: Up to 2491MHz
- Memory: 8GB/128 bit DDR6. 14 Gbps Effective
- Stream Processors: 1792
- RDNA 2 Architecture
- Ray Accelerator: 28
Specifications
|
GPU |
AMD
Radeon RX 6600 Graphics Card |
|
7nm
GPU |
|
AMD
RDNA 2 Architecture |
|
Engine
Clock |
Boost
Clock: Up to 2491 MHz |
|
Game
Clock: Up to 2044 MHz |
|
Boost
Clock is the maximum frequency achievable on the GPU running bursty
workload. Boost clock achievability, frequency, and sustainabilty will
vary based on several factors, including but not limited to: thermal
conditions and variation in application and
workloads. |
|
Game
Clock is the expected GPU clock when running typical gaming applications,
set to typical TGP(Total Graphics Power). Actual individual game clock
results may vary. |
|
Stream
Processors |
1792 |
|
Infinity
Cache |
32MB |
|
Ray
Accelerators |
28 |
|
Memory
Size/Bus |
8GB
GDDR6 |
|
Memory
Clock |
14
Gbps Effective |
|
Displays |
Maximum
4 Displays |
|
Resolution |
HDMI:
76804320 |
|
DisplayPort1.4:
76804320 |
|
Interface |
PCI-Express
4.0 |
|
Output |
1x
HDMI |
|
3x
DisplayPort |
|
BIOS
Support |
UEFI |
|
Game
Index |
1080P |
|
Sapphire
Features |
Premium
Digital Power Design |
|
Fuse
Protection |
|
Dual-X
Cooling Technology |
|
Intelligent
Fan Control |
|
Precision
Fan Control |
|
Metal
Backplate |
|
Two-Ball
Bearing Fans |
|
TriXX
Supported |
|
TriXX
Boost |
|
AMD
Features |
AMD
RDNA 2 Gaming Architecture |
|
DirectX
12 Ultimate |
|
Hardware
Raytracing |
|
Smart
Access Memory |
|
Infinity
Cache |
|
7nm
GPU |
|
PCI
Express 4.0 Support |
|
AMD
FreeSync Technology |
|
DisplayPort
1.4 with DSC |
|
HDMI |
|
Video
Streaming up to 8K |
|
Radeon
VR Ready Premium |
|
AMD
FidelityFX |
|
Radeon
Image Sharpening |
|
Radeon
Anti-Lag |
|
Radeon
Software |
|
Game
Driver Optimizations |
|
Cooling |
Dual
Fans |
|
Form
Factor |
2
slot, ATX |
|
Dimension:
193(L)X 120.05(W)X 40.05(H)mm |
|
Power
Consumption |
140W
(Board Power) |
|
OS |
Linux,
Windows 7*, Windows 10, and Windows 8.1. 64-bit operating
system required |
|
*Does
not support all features including but not limited to Hardware
Raytracing |
|
System
Requirement |
Minimum
500 Watt Power Supply |
|
1
x 8-pin Power Connector. |
|
PCI
Express based PC is required with one X16 lane graphics slot available on
the motherboard. |
|
Minimum
8GB of system memory. 16GB
recommended. |
