All stock codes associated to this product
OL2000ERTXL2U, CP89122A, CPOL2000ERTXL2U, 2348321, 4712364142994

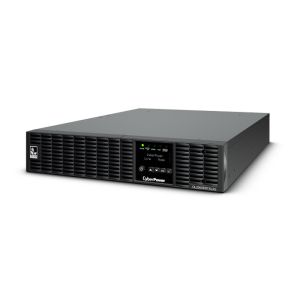

CyberPower Smart App Online OL2000ERTXL2U Dual Conversion Online UPS - 2 kVA/1.80 kW - 2U Rack/Tower - 4 Hour Recharge - 4 Minute Stand-by - 110 V AC, 220 V AC Input - 240 V AC, 240 V AC Output - 1 x IEC 60320 C19, 8 x IEC 60320 C13
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Management
| Network Management | SNMP/HTTP Remote Monitoring |
Interfaces/Ports
Warranty
| Additional Warranty Information | 3 years advanced replacement warranty on product and 2 years on internal batteries |
| Limited Warranty | 3 Year |
Miscellaneous
| Package Contents | - Smart App Online OL2000ERTXL2U 2000VA Tower/Rack Mountable UPS
- PowerPanel Business Edition Software CD
|
| Software Included | PowerPanel Business Edition Software |
| Certifications &Standards | CE |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Physical Characteristics
| Weight (Approximate) | 30 kg |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 88 mm |
| Width | 433 mm |
| Depth | 600 mm |
General Information
| Product Type | Dual Conversion Online UPS |
| Manufacturer Part Number | OL2000ERTXL2U |
| Manufacturer Website Address | https://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | OL2000ERTXL2U |
| Product Name | Smart App Online OL2000ERTXL2U 2000VA Tower/Rack Mountable UPS |
| Product Line | Smart App Online |
| Brand Name | CyberPower |
Battery Information
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Hot Swappable | Yes |
| Number of Batteries | 6 |
| Backup/Run Time (Half Load) | 11 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 4 Hour |
Power Description
| Input Voltage | 220 V AC |
| 110 V AC |
| Output Voltage | 208 V AC |
| 230 V AC |
| 240 V AC |
| 220 V AC |
| Load Capacity | 2 kVA/1.80 kW |
Technical Information
| Dataline Protection | RJ-45 |
| RJ-11 |
| Emergency Power OFF | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 |
| Transfer Time | 0 ns |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 1 x IEC 60320 C19 |
