All stock codes associated to this product
OLS3000ERT2UA, OLS3000ERT2Ua, CP89083A, 4682759, CPOLS3000ERT2UA

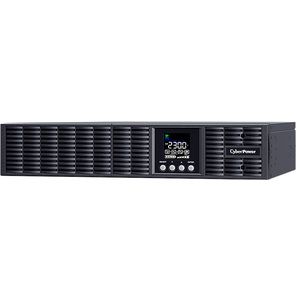

CyberPower Online S OLS3000ERT2UA Dual Conversion Online UPS - 3 kVA/2.70 kW - 2U Rack/Tower - 4 Hour Recharge - 4.30 Minute Stand-by - 230 V AC Input - 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 1 x IEC 60320 C19, 8 x IEC 60320 C13
CyberPowerOLS1000ERT2UAis a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
Controls/Indicators
Status Indicators | LCD: - Operation Type
- Power Status
- Battery Status
- Load Status
- Fault &Warning
- Other Information
- Event &Log
|
Miscellaneous
Environmentally Friendly | Yes |
Interfaces/Ports
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Environmental Conditions
Sound Emission | 49 dB(A) |
Thermal Dissipation | 911 BTU/h |
Maximum Operating Temperature | 40°C |
Maximum Operating Elevation | 1.50 km |
Maximum Storage Elevation | 1.50 km |
Storage Relative Humidity | 10% - 90% |
Storage Temperature | -20°C - 50°C |
Physical Characteristics
Weight (Approximate) | 27.60 kg |
Colour | Black |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 87.9 mm |
Width | 437.9 mm |
Depth | 614.7 mm |
Technical Information
Application/Usage | Transportation |
Emergency System |
Network Storage Device |
DVR |
Surveillance System |
Office |
Server |
Data Center |
Mission Critical Equipment |
Dataline Protection | RJ-11/RJ-45 |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C20 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C19 |
IEC 60320 C13 |
EMI/RFI Noise Filter | Yes |
Energy Saving | Online ECO Mode Efficiency > 95% |
Number of Battery &Surge Outlets | 9 |
Number of Critical Load Outlets | 5 |
Transfer Time | 0 ns |
Receptacle Detail | 8 x IEC 60320 C13 |
1 x IEC 60320 C19 |
General Information
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | OLS3000ERT2UA |
Manufacturer Website Address | https://www.cyberpower.com/au |
Manufacturer | CyberPower Systems, Inc |
Product Model | OLS3000ERT2UA |
Product Name | Online S OLS3000ERT2UA 3kVA Rack/Tower UPS |
Product Line | Online S |
Brand Name | CyberPower |
Management
Network Management | SNMP/HTTP Remote Monitoring |
Alarm | UPS Fault |
Overheat |
Overload |
Over-charge |
Replace Battery |
Low Battery |
Battery Mode |
Battery Information
Battery Chemistry | Lead Acid |
Battery Size | 12V |
Battery Capacity | 9000 mAh |
Backup/Run Time (Half Load) | 13.80 Minute |
Backup/Run Time (Full Load) | 4.30 Minute |
Battery Characteristics | Sealed |
Replaceable Battery | Yes |
DC System Voltage | 72 V DC |
Typical Battery Recharge Time | 4 Hour |
Power Description
Input Voltage | 230 V AC |
Output Voltage | 208 V AC |
240 V AC |
220 V AC |
230 V AC |
Load Capacity | 3 kVA/2.70 kW |
Surge Energy Rating | 388 J |
Waveform Type | Pure Sine Wave |
Input Voltage Range | 190 V AC - 300 V AC |
Output Frequency | 60 Hz |
Input Frequency | 60 Hz |
