GP-UD750GM | Gigabyte 750W Power Supply - ATX 12V v2.31, 120mm Fan, 80PLUS Gold

for PC hardware - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Power Supplies -> 700W - 799W -> Gigabyte

Gigabyte 750W Power Supply - ATX 12V v2.31, 120mm Fan, 80PLUS Gold
Hydraulic Bearing, Active PFC, Flat, All Black, SATA(8), PCI-e 6+2 Pin x 4(2), CPU/EPS 4+4 Pin x 2(2)

Our Price:

$153.05

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

511791

(?) Brand:

Gigabyte Web Site

Manuf No:

GP-UD750GM
GPUD750GM

Shipping Weight:

3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

GPUD750GM, GP-UD750GM, PSGUD750GM, PSG-UD750GM, 4719331552688, II351034

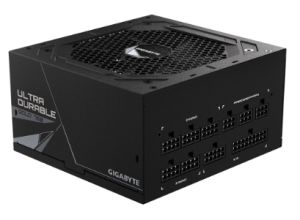

Gigabyte UD750GM 750W Power Supply

KEY FEATURE

Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact design
5 years warranty (Adjusted according to different regions)

Specifications

Model	GP-UD750GM
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	12-6A
Input Frequency	60-50 Hz
Output Capacity	750W
Dimension	150 x 140 x 86 mm
Fan Type	120mm Hydraulic Bearing(HYB)fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-150ms
Hold Up Time	>16ms
Cable Type	Flat, All black
Connectors	ATX/MB 20+4 Pin x 1 : 610mm*1
	CPU/EPS 4+4 Pin x 2 : 600mm*2
	PCI-e 6+2 Pin x 4 : 600mm+150mm*2
	SATA x 8 :
	600mm+150mm+150mm+150mm*2
	4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 months*

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
