All stock codes associated to this product
243B1, 13PH243B1, 13PH-243B1, 5064665, 243B1 , 4712721774523, 8712581774523

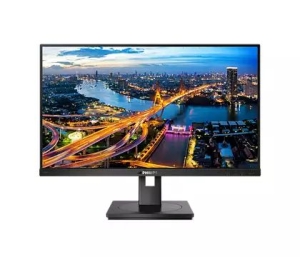

Philips 243B1/27 LCD Monitor with USB-C
Overview
- Connect your notebook with one USB-C cable
- Power and re-charge compatible notebook from the monitor
- TUV Eye Comfort certified to reduce eye fatigue
- Less eye fatigue with Flicker-free technology
- LowBlue Mode for easy on-the-eyes productivity
Connect your notebook with one USB-C cable
This Philips display features a USB type-C connector with power delivery.
With intelligent and flexible power management, you can power charge your
compatible device directly. Its slim, reversible USB-C allows for easy,
one-cable connection. You can watch high resolution video and transfer data at a
super-speed, while powering up and re-charging your compatible device at the
same time.
TUV Eye Comfort certified to reduce eye
fatigue
Philips display meet TUV Rheinland Eye Comfort standard to prevent eye strain
caused by prolonged computer use. With TUV Eye Comfort certification, Philips
displays ensure flicker-free, low blue mode, no disturbing reflections, wide
viewing angle and less reduction of image quality from different angles and
ergonomic stand designs for ideal viewing experience. Keep your eyes healthy and
boost work productivity.
Less eye fatigue with Flicker-free technology
Due to the way brightness is controlled on LED-backlit screens, some users
experience flicker on their screen which causes eye fatigue. Philips
Flicker-free Technology applies a new solution to regulate brightness and reduce
flicker for more comfortable viewing.
LowBlue Mode for easy on-the-eyes
productivity
Studies have shown that just as ultra-violet rays can cause eye damage,
shortwave length blue light rays from LED displays can cause eye damage and
affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce harmful shortwave blue light.
HDMI ensures universal digital connectivity
An HDMI-ready device has all the required hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI cable enables high-quality digital
video and audio all transmitted over a single cable from a PC or any number of
AV sources (including set-top boxes, DVD players, A/V receivers and video
cameras).
SmartErgoBase enables people-friendly ergonomic
adjustments
The SmartErgoBase is a monitor base that delivers ergonomic display comfort
and provides cable management. The base can swivel, tilt and rotate to various
angles to ensure maximum comfort. The height adjustable stand guarantees the
optimal viewing level, reducing the physical strains of a long workday, while
cable management reduces cable clutter and keeps the workspace neat and
professional.
Built-in stereo speakers for multimedia
A pair of high quality stereo speakers built into a display device. It can be
visible front firing, or invisible down firing, top firing, rear firing, etc
depending on model and design.
PowerSensor saves up to 70% energy costs
PowerSensor is a built-in 'people sensor' that transmits and receives
harmless infrared signals to determine if user is present and automatically
reduces monitor brightness when user steps away from the desk, cutting energy
costs by up to 70 percent and prolonging monitor life.
LightSensor for the perfect brightness with minimal
power
LightSensor uses a smart sensor to adjust the picture brightness depending on
the room light conditions for the perfect picture with minimal power usage.
DisplayPort connection for maximum visuals
DisplayPort is a digital link from PC to Monitor without any conversion. With
higher capabilities than DVI standard, it is fully capable to support up to
15meter cables and 10.8 Gbps/sec data transfer. With this high performance and
zero latency, you get the fastest imaging and refresh rates - making DisplayPort
the best choice for not only general office or home use, but also for the
demanding gaming and movies, video editing and more. It also keeps
interoperability in mind via use of various adapters.
Power and re-charge compatible notebook from the
monitor
This monitor features a built in USB-C connector which meets USB Power
Delivery standard. With intelligent and flexible power management, you can now
power up and or re-charge your compatible* Notebook directly from the Monitor
using a single USB-C cable.
Designed to meet environmental standards
Designed for sustainability, and reduced operating costs, this monitor meets
environmental standards. Such as: ENERGY STAR, EPEAT, TCO Certified. For more
information on certification, please visit: ENERGY STAR:
https://www.energystar.gov/ EPEAT: https://www.epeat.net/ TCO Certified:
https://tcocertified.com/
Specifications
|
Picture/Display |
|
|
LCD
panel type |
IPS
technology |
|
Backlight
type |
W-LED
system |
|
Panel
Size |
23.8
inch / 60.5 cm |
|
Display
Screen Coating |
Anti-Glare,
3H, Haze 25% |
|
Effective
viewing area |
527.04
(H) x 296.46 (V) |
|
Aspect
ratio |
16:09 |
|
Maximum
resolution |
1920
x 1080 @ 75 Hz* |
|
Pixel
Density |
93
PPI |
|
Response
time (typical) |
4
ms (Gray to Gray)* |
|
Brightness |
250
cd/m |
|
Contrast
ratio (typical) |
1000:01:00 |
|
SmartContrast |
50,000,000:1 |
|
Pixel
pitch |
0.2745
x 0.2745 mm |
|
Viewing
angle |
178
(H) / 178 (V) |
|
@
C/R > 10 |
|
Flicker-free |
Yes |
|
enhancement |
SmartImage |
|
Color
gamut (typical) |
NTSC
91%*, sRGB 107%* |
|
Display
colors |
16.7M |
|
Scanning
Frequency |
30
- 85 kHz (H) / 48 - 75 Hz (V) |
|
sRGB |
Yes |
|
EasyRead |
Yes |
|
LowBlue
Mode |
Yes |
|
Connectivity |
|
|
Signal
Input |
DisplayPort
1.4 x 1, HDMI 1.4 x 1, USB-C 3.2 Gen 2 x 1 (upstream, power delivery up to
90 W) |
|
HDCP |
HDCP
1.4 (HDMI/DP/USB-C) |
|
HBR3 |
Yes |
|
Signal
Output |
DisplayPort
out* (DP / USB-C) |
|
USB: |
USB
3.2 Gen 2 x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C
1.2) |
|
Audio
(In/Out) |
Audio
out |
|
RJ45 |
Ethernet
LAN up to 1G*, Wake On Lan |
|
Sync
Input |
Separate
Sync |
|
USB |
|
|
USB-C |
Reversible
plug connector |
|
Super
speed |
Data
and Video transfer |
|
DP |
Built-in
Display Port Alt mode |
|
Power
delivery |
USB
PD version 3.0 |
|
USB-C
max. power delivery |
Up
to 90W (5V/3A; 7V/3A; 9V/3A; 10V/3A; 12V/3A; 15V/3A;
20V/4.5A) |
|
Convenience |
|
|
Built-in
Speakers |
2
W x 2 |
|
User
convenience |
SmartImage |
|
Input |
|
PowerSensor |
|
Menu |
|
Power
On/Off |
|
Control
software |
SmartControl |
|
OSD
Languages |
Brazil
Portuguese |
|
Czech |
|
Dutch |
|
English |
|
Finnish |
|
French |
|
German |
|
Greek |
|
Hungarian |
|
Italian |
|
Japanese |
|
Korean |
|
Polish |
|
Portuguese |
|
Russian |
|
Simplified
Chinese |
|
Spanish |
|
Swedish |
|
Traditional
Chinese |
|
Turkish |
|
Ukranian |
|
Other
convenience |
Kensington
lock |
|
VESA
mount (100x100mm) |
|
Plug
& Play Compatibility |
DDC/CI |
|
Mac
OS X |
|
sRGB |
|
Windows
10 / 8.1 / 8 / 7 |
|
Stand |
|
|
Height
adjustment |
150
mm |
|
Pivot |
-/+
90 degree |
|
Swivel |
-/+
180 degree |
|
Tilt |
-5
~ 35 degree |
|
Power |
|
|
ECO
mode |
12.6
W (typ.) |
|
On
mode |
15.2
W (typ.) (EnergyStar test method) |
|
Standby
mode |
<
0.5 W (typ.) |
|
Off
mode |
Zero
watts with Zero switch |
|
Power
LED indicator |
Operation
- White |
|
Standby
mode- White (blinking) |
|
Power
supply |
Built-in |
|
100-240VAC,
50-60Hz |
|
Dimensions |
|
|
Product
with stand(max height) |
540
x 501 x 205 mm |
|
Product
with stand(max height) |
21.3
x 19.7 x 8.1 inch |
|
Product
without stand (mm) |
540
x 323 x 51 mm |
|
Product
without stand in inch |
21.3
x 12.7 x 2.0 inch |
|
Packaging
in mm (WxHxD) |
730
x 450 x 139 mm |
|
Packaging
in inch (WxHxD) |
28.7
x 17.7 x 5.5 inch |
|
Weight |
|
|
Product
with stand (kg) |
4.98
kg |
|
Product
with stand (lb) |
10.96
lb |
|
Product
without stand (kg) |
3.40
kg |
|
Product
without stand (lb) |
7.48
lb |
|
Product
with packaging (kg) |
7.66
kg |
|
Product
with packaging (lb) |
16.85
lb |
|
Operating
conditions |
|
|
Temperature
range (operation) |
0C
to 40C C |
|
Temperature
range (storage) |
-20C
to 60C C |
|
Relative
humidity |
20%-80
% |
|
Altitude |
Operation:
+12,000ft (3,658m), Non-operation: +40,000ft
(12,192m) |
|
MTBF
(demonstrated) |
70,000
hrs (excluded backlight) |
|
Sustainability |
|
|
Environmental
and energy |
PowerSensor |
|
LightSensor |
|
EnergyStar
8.0 |
|
EPEAT* |
|
RoHS |
|
TCO
Certified Edge |
|
WEEE |
|
Recyclable
packaging material |
100
% |
|
Post
consumer recycled plastic |
85% |
|
Specific
Substances |
PVC
/ BFR free housing |
|
Mercury
free |
|
Compliance
and standards |
|
|
Regulatory
Approvals |
CE
Mark |
|
FCC
Class B |
|
SEMKO |
|
CU-EAC |
|
EAEU
RoHS |
|
TUV/GS |
|
TUV
Ergo |
|
UKRAINIAN |
|
ICES-003 |
|
CB |
|
TUV
Eye Comfort certified |
|
Cabinet |
|
|
Front
bezel |
Black |
|
Rear
cover |
Black |
|
Foot |
Black |
|
Finish |
Texture |
|
What's
in the box? |
|
|
Monitor
with stand |
Yes |
|
Cables |
HDMI
cable, DP cable, USB-C/A Y cable, Power cable |
|
User
Documentation |
Yes |
