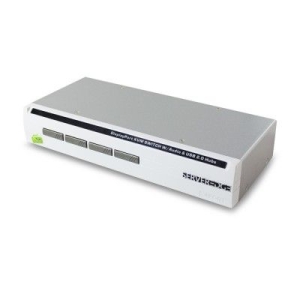

KD04UDPH2V2 | Serveredge 4-Port USB / DisplayPort Desktop KVM Switch With Audio

SERVEREDGE 4-PORT USB / DISPLAYPORT DESKTOP KVM SWITCH WITH AUDIO & USB HUB 2.0 - INCLUDES CABLES

Overview

The Serveredge 4-Port USB / DisplayPort Desktop KVM Switch With Audio & USB Hub 2. (includes cables)

• Support USB console
• 4 computers share 4 different USB peripherals ( KB + MS + USB 2. Devices)
• Support Audio (Speaker + Mic) function
• Supports hot plug and un-plug detection and link status-failure detection
• Unique Tracking System enable the USB devices to operate independently
• Front panel push buttons for easy computer selection
• Selectable Scan Time interval
• Buzzer sound for computer switching confirmation
• Hotkey functions allow easily computer access
• Supports keyboard and mouse plug-n-play
• Supports existing VESA and Consumer Electronics Association (CEA) standards\
• Screw-free design ,streamlined form factor for new all digital desktop monitors
• All digital Direct Drive monitors connected with DisplayPort require no adjustment
• Complete interoperability
• Supports 7.1 Channel High Definition Audio
• No drivers needed; No software required
• Support Windows and Mac host systems
• Warranty : 1 YearSupport USB console

Specifications

• Console Port : 1
• Computer Port : 4
• Front Panel Push Button : 5
• Automatic Scan Interval : 3, 8, 15, 30 Seconds
• Cable Length (Max) : 3M (10ft) for USB
• Computer ON-LINE LED : 4
• Computer Selected LED : 4
• Hot Plug-and-Play : Yes
• Console Interface :
• - USB Port : 4 (KB+MS+Extra USB 2.0)
• - KB : USB
• - MS : USB
• - Monitor : DisplayPort
• - Audio Jack (Speaker+Mic) : 1 Set
• Computer Interface :
• - KB : USB
• - MS : USB
• - Monitor : DisplayPort
• - Audio Jack (Speaker+Mic) : 1 Set
• Hotkey : Yes
• OSD : No
• Resolution : 2560 x 1600
• DDC2B : Yes
• H x W x D (mm) : 44 x 220 x 130
