All stock codes associated to this product
F162000, F16-2000, II32923, 31IONF162000, 31ION-F16-2000

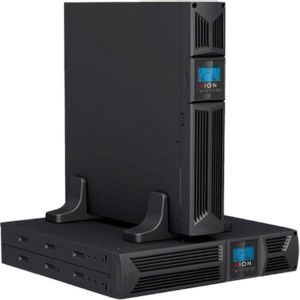

ION F16 2000VA Rack/Tower UPS
Overview
The ION F16 Rack/Tower UPS provides line-interactive backup high power factor
power and scalable runtimes for servers, storage systems, VoIP gear and network
equipment.
With an intuitive LCD display, outlet groups, and high efficiency, the F16 is
the affordable way for businesses to flexibly integrate reliable power supply
and protect vital IT and Telecom equipment.
FEATURES
- Rotatable LCD Display
- Expandable batteries extending backup and run time
- High Frequency
- 0.9 Output Power Factor
- Pure Sine Wave Output
- Output THDV <3%
- Easy Battery Replacement
- Rack or Tower convertible
- Extended Run Time
- Power Management Software
- Optional SNMP and Relay Card
- Self-Monitoring and Fault Diagnosis
- EPO Connector
PERFECT FOR
- Computer Server Rooms
- Data Centres
- Telecommunications equipment
PROTECTION FOR
- Switches, Servers and Routers
- Core Networking
- Wireless devices
- Security systems
- Storage systems
- PBX, VoIP, EDGE/3G/Wimax
Specifications
|
Output |
|
Output
Power Capacity |
1800Watts
/ 2000VA |
|
Max
Configurable Power (Watts) |
1800Watts
/ 2000VA |
|
Nominal
Output Voltage |
Variable
220 240VAC |
|
Voltage
Regulation |
Less
than 5% |
|
Frequency |
50Hz
5Hz |
|
Frequency
(BAT Mode) |
50Hz
0.1Hz |
|
Topology |
Line
Interactive |
|
Waveform
Type |
Pure
Sine Wave |
|
Output
Connections |
IEC
C13 (8) |
|
Transfer
Time |
2-4ms
typical |
|
Input |
|
Nominal
Input Voltage |
Variable
161 276VAC |
|
Input
Frequency Range |
50Hz
5Hz |
|
Input
Connections |
IEC-320
C14 |
|
Overload
Capacity |
|
Line
Mode |
110%
10%, Fault after 3 Minutes; 150% 10%, Fault after
200ms |
|
Battery
Mode |
110
% 10%, Fault after 30 Seconds; 120 % 10 %, Fault after
100ms |
|
Efficiency |
|
Line
Mode |
>
96% at Full Load and Battery Fully Charged |
|
Battery
Mode |
>
86% at Full Load |
|
UPS
Batteries |
|
Battery
type |
Maintenance-free
sealed Lead-Acid battery with suspended electrolyte :
leakproof |
|
Typical
Recharge Time |
3-6
hour(s) |
|
Expected
Battery Life (years) |
3-
5 years |
|
Extendable
Run Time |
Yes |
|
Communications
& Management |
|
Interface
Port(s) |
RS232
/ USB / EPO |
|
Communications
Card Slot |
Optional
SNMP /AS400 Card |
|
Control
panel |
Load
/ Battery / Input / Output / Operating Mode
Information |
|
Audible
Alarm |
Yes |
|
UPS
Dimensions |
F16-2000 |
|
RU |
2 |
|
Maximum
Height |
86mm |
|
Maximum
Width |
440mm |
|
Maximum
Depth |
605mm |
|
Net
Weight |
34kg |
|
Colour |
Black |
|
EBM
Dimensions |
FEBM-720 |
|
RU |
2 |
|
Maximum
Height |
86mm |
|
Maximum
Width |
440mm |
|
Maximum
Depth |
605mm |
|
Net
Weight |
34kg |
|
Colour |
Black |
|
Environmental |
|
Operating
Environment |
0
40 C |
|
Operating
Relative Humidity |
0
95 % |
|
Operating
Elevation |
0-3000meters |
|
Storage
Temperature |
-15
45 C |
|
Storage
Relative Humidity |
0
95 % |
|
Storage
Elevation |
0-15000
meters |
|
Audible
Noise at 1 meter from surface of unit |
40.0dBA |
|
Conformance |
|
Approvals |
CE |
|
Standard
warranty |
3
Year Advance Replacement* |
