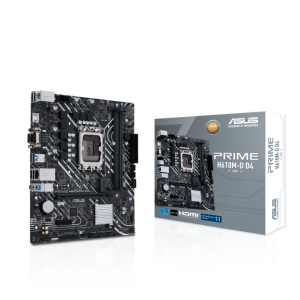

ASUS PRIME H610M-D D4-CSM Motherboard
LGA1700, Intel H610, DDR4, SATA 6Gb/s(4), M.2, USB3.2(3), USB2.0(5), D-Sub, HDMI, mATX

Our Price:

$148.95

RRP:

~~$169.00~~

You Save:

$20.05

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

516355

(?) Brand:

ASUS Web Site

Manuf No:

PRIME H610M-D D4-CSM
PRIME H610MD D4CSM

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

PRIME H610MD D4CSM, PRIME H610M-D D4-CSM, MBAH610MPDD4CSM, MBA-H610M-PD-D4CSM, II354742, 4711081540519

Asus PRIME H610M-D D4-CSM Motherboard

Overview

Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header

Intel LGA 1700 socket: Ready for 12th Gen Intel processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Control Center Express (ACCE) for easier IT endpoint management

Specifications

CPU	Intel Socket LGA1700 for 12^th Gen Intel Core, Pentium Gold and Celeron Processors*
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H610 Chipset
Memory	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x D-Sub port
	1 x HDMI port**
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel 12^th Gen Processors
	1 x PCIe 4.0 x16 slot
	Intel H610 Chipset
	1 x PCIe 3.0 x1 slot
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
	Intel H610 Chipset
	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 4 ports)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x D-Sub port
	1 x HDMI port
	1 x Realtek 1Gb Ethernet port
	3 x Audio jacks
	1 x COM port
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin Chassis Fan header
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	Storage related
	1 x M.2 slot (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	1 x USB 2.0 header supports additional 2 USB 2.0 ports
	Miscellaneous
	1 x RGB header
	1 x Clear CMOS header
	1 x Front Panel Audio header (AAFP)
	1 x LPT header
	1 x S/PDIF Out header
	1 x Speaker header
	1 x SPI TPM header (14-1pin)
	1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM
	- LANGuard
	- Overvoltage Protection
	- SafeSlot Core
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-Slot
	ASUS Thermal Solution
	- Aluminum heatsink design
	ASUS Lighting Control
	- RGB header
Software Features	ASUS Exclusive Software
	Armoury Crate
	AI Suite 3
	- Performance And Power Saving Utility
	TurboV EVO
	EPU
	DIGI+ VRM
	Fan Xpert
	ASUS CPU-Z
	IT Management software supported
	- ASUS Control Center Express(ACCE)
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	1 x M.2 ANCHOR
	Installation Media
	1 x Support DVD
	Documentation
	1 x ACC Express Activation Key Card
	1 x User Guide
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	mATX Form Factor
	9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 Year

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
