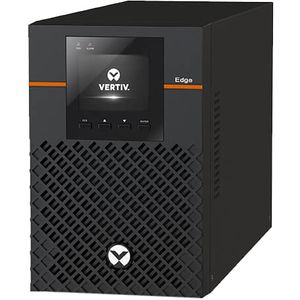

Vertiv EDGE UPS 1.5kVA 230V Tower
EDGE UPS - Mini Tower - 1000VA/900W - Line Interactive - 0.9 Power Factor - 6 x C13 - 3 Year Warranty
Reliable UPS Protection At The All-Important Network EdgeThe network edge is becoming increasingly important as companies seek to take advantage of Internet of Things, cloud computing and other applications that require localized compute power, networking services and data storage | all with low latency. Distributed and edge data centers are now no less important to business success than large centralized data centers, so must be afforded similar power protection.
The Vertiv EDGE line interactive UPS family is intended for distributed IT and edge applications that require reliable, efficient power protection for server and networking equipment. It comes in mini-tower, rack tower and rack-mount form factors, with capacities ranging from 500VA to 3000VA. Each model has a 0.9 output power factor (PF), enabling them to protect larger loads than competing models of the same capacity.
Vertiv EDGE UPSs support up to 6 extended-run battery cabinets (EBCs), providing more runtime at full load than comparable competing UPSs. Auto-detect features make the EBCs easy to add and configure.
Vertiv EDGE UPSs are also highly manageable, with a colorful, graphical LCD screen for easy, intuitive on-site management, as well as optional SNMP support. Vertiv EDGE is compatible with the free Vertiv Power Assist software for local UPS status and shutdown of IT loads connected locally.
A standard 2-year warranty for both electronics and batteries protects your UPS investment.
More from the Manufacturer
Features- 1000VA UPS with advanced AVR for a more stable output voltage regulation
- This line interactive UPS has 0.9 output power factor ensuring more active power to protect larger loads
- Plug and play battery backup does not need installation or rack space
- Add a communication card to this single phase UPS to manage devices remotely
- Get 5 total outlets with 2 programmable outlets to prioritize critical loads and achieve longer runtime
Management
| Network Management | SNMP/Webcard |
Interfaces/Ports
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Software Included | Power Assist |
| Environmentally Friendly | Yes |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| Storage Temperature | -25°C - 55°C |
Physical Characteristics
| Weight (Approximate) | 12 kg |
| Form Factor | Tower |
| Rack Height | 1U |
| Height | 220 mm |
| Width | 145 mm |
| Depth | 370 mm |
Technical Information
| Application/Usage | Critical System |
| Data Center |
| Data Storage |
| Business |
| Network |
| IOT Device |
| Server |
| IT Equipment |
| Edge Computing |
| Electronic |
| Plug/Connector Type | IEC 60320 C14 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| AVR | Yes |
| Transfer Time | 6 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | EDGE-1000IMT |
| Manufacturer Website Address | https://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | EDGE-1000IMT |
| Product Name | EDGE-1000IMT 1kVA Tower UPS |
| Product Line | EDGE |
| Brand Name | VERTIV |
Battery Information
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 10000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 15 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Typical Battery Recharge Time | 3 Hour |
| Number of External Battery Cabinets | 6 |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 200 V AC |
| 230 V AC |
| 208 V AC |
| 240 V AC |
| Load Capacity | 1 kVA/900 W |
| Surge Energy Rating | 624 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 166 V AC - 278 V AC |
| Input Frequency | 65 Hz |
