All stock codes associated to this product
SV211KUSB, 2902541

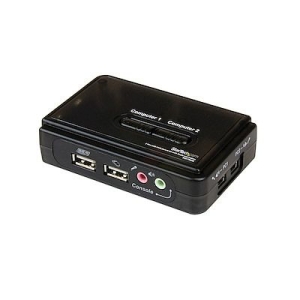

Startech 2 Port Black USB KVM Switch Kit with Audio and
Cables
Overview
- Cables (4 ft.) included
- Maximum resolution: 2048 x 1536
- Switching type: Hotkey, push-button
- Includes audio support for a complete switching solution
- Small footprint design
- USB Powered - No external adapter required
The SV211KUSB 2 Port USB KVM Switch Kit with Audio and Cables lets you
control two USB-enabled computers using a single keyboard, mouse and VGA monitor
and offers both hotkey and top panel push-button operation for simple switching
between connected computers.
Designed to integrate seamlessly into any environment, the USB KVM switch
offers a small footprint design (roughly the size of a deck of playing cards)
and draws power from the connected computers, so it doesn't require an external
power supply.
A suitable solution for virtually any application, the USB KVM switch
supports video resolutions of up to 2048 x 1536 as well as audio switching. The
USB KVM switch includes two 4ft 2-in-1 VGA and USB Host Cables, providing
everything needed for quick installation to provide a complete, out-of-the-box
KVM solution.
Specifications
|
Warranty
Information |
|
|
Warranty |
2
Years |
|
Connector(s) |
|
|
Console
Interface(s) |
2
- USB 2.0 Type-A (4 pin, 480Mbps) |
|
1
- VGA (15 pin, High Density D-Sub) |
|
2
- 3.5 mm Mini-Jack (3 Position) |
|
Host
Connectors |
2
- VGA (15 pin, High Density D-Sub) |
|
2
- USB Mini-B (5 pin) |
|
Hardware |
|
|
Audio |
Yes |
|
KVM
Ports |
2 |
|
PC
Interface |
USB |
|
PC
Video Type |
VGA |
|
Number
of Monitors Supported |
1 |
|
Rack-Mountable |
No |
|
Cables
Included |
Yes |
|
Daisy-Chain |
No |
|
Packaging
Information |
|
|
Package
Height |
87
mm [3.4 in] |
|
Package
Length |
21.7
cm [8.5 in] |
|
Shipping
(Package) Weight |
642
g [22.7 oz] |
|
Package
Width |
89
mm [3.5 in] |
|
Performance |
|
|
On-Screen
Display |
No |
|
IP
Control |
No |
|
Hot-Key
Selection |
Yes |
|
Maximum
Analog Resolutions |
2048x1536
@60Hz |
|
Maximum
Number of Users |
1 |
|
Port
Selection Support |
Push
Button and Hotkeys |
|
Physical
Characteristics |
|
|
Product
Length |
9.7
cm [3.8 in] |
|
Weight
of Product |
94
g [3.3 oz] |
|
Color |
Black |
|
Material |
Plastic |
|
Cable
Length |
1.2
m [4.0 ft] |
|
Product
Width |
96
mm [3.8 in] |
|
Product
Height |
2
cm [0.8 in] |
|
Product
Depth |
60
mm [2.4 in] |
|
Power |
|
|
Power
Source |
USB-Powered |
|
Software |
|
|
OS
Compatibility |
OS
independent; No software or drivers required |
|
What's
in the Box |
|
|
Included
in Package |
1
- 2 Port KVM Switch |
|
2
- 4ft. VGA USB KVM Cable |
|
2
- 4ft. Audio Cable (3.5mm speaker/mic) |
|
1
- Driver CD |
|
1
- Instruction Manual |
